11. Brake System

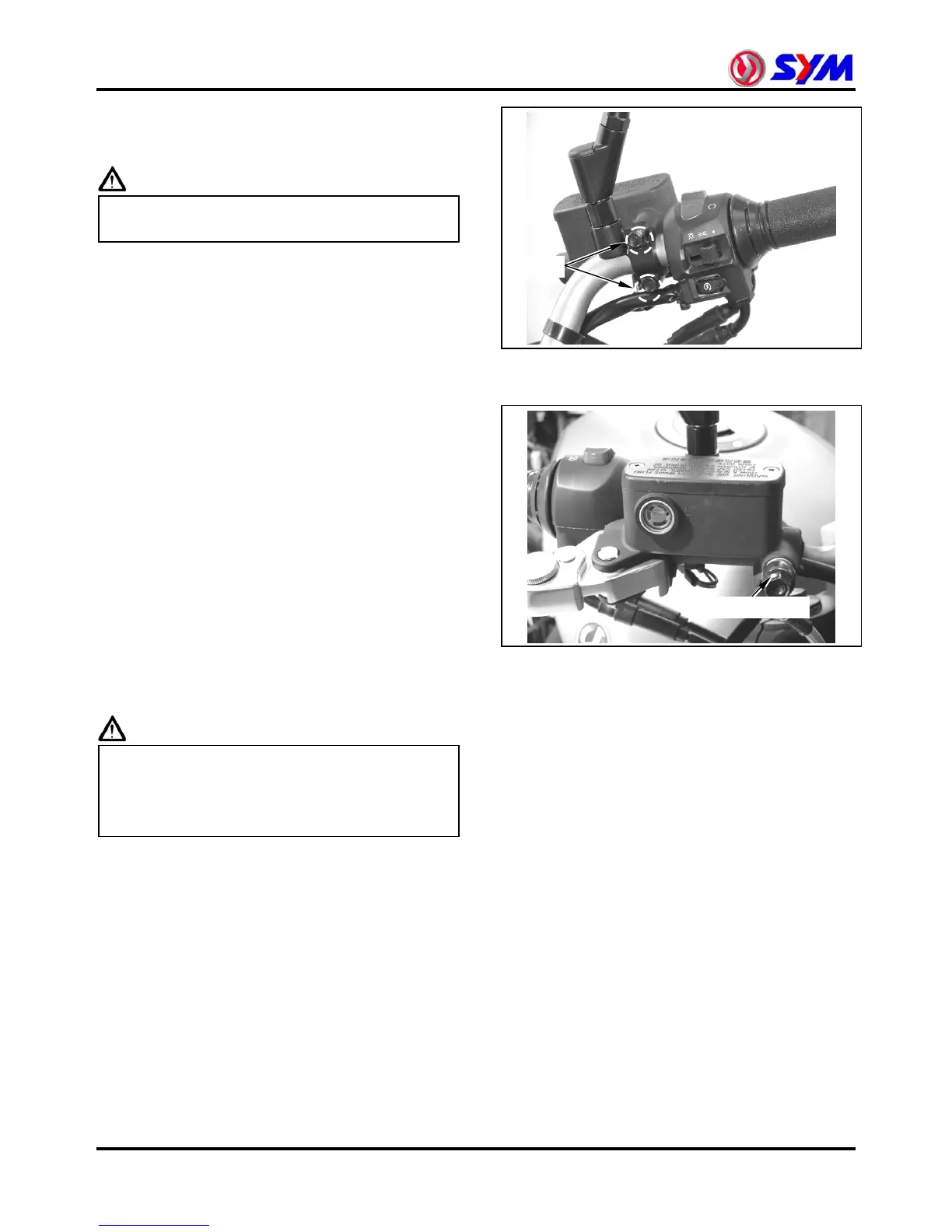

Brake master cylinder
Removal
Caution
Do not let foreign materials entering the
cylinder.
bolt×2
Remove back mirror.
Disconnect brake light coupler.
Drain brake fluid.
Remove the brake lever from brake master
cylinder.
Remove brake hose.
Remove brake master cylinder from handlebar. (bolt×2)。
Clean the master cylinder with recommended
brake fluid.
Brake hose bolt
Installation
Install brake master cylinder on handle bar,
tighten bolts. (bolt×2)。
Torque value: 0.8~1.2kgf-m
Install brake lever, connect brake light coupler.
Apply 2 new seal washers, install brake hose.
Tighten the brake hose bolt to the specified
torque value.
Torque value: 3.0~4.0kgf-m
Make sure the hose is installed correctly.
Caution
Improper routing may damage the hose
and wire.
Twisted brake hose and wire may reduce
brake performance.
Add specified brake fluid and bleed the system.
11-10
