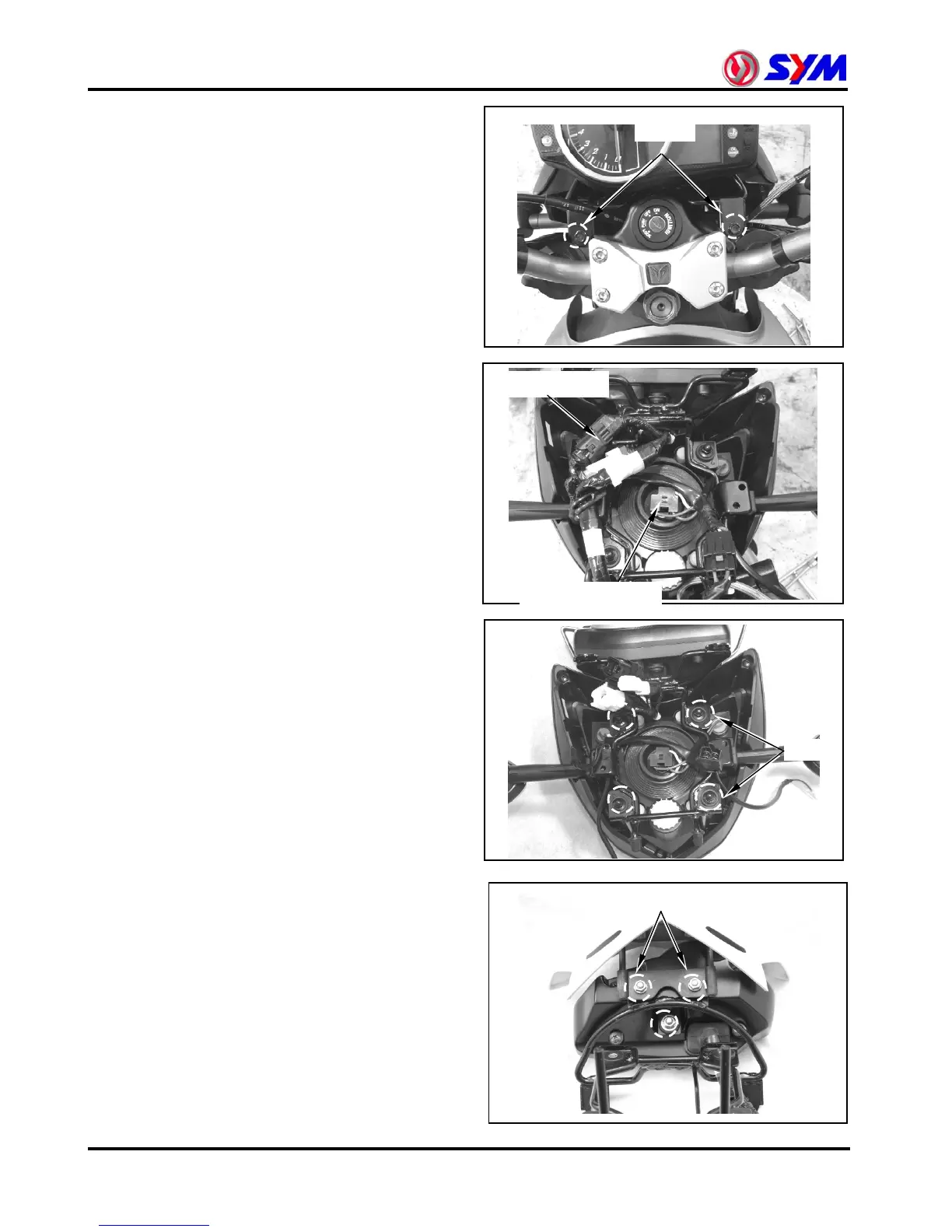

14. Electrical system
Meter
bolt×2
Removal
Remove the headlight / meter (bolt x2).
14-16
Disconnect the headlight / meter coupler
.
Remove the headlight locknuts. (nut×4)
Remove the meter locknuts. (nut×3)
Remove the meter
.
Inst
allation
Install in the reverse order of removal.
Meter coupler
Headlight coup
ler
nut×4
nut×3
