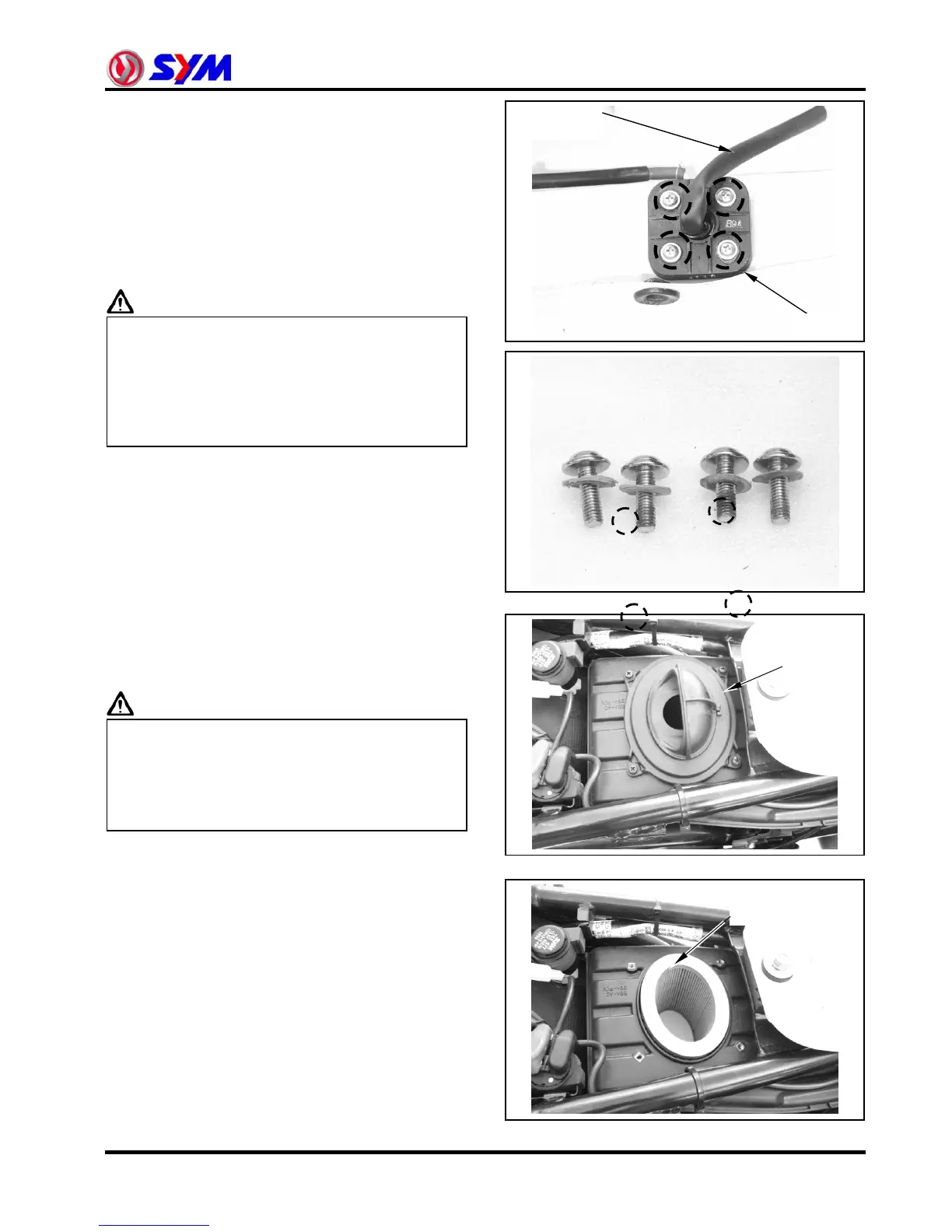

3. Fuel Injection System
Fuel unit
Fuel Unit
3-39
Remo
ve fuel unit screw. (screw×4)
Remove fuel unit.
Installation
Install in the reverse order of removal.
Caution
● Do not bend the fuel unit float arm.
● Do not fill out too much fuel in the tank.
● Apply glue to the screw before
installation.
● Replace the washer with new one.
Air cleaner
Remove the rear and front seat.
Remove the air cleaner cover (bolt x4).
Remove the air cleaner element.
Caution
● The air cleaner is paper-base; please
blow it clean with compressed air. Don’t
use water or other solvent
● Replace it with new one if the dirt cannot
be removed.
Installation
Install in the reverse order of removal.
bolt×4
