Scanning 2-7
The scanner can be tilted up to 65° forward or back and achieve a successful decode (Figure 2-4). Simple practice quickly shows what
tolerances to work within.

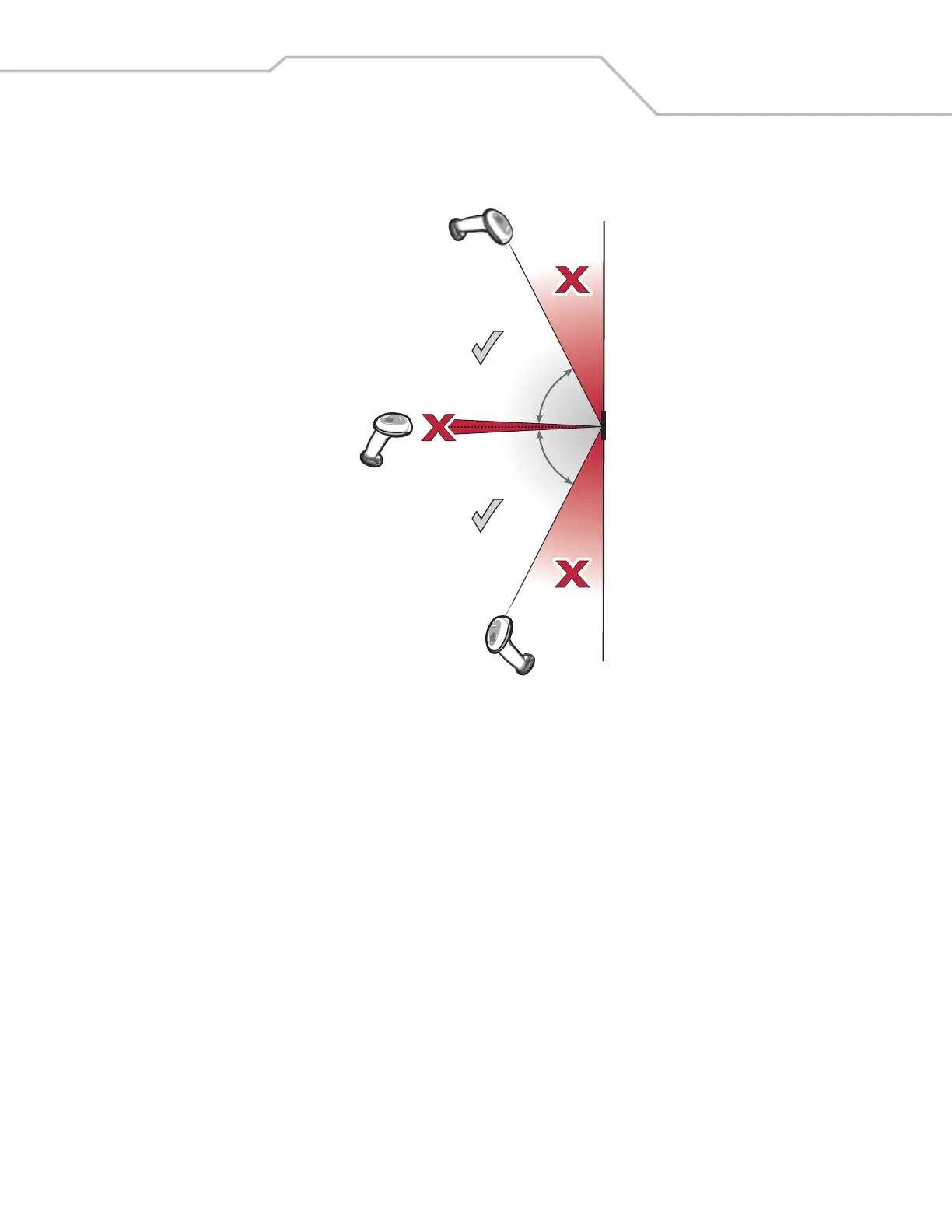

Figure 2-4. Maximum Tilt Angles and Dead Zone
65
o
65
o
