Symmetricom 58503B User Manual

Chapter 2 Features and Functions
Connecting a Computer or Modem
Getting Started Guide 2-17

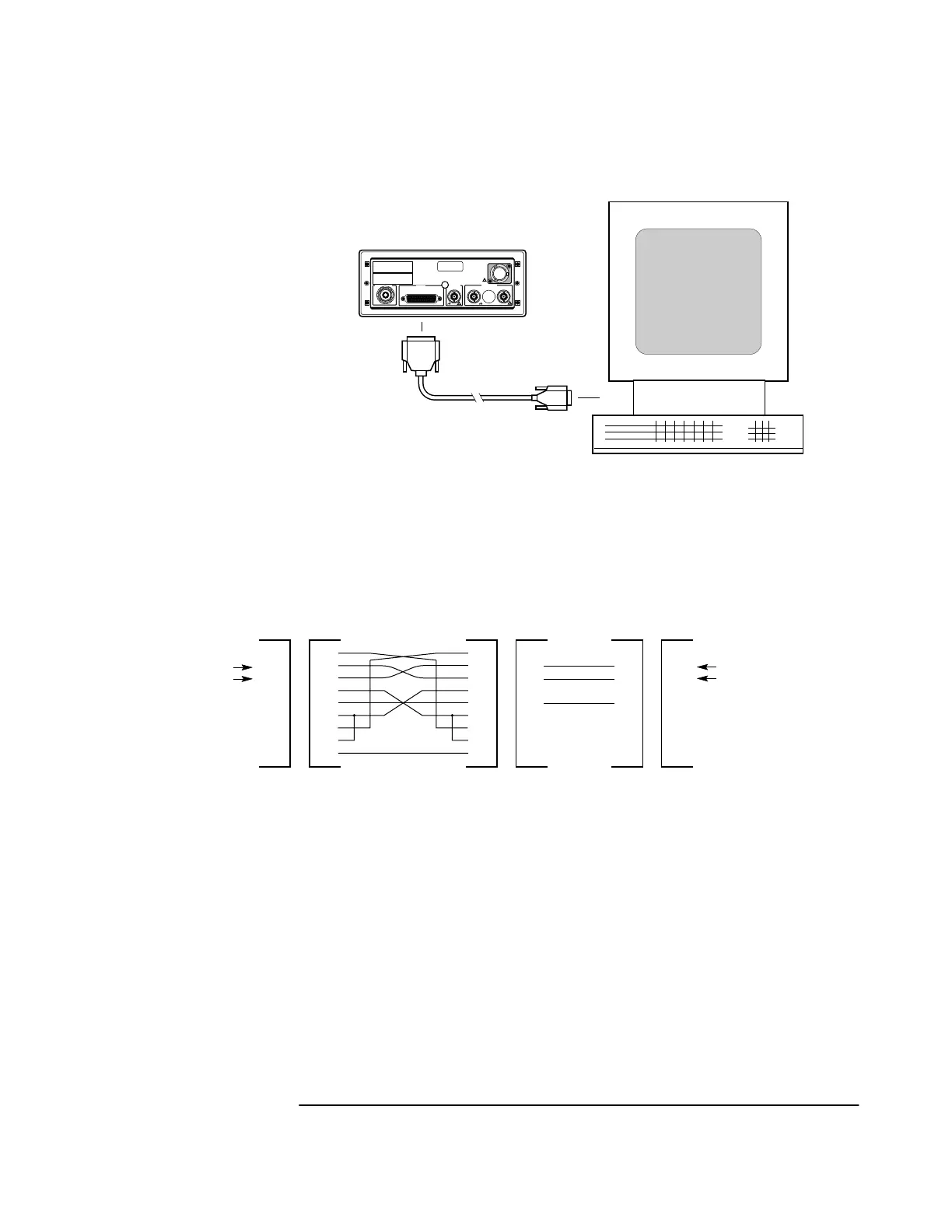

Figure 2-3. Connecting the GPS Receiver to a Modem
Figure 2-4. HP 24542U (or equivalent) Interface Cable and a
Straight-through Adapter Combination for Laptop and PORT 2
Connection
PC or Laptop
GPS Receiver
(Rear view)
!
!
ANT
!
11
22
33
44
55
66
77
88
99
PC
RS-232 (9-pin)
RXD
TXD
GND
DE-9P
Male
DE-9S
Female
PORT 2
RS-232 (9-pin)
RXD
TXD
GND
DE-9S
Female
DE-9S
Female
Interface Cable
Instrument input
Instrument output
PC input
PC output
Data
Terminal
Equipment
Data
Communications
Equipment
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Adapter
DE-9P
Male
DE-9P
Male
