Chapter 1 Getting Started
Preparing the GPS Receiver for Use
Getting Started Guide 1-9
To Assemble and Connect the +129 Vdc IEC 320 Connector/
Cable (59551A Only)
The 59551A is operated from ac voltage. It can also be operated from
129 Vdc. Note that you will have to assemble your own dc power cable
using 18 AWG connecting wires and the supplied IEC 320 dc connector
plug as shown in Figure 1-2A.

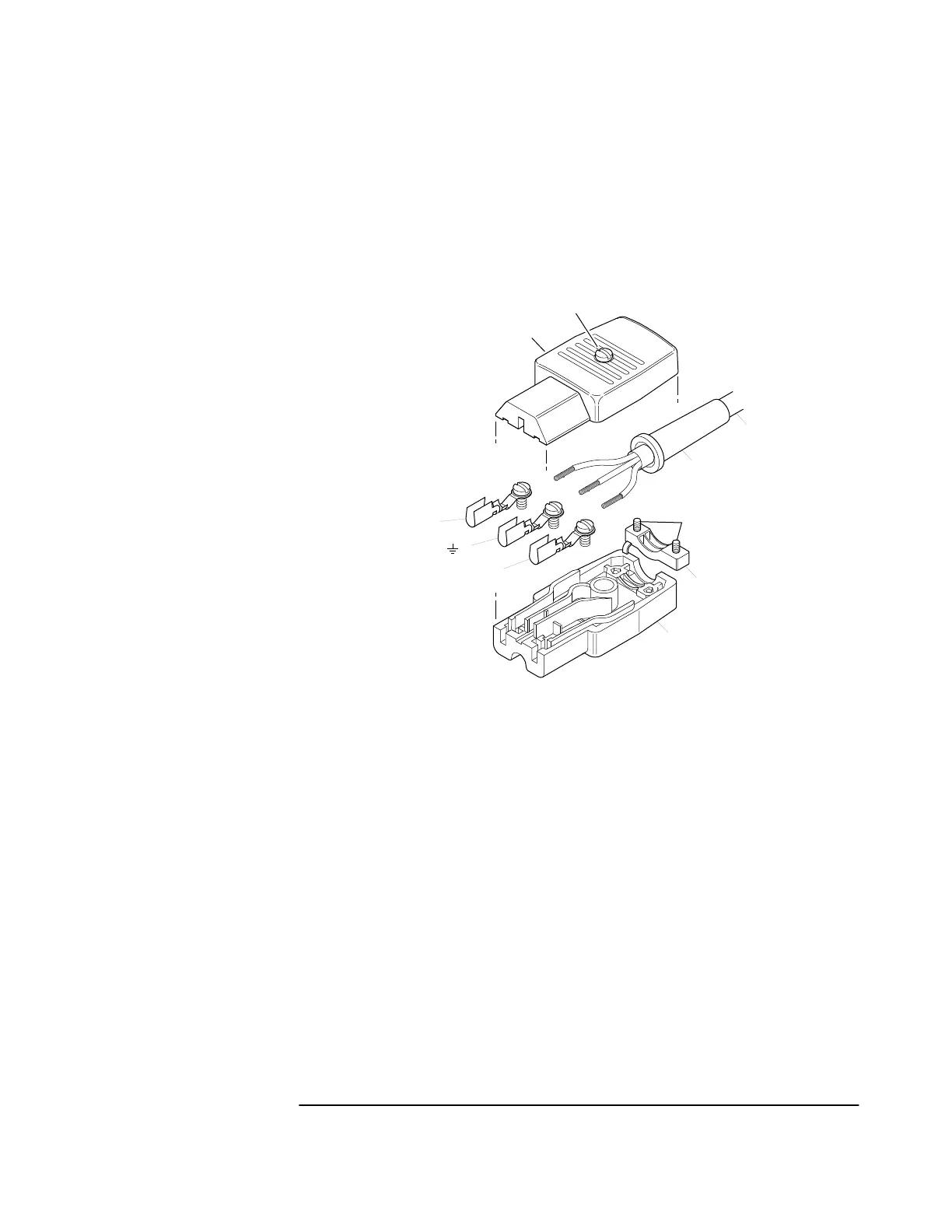

Figure 1-2A. 129 Vdc IEC 300 DC Connector Plug and Power Cable
Exploded View
1 Using a small flat blade screwdriver, open the the connector by loosing
the cover center screw (1)that holds two cover (2, 9) of the connector
plug together Figure 1-2A.
2 Using a small flat blade screwdriver, pry loose contact terminals 3, 4,
and 5 from the bottom cover (9)of the connector plug.
1 Cover screw 6 Cable sleeve
2 Top cover 7 Cable (customer supplies)
3 Negative (low voltage) terminal 8
Wire clamp
4 Chassis ground terminal 9 Bottom cover
5 Positive (high voltage) terminal 10 Wire clamp screws
1
2
6
3(N)
5(L)
4( )
8
10
9
7
