Chapter 2 Features and Functions
Connecting a Computer or Modem
2-18 Getting Started Guide
To Connect the 59551A to a Laptop Computer Via the
Front-Panel PORT 2
Use the 9-pin (f) to miniature 9-pin (f) RS-232C interface cable
supplied for a Laptop computer, and a “straight-through” type of 9-pin
male-to-male adapter to connect the 59551A Module’s front-panel
PORT 2 DE-9S (female) connector to a laptop computer as shown in
Figure 2-5.

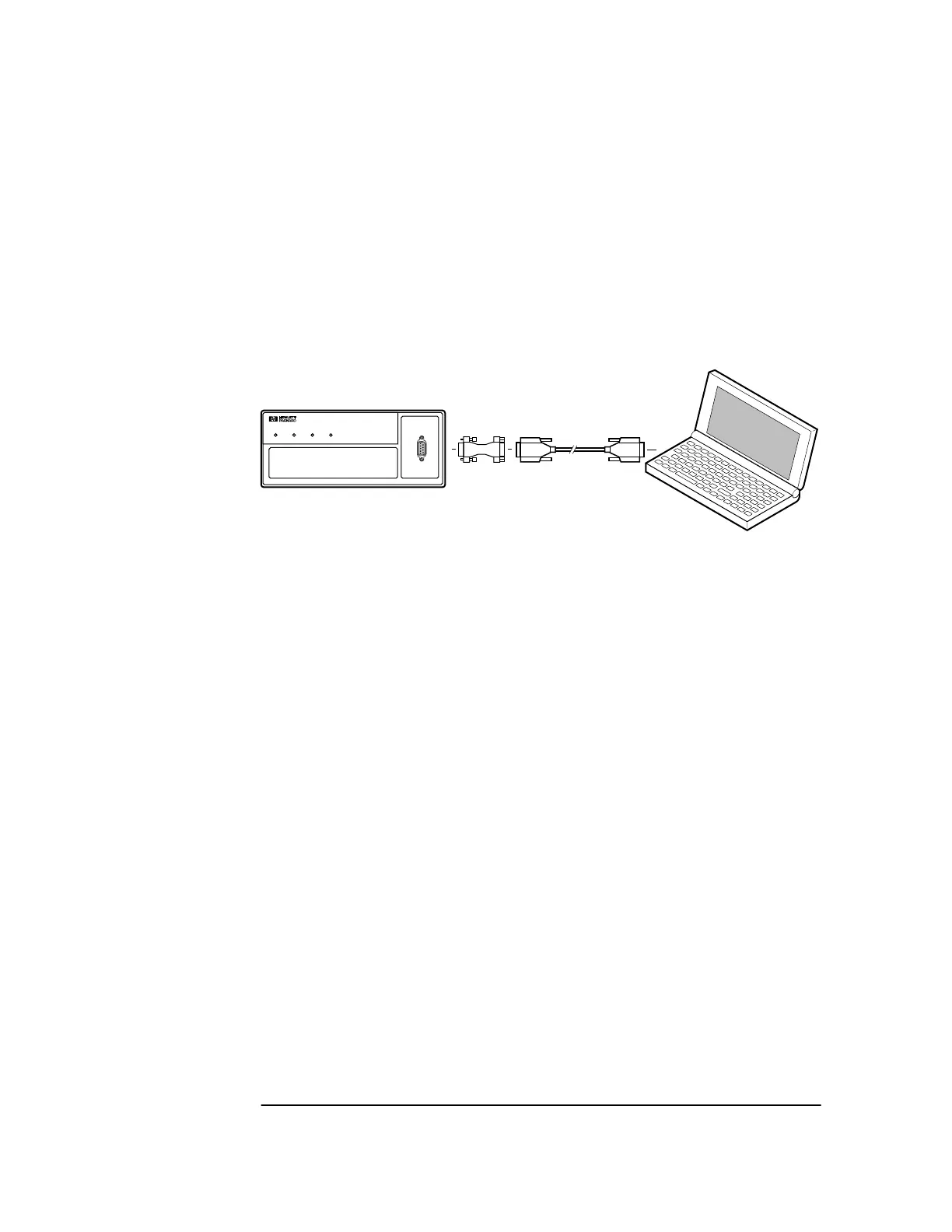

Figure 2-5. Connecting the 59551A to a Laptop Computer
OUTPUT
RS-232
59551A
GPS MEASUREMENTS SYNCHRONIZATION MODULE
Power GPS Lock Holdover Alarm
59551A
Laptop Computer
