Chapter 2 Features and Functions
Connecting a Computer or Modem
2-16 Getting Started Guide
To Connect the GPS Receiver to a PC, Laptop, or
Modem Via the Rear-Panel PORT 1
Connecting to the Personal Computer (PC)
Use an HP 24542G (or equivalent) interface cable to connect the
Receiver’s rear-panel PORT 1 DB-25 female connector to a PC or laptop
as shown in Figure 2-2.

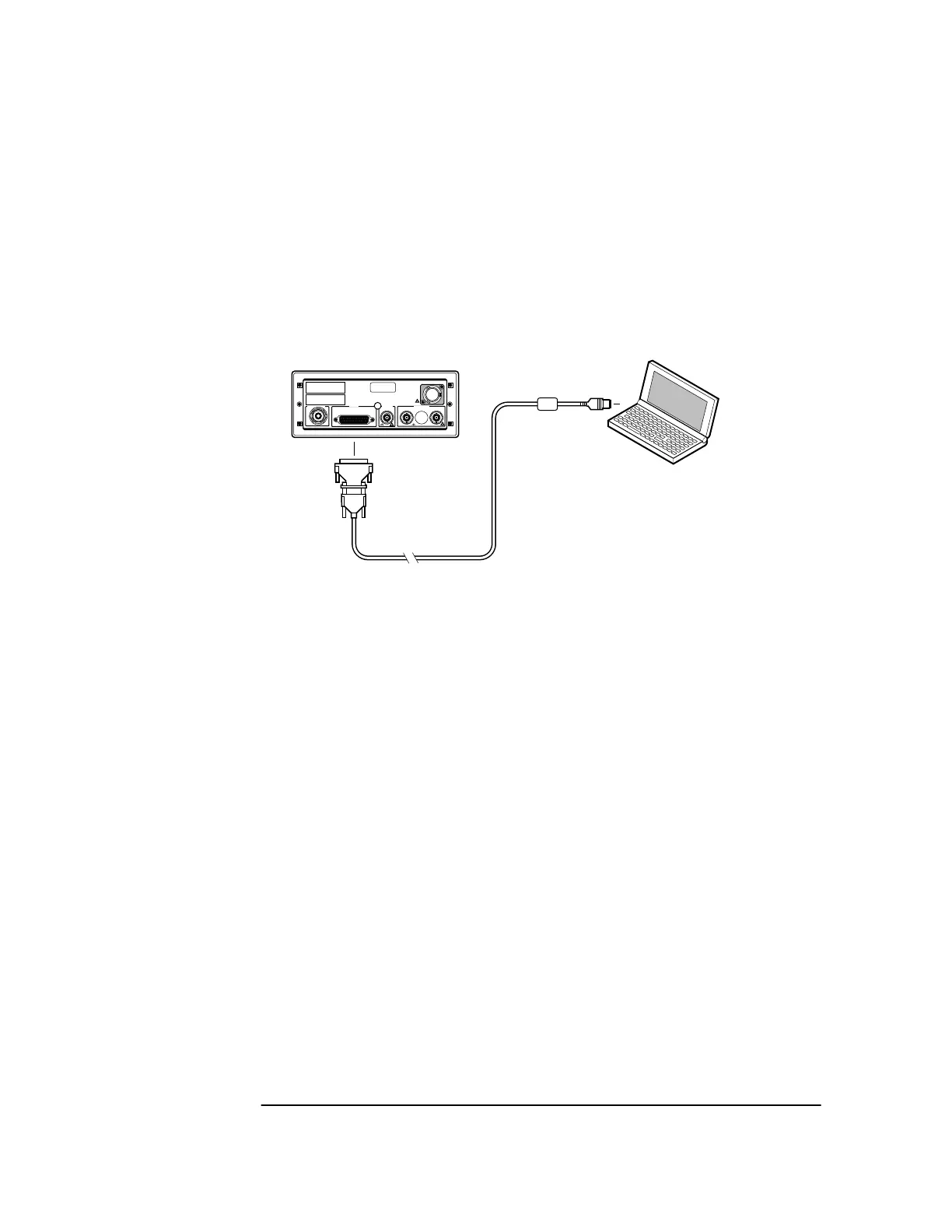

Figure 2-2. Connecting the GPS Receiver to a PC or Laptop
Connecting to a Modem
Use an HP 40242M (or equivalent) interface cable to connect the
Receiver’s rear-panel PORT 1 DB-25 female connector to a modem,
which is a DCE (Digital Communication Equipment) device, as shown
in Figure 2-3.
GPS Receiver
(Rear view)
Palmtop
Computer
!
!
ANT
!
To Next Page
