Chapter 3 Part Names and Functions
SA-90 Instructions for Use
22/
46
(7) Sampler connector
Connects the SA-90 to the CN-3000, CN-6000, CN-3500 or CN-6500 sampler.
(8) Fuse holder
Use a 250 V 3.15 A (time lag) fuse.
(9) Main power switch
Switches the main power of the instrument on/off. This instrument can be operated with the main power
supply switch always on.
(10) AC power inlet
Supply power using the Sysmex-specified power cable.
(11) LAN port
Use this port to connect to the IPU of the CN-3000, CN-6000, CN-3500 or CN-6500.

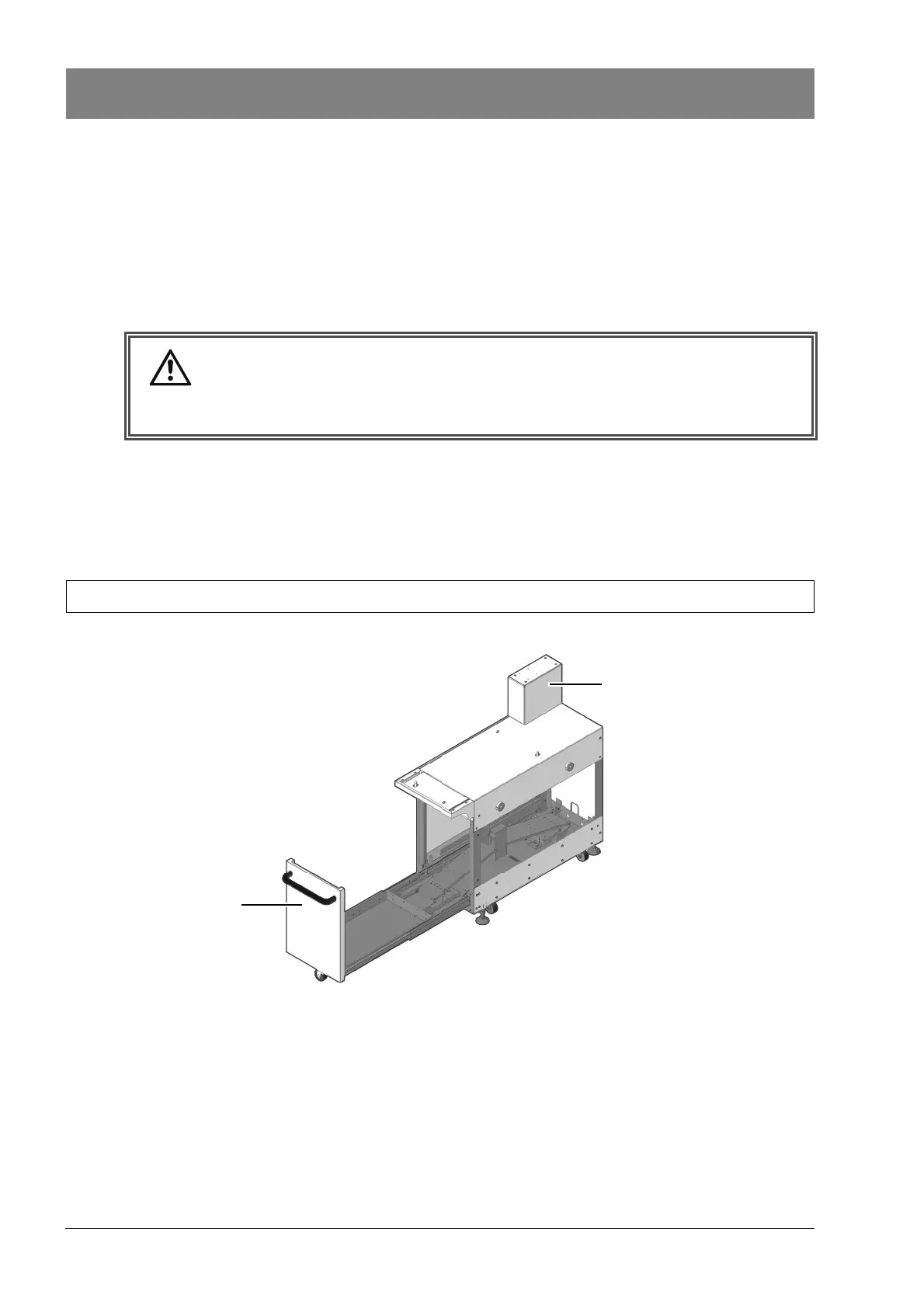

3.2 WG-90
(1) Reagent storage
Provides space to store reagents for the CN-3000, CN-6000, CN-3500 or CN-6500.
When moving the reagent storage, use the handle.
When closing the reagent storage, push it until the end.
(2) Arm mount
Install the optional touchscreen monitor arm on this mount.
Caution
Do not turn this switch on/off repeatedly within a short period of time.
This will overload the fuse and may cause it to blow.
(1)
(2)
