Chapter 5 Installation
SA-90 Instructions for Use
26/
46

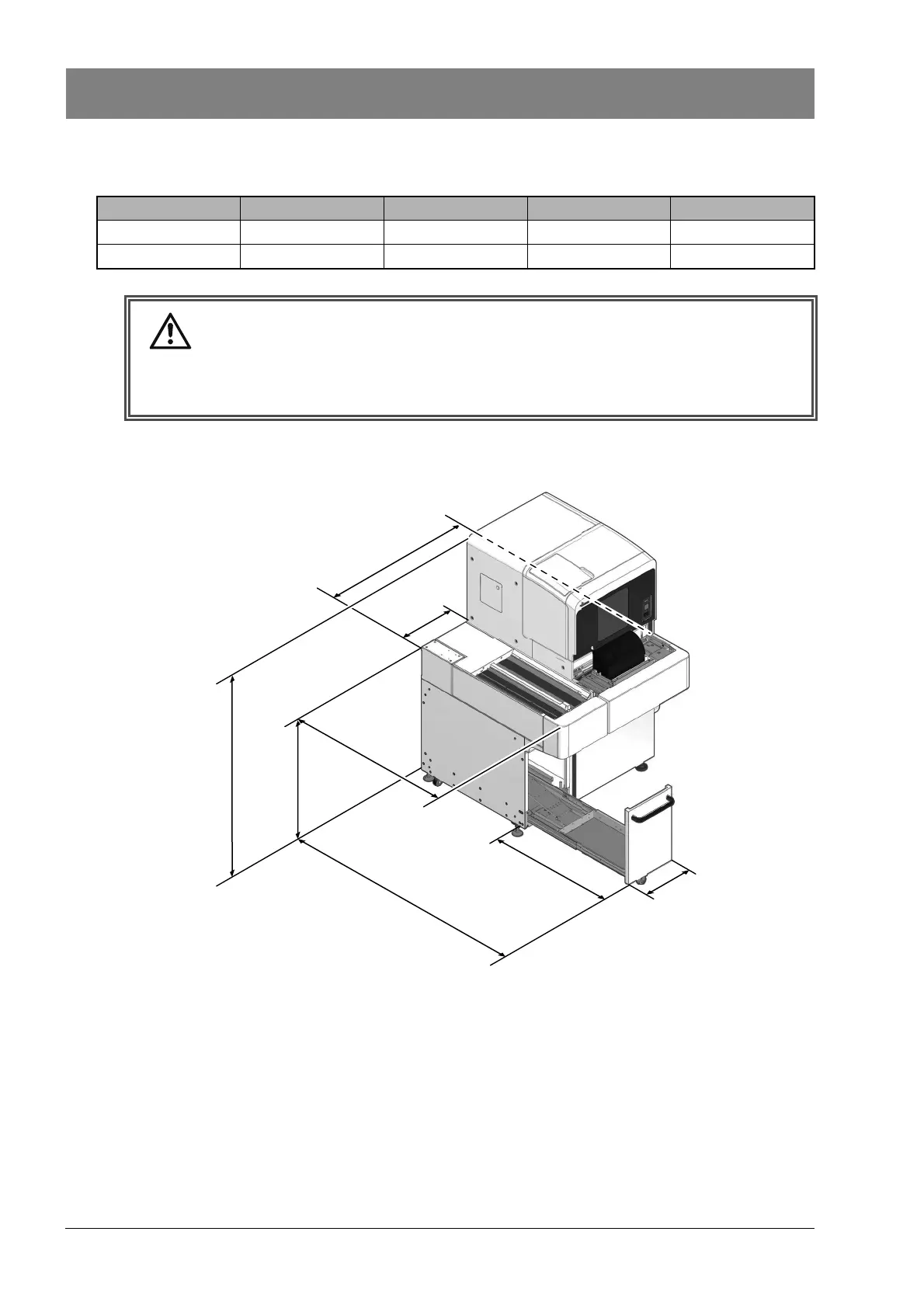

System configuration example (with wagon)
(CN-3000 or CN-6000 1 unit, SA-90 1 unit, WG-90 1 unit)
Product name Width (mm) Height (mm) Depth (mm) Weight (kg)
CN-3000 System 1,060 1,350 1,030 330
CN-6000 System 1,060 1,350 1,030 330
Install the instrument in a location where the power cable can be immediately disconnected from the power
outlet in the event that unusual odors or smoke are emitted.
There is a risk of fire, electrical shock, and injury.
Approx. 330 mm
725 mm
Approx. 1,510 mm
830 mm
Approx. 1,350 mm
1,030 mm
330 mm
Approx. 940 mm
