Chapter 1 Introduction
SA-90 Instructions for Use
9/
46

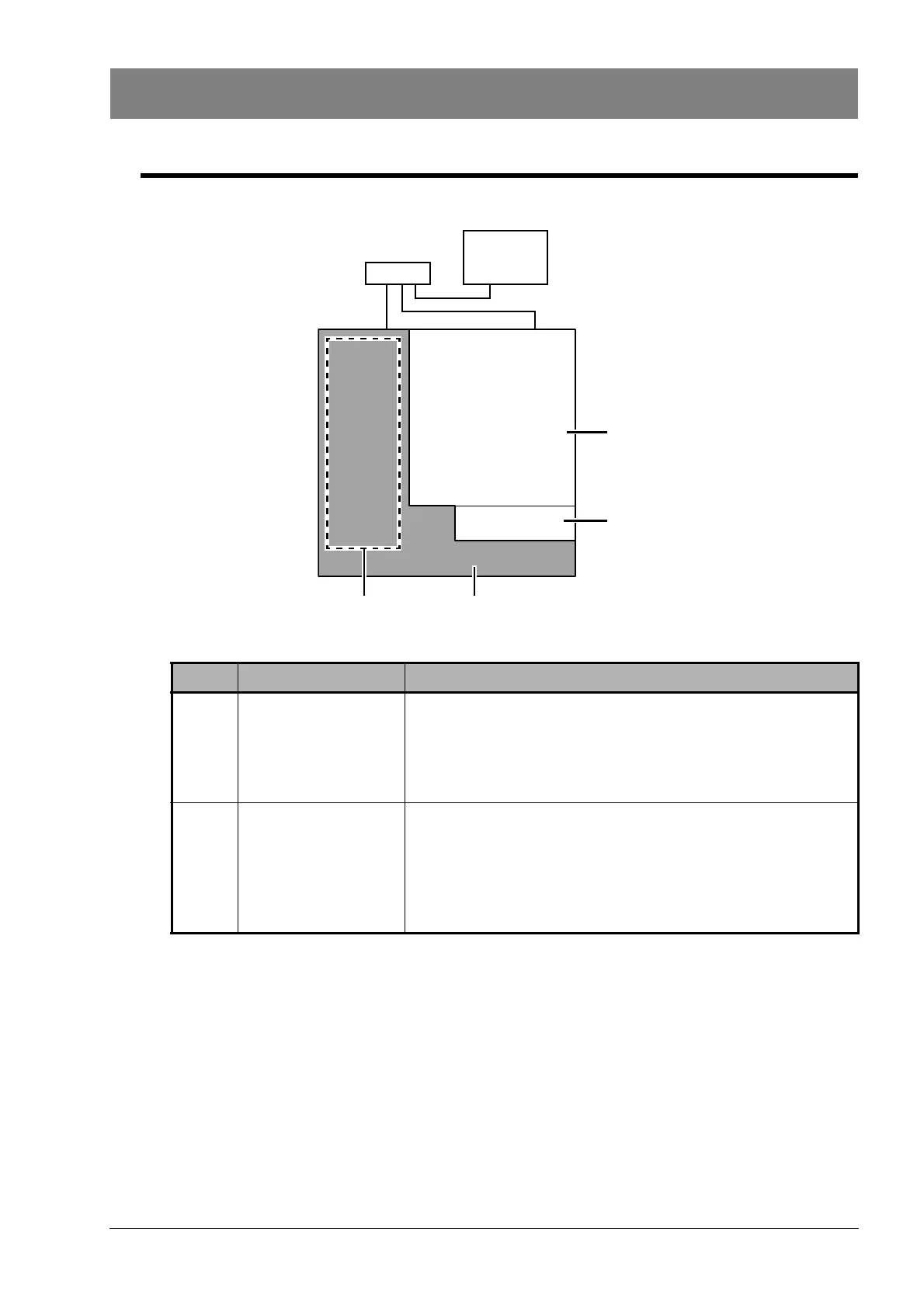

1.2.2 System configuration
The system consists of the following units.
Names and functions are indicated in the table below:
No. Name Function
(1) SA-90 • A maximum of 20 sample racks can be placed at the same time.
• The sample racks are transported to the right sampler pool of the
CN-3000, CN-6000, CN-3500 or CN-6500.
• The sample racks are received from the left sampler pool of the
CN-3000, CN-6000, CN-3500 or CN-6500.
(2) WG-90 • This is a dedicated wagon connected to the rack feeder and rack
collector of the SA-90.
• The IPU monitor for the CN-3000, CN-6000, CN-3500 or CN-6500
can be installed on the wagon.
• 2 CA CLEAN II containers (5 L), or 1 plastic tank (20 L) can be
utilized from the reagent storage compartment beneath.
IPU
HUB
Example: CN-3000 or CN-6000
Standard sampler
(2) (1)
