Systema K21 - Overall Dimensions

10
Rev. 12GB0712
SYSTEMA S.p.A.
AIRTIGHT GAS CONVECTORS
Draw2
2.7 Overall dimensions
GAS CONNECTION
10 cm
min.

ATTENTION: the KING gas convector must be installed at 10 cm minimum distance from the ground; it
is necessary to forsee the space for the gas interception. The hole for the gas pipe has to be provided
under the appliance, between the appliance and the ground, according to the gas inlet of the appliance
itself.

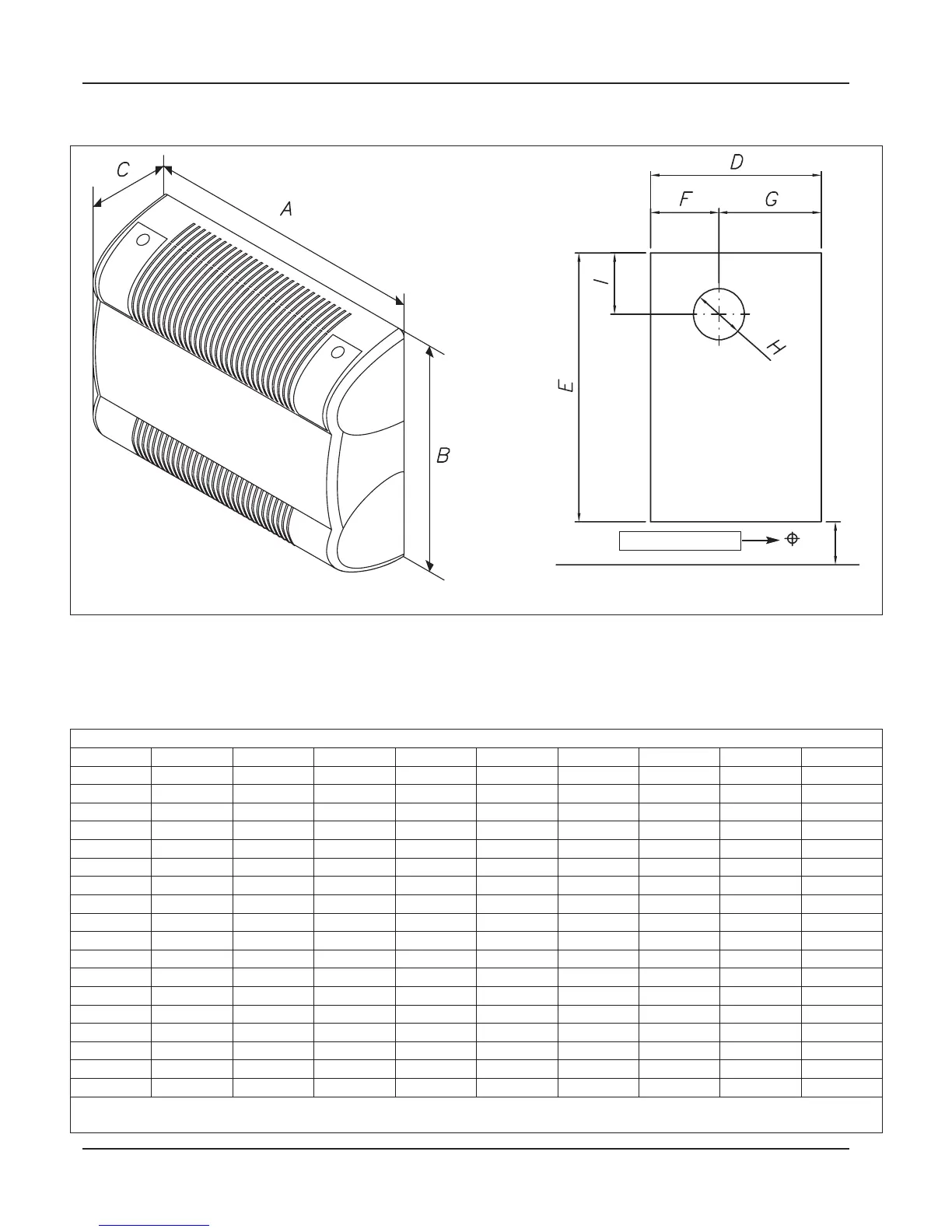

CONVECTOR OVERALL DIMENSIONS AND ASSEMBLY FRAME
MODELS A B C D E F G H I
K21
440 624 225 385 611 173 212 125 116
K28 440 624 225 385 611 173 212 125 116
K40
600 624 225 549 611 264 285 160 124
K55 600 624 225 549 611 264 285 160 124
K28V
440 624 225 385 611 173 212 125 117
K40V
600 624 225 549 611 264 285 160 124
K55V 600 624 225 549 611 264 285 160 124
K21E
440 624 225 385 611 173 212 125 117
K28E 440 624 225 385 611 173 212 125 117
K40E
600 624 225 549 611 264 285 160 124
K55E 600 624 225 549 611 264 285 160 124
K28VE
440 624 225 385 611 173 212 125 117
K40VE
600 624 225 549 611 264 285 160 124
K55VE 600 624 225 549 611 264 285 160 124
K21FE
585 616 225 535 612 305 230 60 108
K28FE 585 616 225 535 612 305 230 60 108
K40FE
745 616 225 689 612 399 290 60 108
K55FE 745 616 225 689 612 399 290 60 108
The data provided above are purely indicative. The Manufacturer reserves the right to perform modifications without notice.
