Systema K21 - Exploded View of Convector with Parts List

11
Rev. 12GB0712
SYSTEMA S.p.A.
AIRTIGHT GAS CONVECTORS
2.8 Exploded view of convector
with parts list

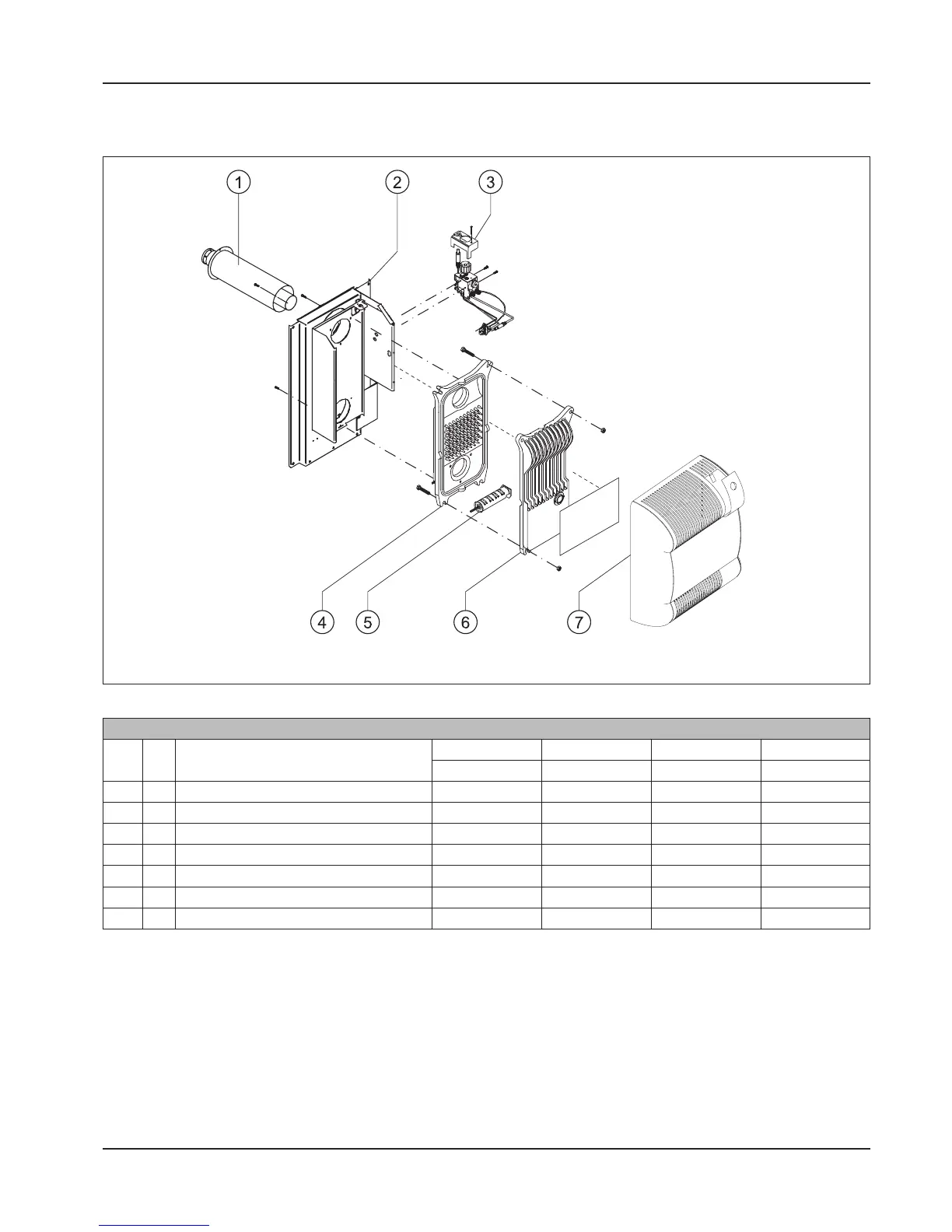

Draw 3 Exploded view of Model K21, K28, K40, K55 generator
PILOT FLAME TYPE THERMOCOUPLE SERIES CONVECTOR (Ref. Draw 3)
POS. Q. ITEM
K21 K28 K40 K55
CODE CODE CODE CODE
1 1 PAIR OF COAXIAL TUBES 02ACKT0808 02ACKT0808 02ACKT0810 02ACKT0810
2 1 AIR BOX 02CNSA0378 02CNSA0378 02CNSA0379 02CNSA0379
3 1 EUROSIT PILOT FLAME VALVE 02CNVE0679 02CNVE0679 02CNVE0679 02CNVE0679
4 1 REAR CAST IRON CASTING 02CNFU0201 02CNFU0201 02CNFU0203 02CNFU0203
5 1 BURNER 02CNBR0050 02CNBR0050 02CNBR0052 02CNBR0051
6 1 FRONT CAST IRON CASTING 02CNFU0200 02CNFU0200 02CNFU0202 02CNFU0202
7 1 SHELL 02MACO0028 02MACO0028 02MACO0029 02MACO0029
