12
Rev. 12GB0712
SYSTEMA S.p.A.
AIRTIGHT GAS CONVECTORS

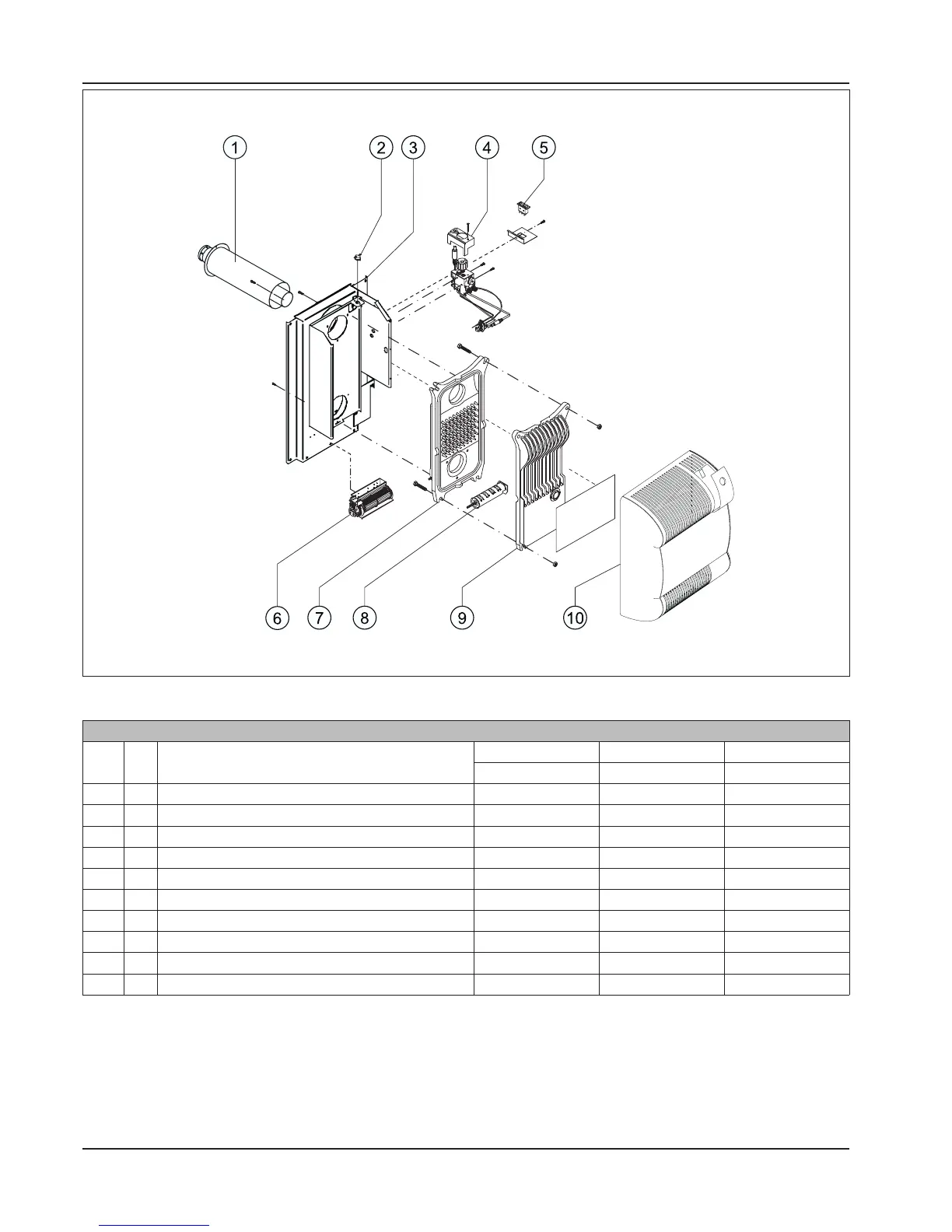

Draw 4 Exploded view of Model K28V, K40V, K55V generator
VENTILATED PILOT FLAME THERMOCOUPLE SERIES CONVECTORS (Ref. Draw 4)
POS. Q. ITEM
K28V K40V K55V
CODE CODE CODE
1 1 PAIR OF COAXIAL TUBES 02ACKT0808 02ACKT0810 02ACKT0810
2 1 FAN TRIGGERING THERMOSTAT 02CETR0470 02CETR0470 02CETR0470
3 1 AIR BOX 02CNSA0378 02CNSA0379 02CNSA0379
4 1 EUROSIT PILOT FLAME VALVE 02CNVE0679 02CNVE0679 02CNVE0679
5 1 MOLVENO I-II SWITCH 02CEDE0234 02CEDE0234 02CEDE0234
6 1 TANGENTIAL FAN 02CEVT0622 02CEVT0623 02CEVT0623
7 1 REAR CAST IRON CASTING 02CNFU0201 02CNFU0203 02CNFU0203
8 1 BURNER 02CNBR0050 02CNBR0052 02CNBR0051
9 1 FRONT CAST IRON CASTING 02CNFU0200 02CNFU0202 02CNFU0202
10 1 SHELL 02MACO0028 02MACO0029 02MACO0029
