AIRTIGHT GAS CONVECTORS

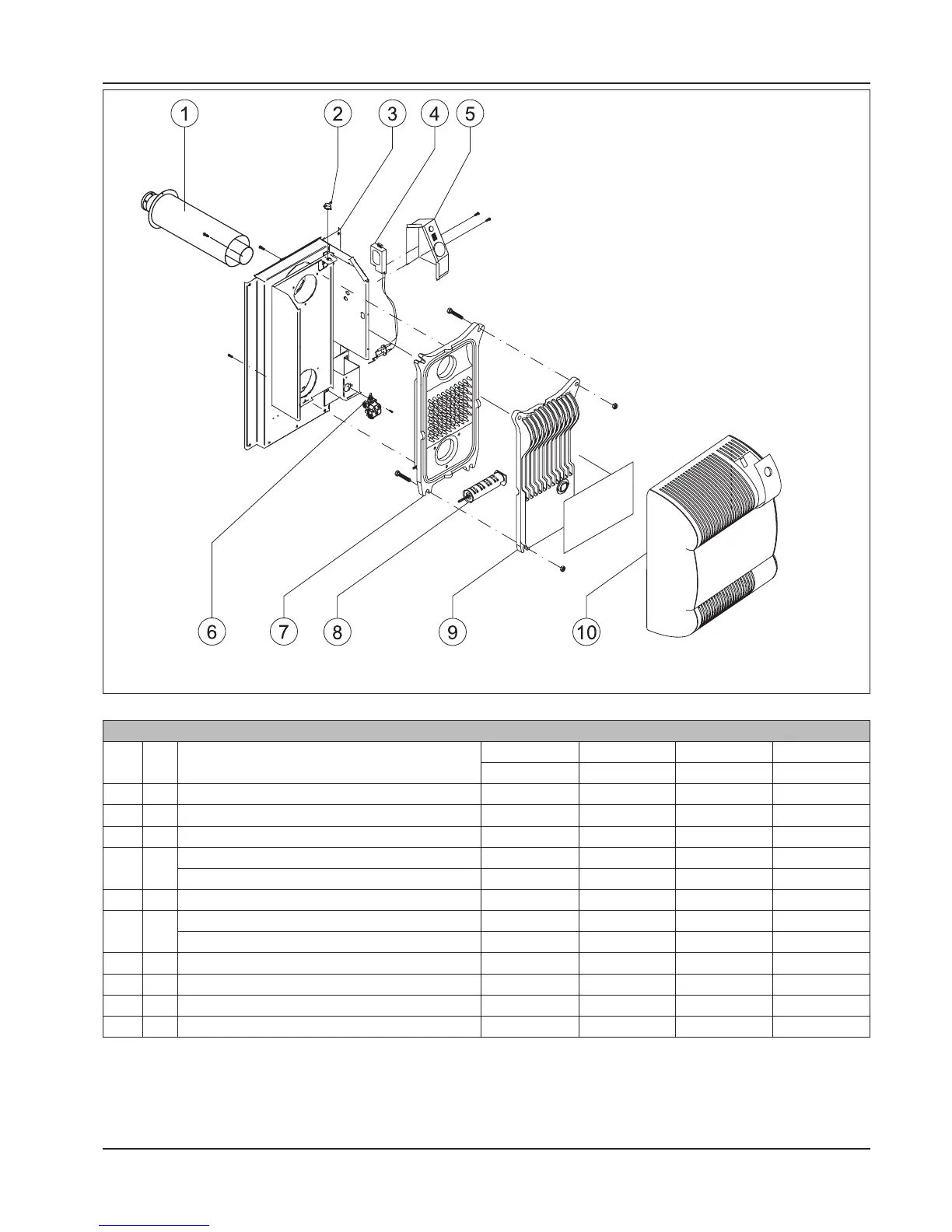

Draw 5 Exploded view of Model K21E, K28E, K40E, K55E generator
ELECTRONIC SERIES CONVECTORS (Ref. Draw 5)
POS. Q. ITEM
K21E K28E K40E K55E
CODICE CODICE CODICE CODICE
1 1 PAIR OF COAXIAL TUBES 02ACKT0808 02ACKT0808 02ACKT0810 02ACKT0810
2 1 LIMIT THERMOSTAT 02CETR0471 02CETR0471 02CETR0471 02CETR0471
3 1 AIR BOX 02CNSA0378 02CNSA0378 02CNSA0379 02CNSA0379
4 1
BRAHMA CM11F DEVICE 02CEAP2701 02CEAP2701 02CEAP2701 02CEAP2701
IMIT AC02 DEVICE 02CEAP1028 02CEAP1028 02CEAP1028 02CEAP1028
5 1 ELECTRIC CONTROL PANEL KING E 02CEQU0345 02CEQU0345 02CEQU0345 02CEQU0345
6 1
WHITE ROGERS ELECTRONIC VALVE 02CEEC0164 02CEEC0164 02CEEC0164 02CEEC0164
SIT 850 MICRO ELECTRONIC VALVE 02CEEL0166 02CEEL0166 02CEEL0166 02CEEL0166
7 1 REAR CAST IRON CASTING 02CNFU0201 02CNFU0201 02CNFU0203 02CNFU0203
8 1 BURNER 02CNBR0058 02CNBR0050 02CNBR0051 02CNBR0051
9 1 FRONT CAST IRON CASTING 02CNFU0200 02CNFU0200 02CNFU0202 02CNFU0202
10 1 SHELL 02MACO0028 02MACO0028 02MACO0029 02MACO0029
