AIRTIGHT GAS CONVECTORS

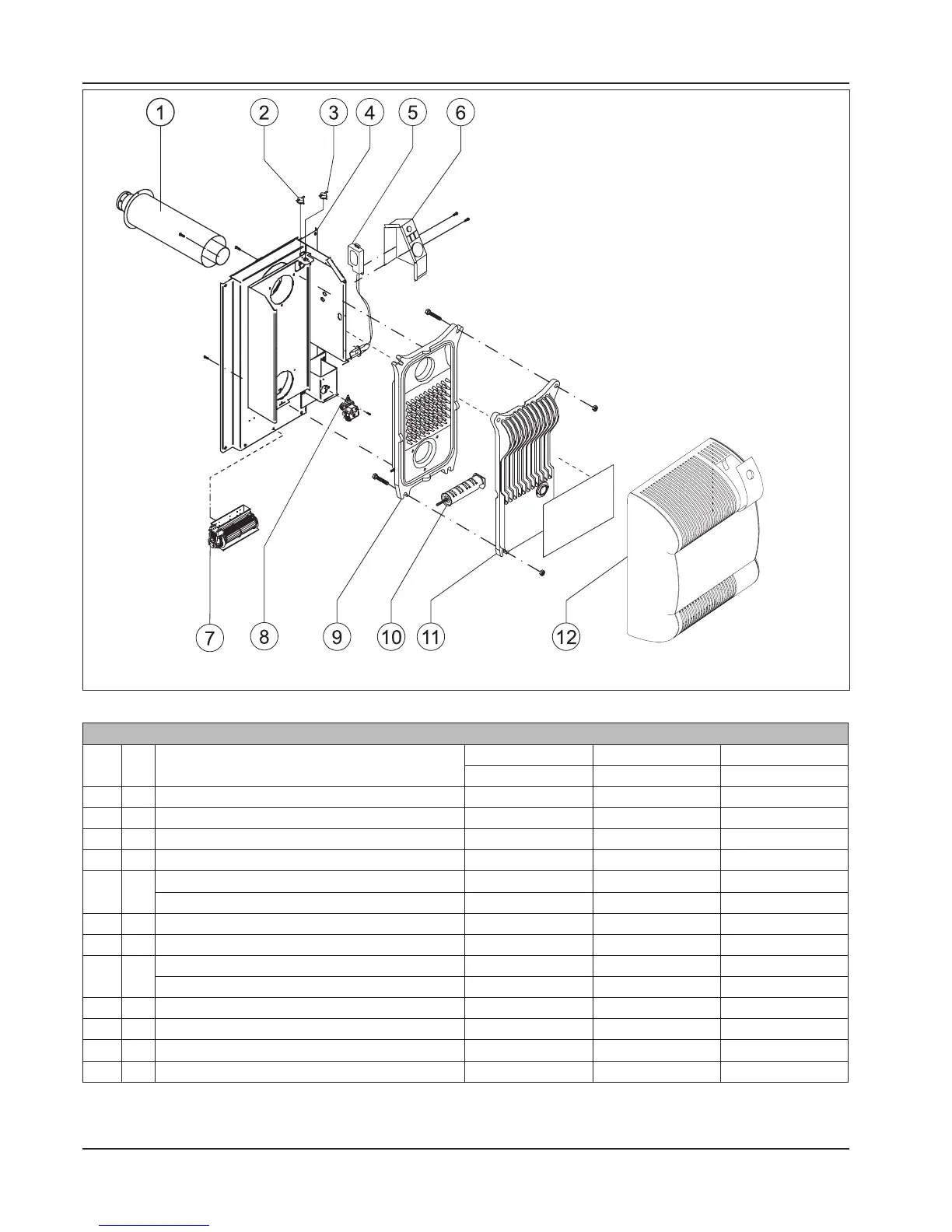

Draw 6 Exploded view of Model 28VE, K40VE, K55VE generator
VENTILATED ELECTRONIC SERIES CONVECTORS (Ref. Draw 6)
POS. Q. ITEM
K28VE K40VE K55VE
CODE CODE CODE
1 1 PAIR OF COAXIAL TUBES 02ACKT0808 02ACKT0810 02ACKT0810
2 1 LIMIT THERMOSTAT 02CETR0471 02CETR0471 02CETR0471
3 1 FAN TRIGGERING THERMOSTAT 02CETR0470 02CETR0470 02CETR0470
4 1 AIR BOX 02CNSA0378 02CNSA0379 02CNSA0379
5 1
BRAHMA CM11F DEVICE 02CEAP2701 02CEAP2701 02CEAP2701
IMIT AC02 DEVICE 02CEAP1028 02CEAP1028 02CEAP1028
6 1 ELECTRIC CONTROL PANEL KING VE 02CEQU0344 02CEQU0344 02CEQU0344
7 1 TANGENTIAL FAN 02CEVT0622 02CEVT0623 02CEVT0623
8 1
WHITE ROGERS ELECTRONIC VALVE 02CEEC0164 02CEEC0164 02CEEC0164
SIT 850 MICRO ELECTRONIC VALVE 02CEEL0166 02CEEL0166 02CEEL0166
9 1 REAR CAST IRON CASTING 02CNFU0201 02CNFU0203 02CNFU0203
10 1 BURNER 02CNBR0050 02CNBR0058 02CNBR0058
11 1 FRONT CAST IRON CASTING 02CNFU0200 02CNFU0202 02CNFU0202
12 1 SHELL 02MACO0028 02MACO0029 02MACO0029
