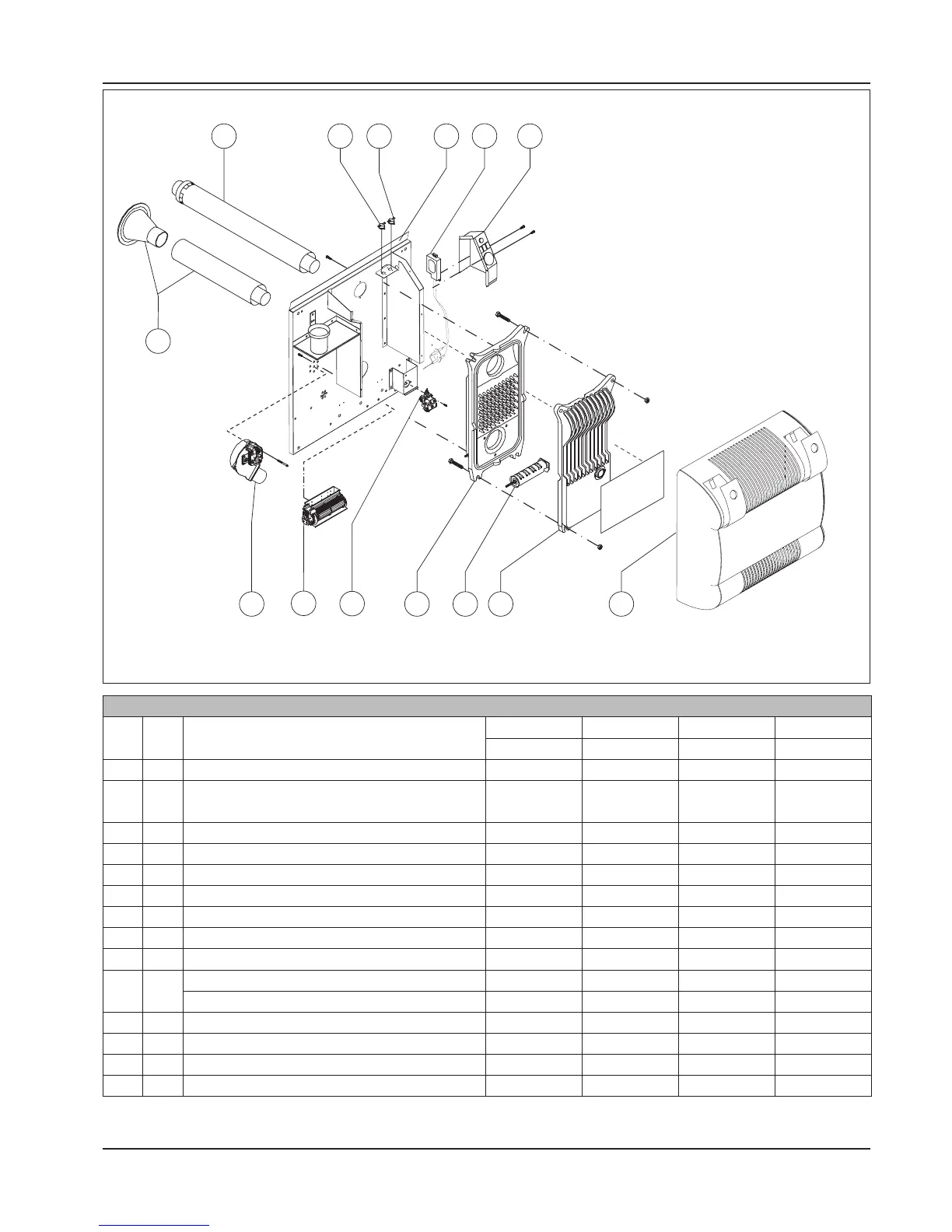

Draw 7 Exploded view of Model K21FE, K28FE, K40FE, K50FE generator
VENTILATED/FORCED CIRCULATION SERIES CONVECTORS (Ref. Draw 7)
POS. Q. ITEM
K21FE K28FE K40FE K55FE
CODE CODE CODE CODE
1 1
PAIR OF COAXIAL TUBES
02ACKT0800 02ACKT0800 02ACKT0800 02ACKT0800
2 1
STAINLESS STEEL ANTI-WIND GRILLE FOR
RECESSED WALL MOUNTING
02ACKT0801 02ACKT0801 02ACKT0801 02ACKT0801
3 1
LIMIT THERMOSTAT
02CETR0471 02CETR0471 02CETR0471 02CETR0471
4 1
FAN TRIGGERING THERMOSTAT
02CETR0470 02CETR0470 02CETR0470 02CETR0470
5 1
AIR BOX
02CNSA0376 02CNSA0376 02CNSA0377 02CNSA0377
6 1
IMIT AC02 DEVICE
02CEAP1028 02CEAP1028 02CEAP1028 02CEAP1028
7 1
ELECTRIC CONTROL PANEL KING FE
02CEQU0343 02CEQU0343 02CEQU0343 02CEQU0343
8 1
EV 100 CENTRIFUGAL FAN
02CEAS3002 02CEAS3002 02CEAS3002 02CEAS3002
9 1
TANGENTIAL FAN
02CEVT0622 02CEVT0622 02CEVT0623 02CEVT0623
10 1
WHITE ROGERS ELECTRONIC VALVE
02CEEC0164 02CEEC0164 02CEEC0164 02CEEC0164
SIT 850 MICRO ELECTRONIC VALVE 02CEEL0166 02CEEL0166 02CEEL0166 02CEEL0166
11 1
REAR CAST IRON CASTING
02CNFU0201 02CNFU0201 02CNFU0203 02CNFU0203
12 1
BURNER
02CNBR0050 02CNBR0050 02CNBR0058 02CNBR0058
13 1
FRONT CAST IRON CASTING
02CNFU0200 02CNFU0200 02CNFU0202 02CNFU0202
14 1
SHELL
02MACO0031 02MACO0031 02MACO4055 02MACO4055
