Bilag5—4

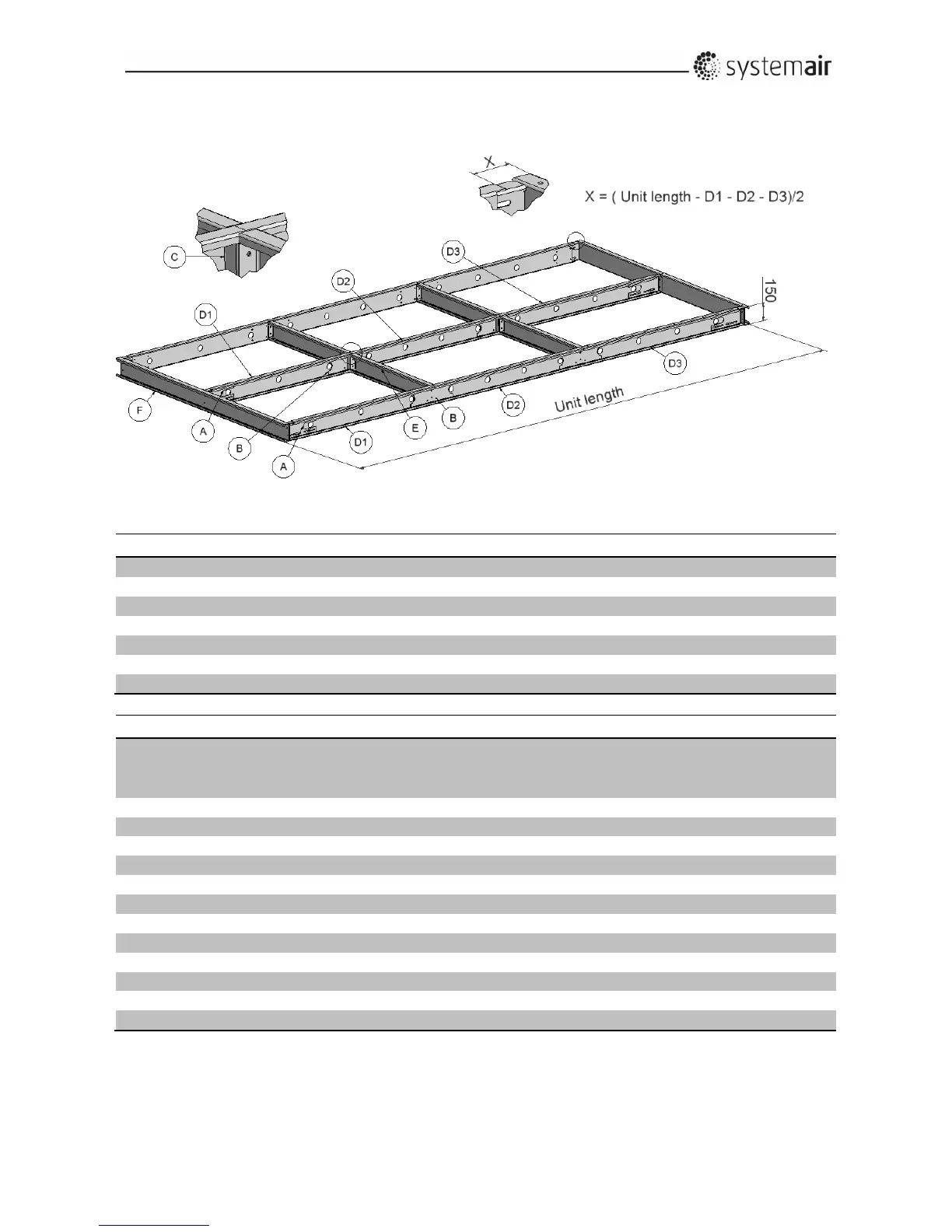

5.3Baseframelength4590–6200[mm]Unitsize50‐150
WidthprofiletypeF WidthprofiletypeE
Unitsize Quantity Length [mm] Length[mm]
DV-50 2 2020 940
DV-60 2 2170 1015
DV-80 2 2170 1015
DV-100 2 2370 1115
DV-120 2 2590 1225
DV-150 2 2890 1375
D1 D2 D3 A B C E
Frame
length
[mm]
Qty Length
[mm]
Qty Length
[mm]
Qty Length
[mm]
Qty Qtyl Qty Qty
4590-4740 3 1420 3 1500 3 1570 6 6 2 4
4740-4890 3 1570 3 1570 3 1500 6 6 2 4
4890-5040 3 1720 3 1500 3 1570 6 6 2 4
5040-5110 3 1720 3 1720 3 1500 6 6 2 4
5110-5260 3 1720 3 1720 3 1570 6 6 2 4
5260-5410 3 1720 3 1720 3 1720 6 6 2 4
5410-5560 3 1870 3 1720 3 1720 6 6 2 4
5560-5710 3 1870 3 1870 3 1720 6 6 2 4
5710-5860 3 1870 3 1870 3 1870 6 6 2 4
5860-6010 3 2020 3 1870 3 1870 6 6 2 4
6010-6160 3 2020 3 2020 3 1870 6 6 2 4
6160-6200 3 2020 3 2020 3 2020 6 6 2 4
