Bilag6—3

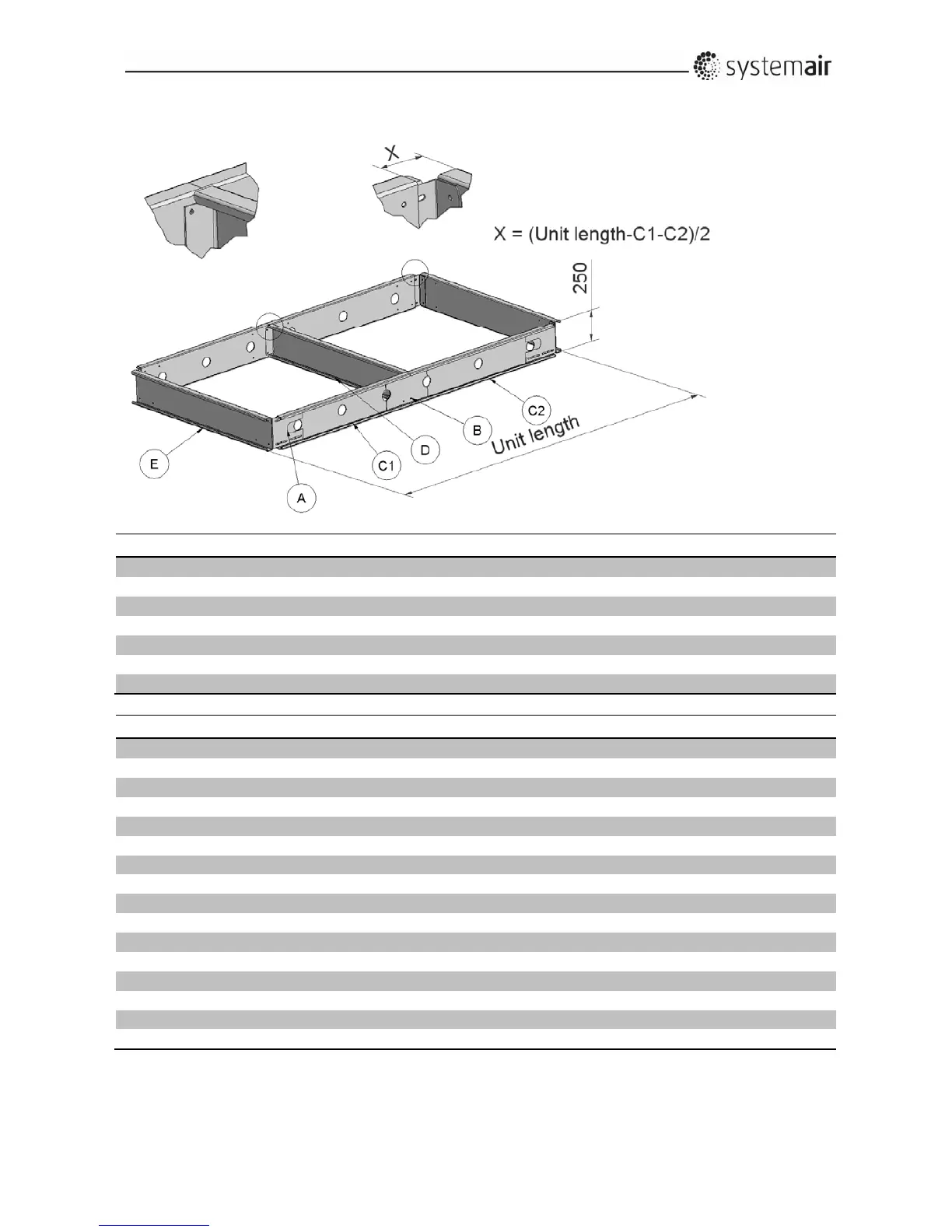

6.2Baseframelength2420–4590[mm]Unitsize10‐40
WidthprofiletypeE SpacerprofiletypeD
Unitsize Quantity Length [mm] Length[mm]
DV-10 2 870 870
DV-15 2 1020 1020
DV-20 2 1170 1170
DV-25 2 1320 1320
DV-30 2 1470 1470
DV-40 2 1620 1620
C1 C2 A B D
Framelength[mm] Quantity Length [mm] Quantity Length [mm] Qty Qty Qty
2420-2570 2 1120 2 1200 4 2 1
2570-2640 2 1270 2 1200 4 2 1
2640-2790 2 1270 2 1270 4 2 1
2790-2940 2 1270 2 1420 4 2 1
2940-3090 2 1420 2 1420 4 2 1
3090-3240 2 1420 2 1570 4 2 1
3240-3390 2 1570 2 1570 4 2 1
3390-3540 2 1570 2 1720 4 2 1
3540-3690 2 1720 2 1720 4 2 1
3690-3840 2 1720 2 1870 4 2 1
3840-3990 2 1870 2 1870 4 2 1
3990-4140 2 1870 2 2020 4 2 1
4140-4290 2 2020 2 2020 4 2 1
4290-4440 2 2020 2 2170 4 2 1
4440-4590 2 2170 2 2170 4 2 1
