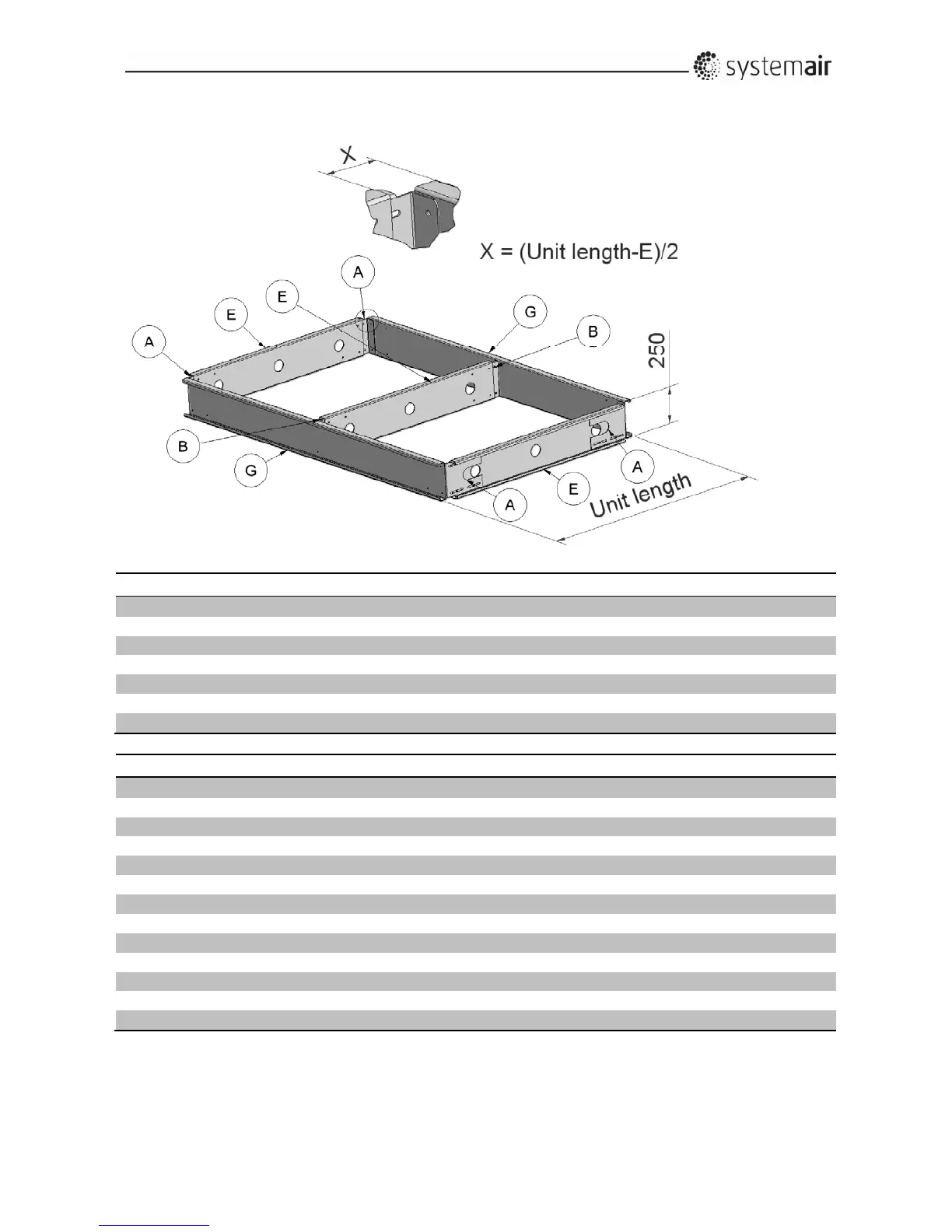

Bilag7—2
7.1Baseframelength720–2420[mm]Unitsize50‐150
WidthprofiletypeG
Unitsize Quantity Length[mm]
DV-50 2 1920
DV-60 2 2070
DV-80 2 2070
DV-100 2 2270
DV-120 2 2490
DV-150 2 2790
E A B
Framelength[mm] Quantity Length [mm] Quantity Quantity
700-770 3 520 4 2
770-920 3 670 4 2
920-1070 3 820 4 2
1070-1220 3 970 4 2
1220-1370 3 1120 4 2
1370-1520 3 1270 4 2
1520-1670 3 1420 4 2
1670-1820 3 1570 4 2
1820-1970 3 1720 4 2
1970-2120 3 1870 4 2
2120-2270 3 2020 4 2
2270-2420 3 2170 4 2

