Bilag8—7



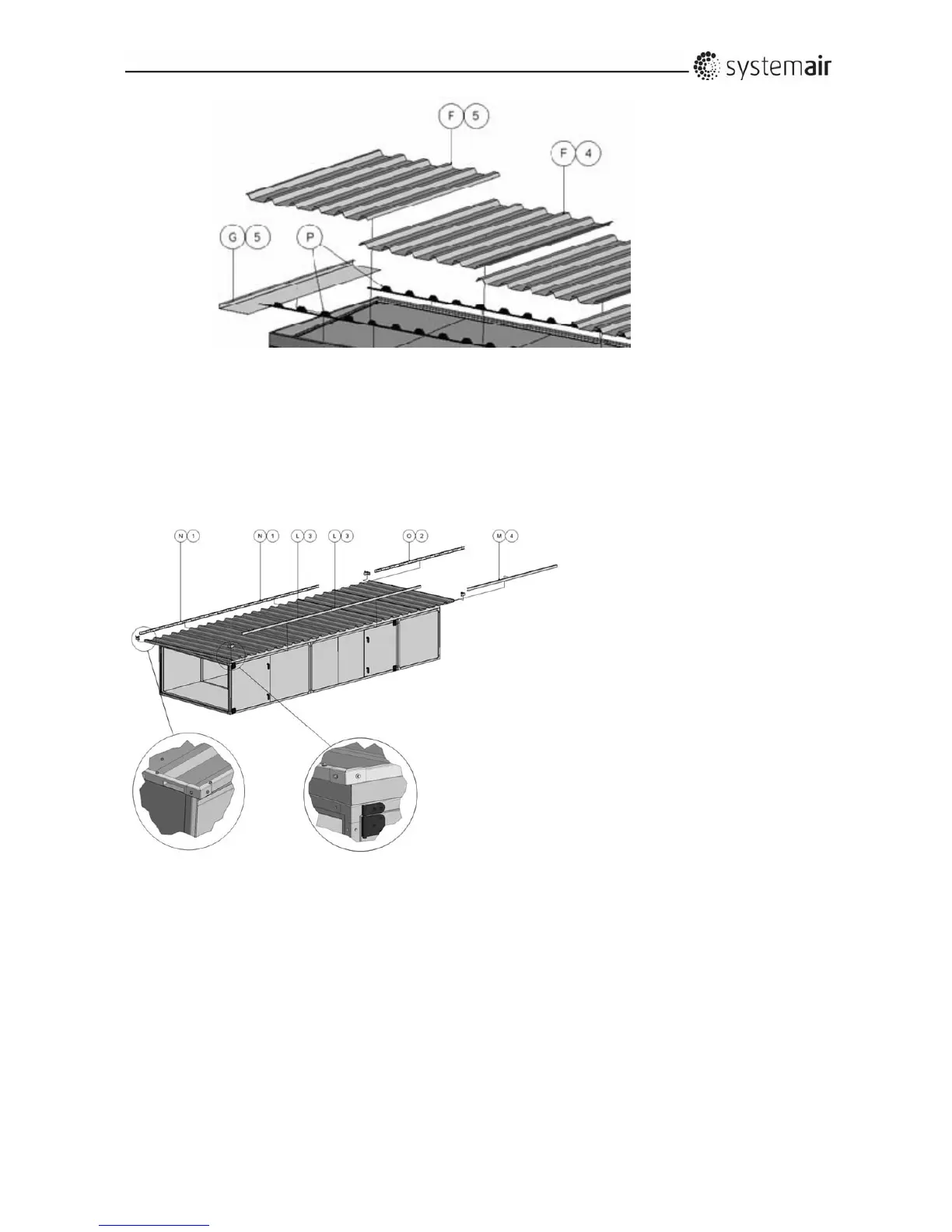

8.10Mountsideprofilesandcornersalongtheedgesoftherooftoprotectpersons
ProfilesNandOwiththerectangularholesareforthelongandlowersideoftheroofbecauseraincan
escapethroughtheholes.MounttheprofilestypeNfirstandtheprofileOlastbecausetheprofileOgoes
overtheprofileN.Mountedinthisorder,theprofile
Ocanmatchtheendoftheroofandthesurplus
lengthoftheprofileOwilljustcoverpartofthepreviousprofileN.MounttheprofilesLandMalongthe
longandhigherfrontsideoftheroof.Mountthe4protectioncorners.




8.11Applysealingonplatejointstoensurewaterresistance.
Finishinstallationofthesteelroofbysealingallplatejointswithsiliconetopreventrainwaterfrompassing
intotheunit.Seeexamplesbelowofjointstobesealed.
