SystemAir Danvent TIME User Manual


Annex9—32


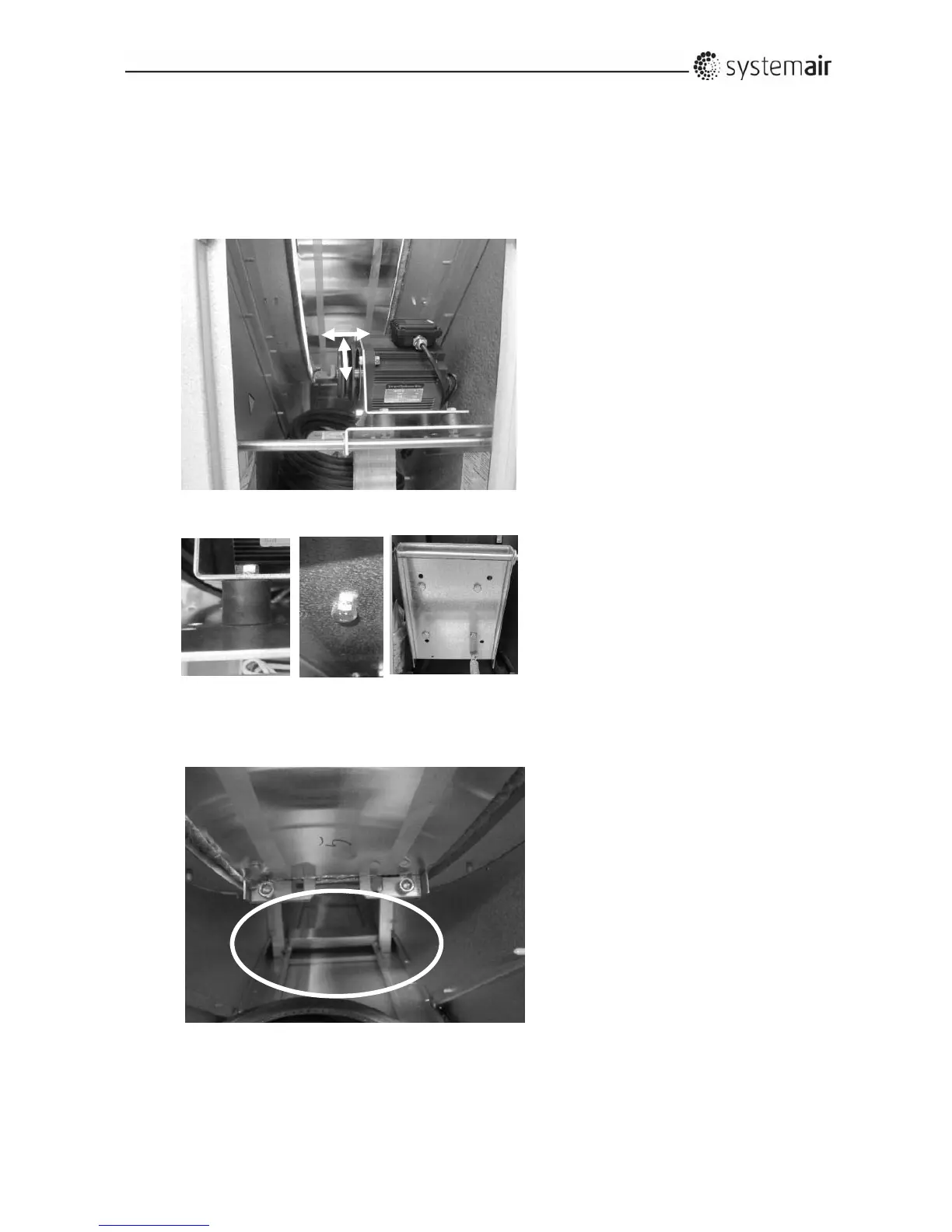

Fig. 2
BydeliveryofaDVCmodulewith
dividedrotor,themotorisinstalled
beforedeliverytothecustomer
Fig. 3, 4 and 5
Themotorandconsoleissecuredto
themotorplateby4shockabsorbers
mountedbyM8bolts.


Fig. 2 og 6
Thedrivebeltmustbeplacedaround
therotorand
inthecenterposition
oftherotor.Observebracketsfor
assemblyoftherotorsegments.
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
