Bilag4—4



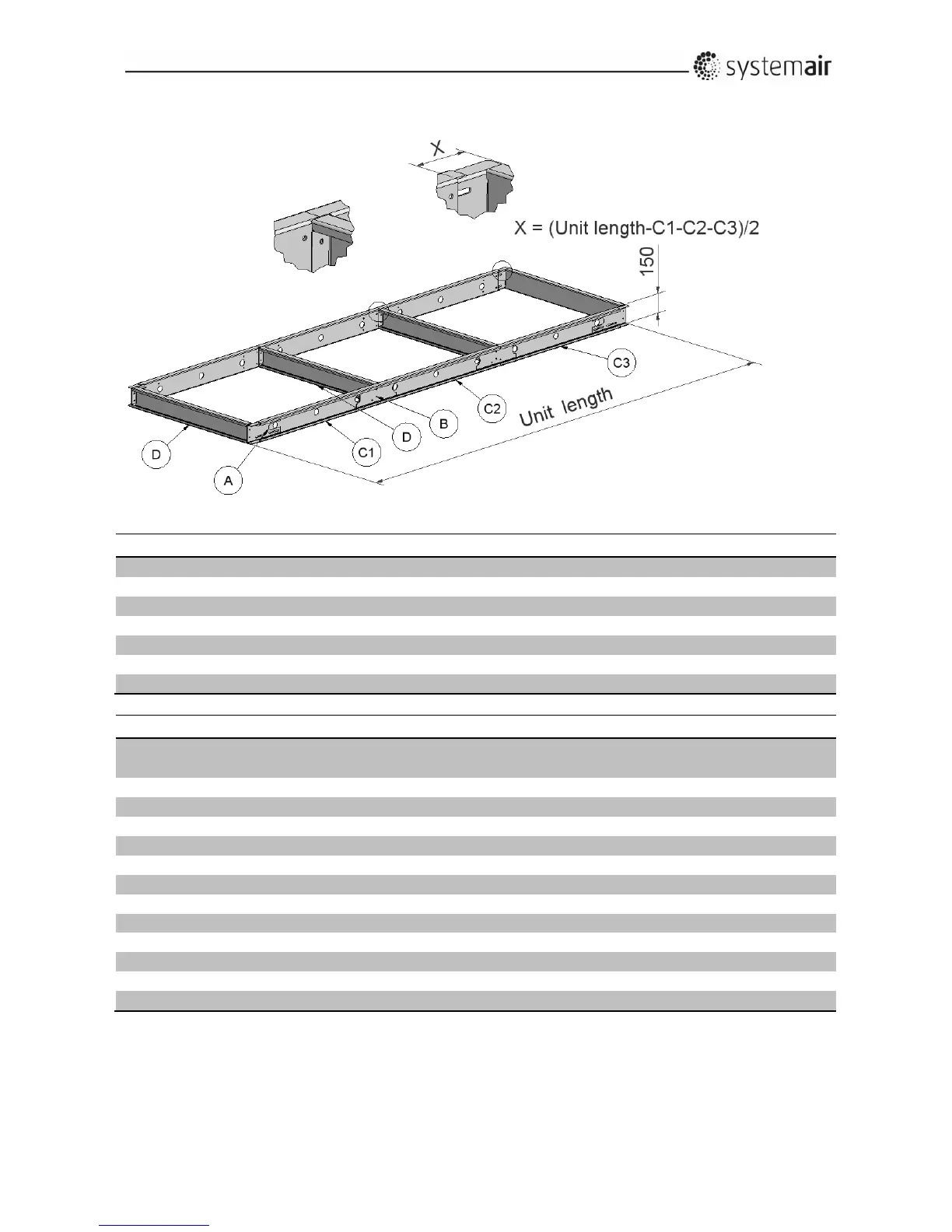

4.3Baseframelength4590–6200[mm]Unitsize10‐40



WidthprofiletypeD

Unitsize Quantity Length[mm]

DV-10 4 876

DV-15 4 1026

DV-20 4 1176

DV-25 4 1326

DV-30 4 1476

DV-40 4 1626



C1 C2 C3 A B

Framelength

[mm]

Quantity Length

[mm]

Quantity Length

[mm]

Numbe

Length

[mm]

Qty Qty

4590-4740 2 1420 2 1500 2 1570 4 4

4740-4890 2 1570 2 1570 2 1500 4 4

4890-5040 2 1720 2 1500 2 1570 4 4

5040-5110 2 1720 2 1720 2 1500 4 4

5110-5260 2 1720 2 1720 2 1570 4 4

5260-5410 2 1720 2 1720 2 1720 4 4

5410-5560 2 1870 2 1720 2 1720 4 4

5560-5710 2 1870 2 1870 2 1720 4 4

5710-5860 2 1870 2 1870 2 1870 4 4

5860-6010 2 2020 2 1870 2 1870 4 4

6010-6160 2 2020 2 2020 2 1870 4 4

6160-6200 2 2020 2 2020 2 2020 4 4


