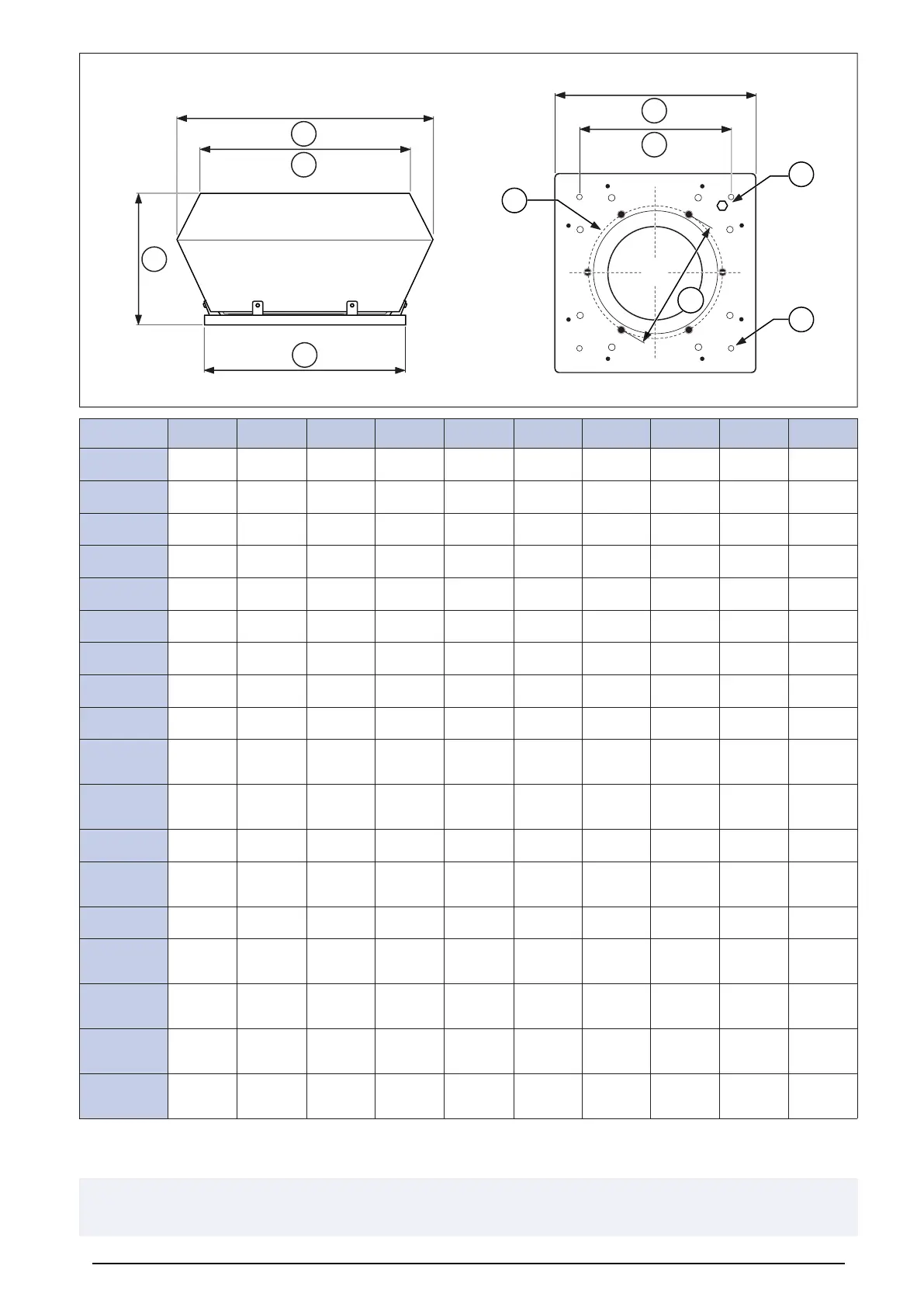

F
G
A
B
J
H
E
C
D
I
A B C D E F G H ØI ØJ
DVC-S 190
370 320 175 335 6xM6 335 245 M20x1.5 213 10(4x)
DVC-S 225
370 320 175 335 6xM6 335 245 M20x1.5 213 10(4x)
DVC-S 315
560 470 330 435 6xM6 435 330 M20x1.5 285 10(4x)
DVC-S 355
720 618 390 595 6xM6 595 450 M20x1.5 438 12(4x)
DVC-S 400
720 618 390 595 6xM6 595 450 M20x1.5 438 12(4x)
DVC-S 450
900 730 465 665 6xM6 665 535 M20x1.5 438 12(4x)
DVC-S 500
900 730 465 665 6xM6 665 535 M20x1.5 438 12(4x)
DVC-S 560
1150 960 565 939 8xM6 939 750 M20x1.5 800 14(4x)
DVC-S 630
1150 960 565 939 8xM6 939 750 M20x1.5 605 14(4x)
DVCI-S
190
498 438 210 335 6xM6 335 245 M20x1.5 605 10(4x)
DVCI-S
225
498 438 210 335 6xM6 335 245 M20x1.5 213 10(4x)
DVC-S 315
695 485 370 435 6xM6 435 330 M20x1.5 213 10(4x)
DVCI-S
355
877 745 440 595 6xM6 595 450 M20x1.5 285 12(4x)
DVC-S 400
877 745 440 595 6xM6 595 450 M20x1.5 438 12(4x)
DVCI-S
450
970 825 479 665 6xM6 665 535 M20x1.5 438 12(4x)
DVCI-S
500
970 825 479 665 6xM6 665 535 M20x1.5 438 12(4x)
DVCI-S
560
1315 1130 600 939 8xM6 939 750 M20x1.5 605 14(4x)
DVCI-S
630
1315 1130 600 939 8xM6 939 750 M20x1.5 605 14(4x)
12.2.4 Product dimensions DVC-P fans and DVCI-P fans
Note:
If the unit of measure is not specified, the dimensions are given in millimetres.
