SystemAir DVN 355

12.3 Wiring diagrams
Abbreviation in wiring diagram Cable colour
RD Red
YE Yellow
BU Blue
WH White
GN Green
BN Brown
BK Black
GR Grey
GY Green/Yellow

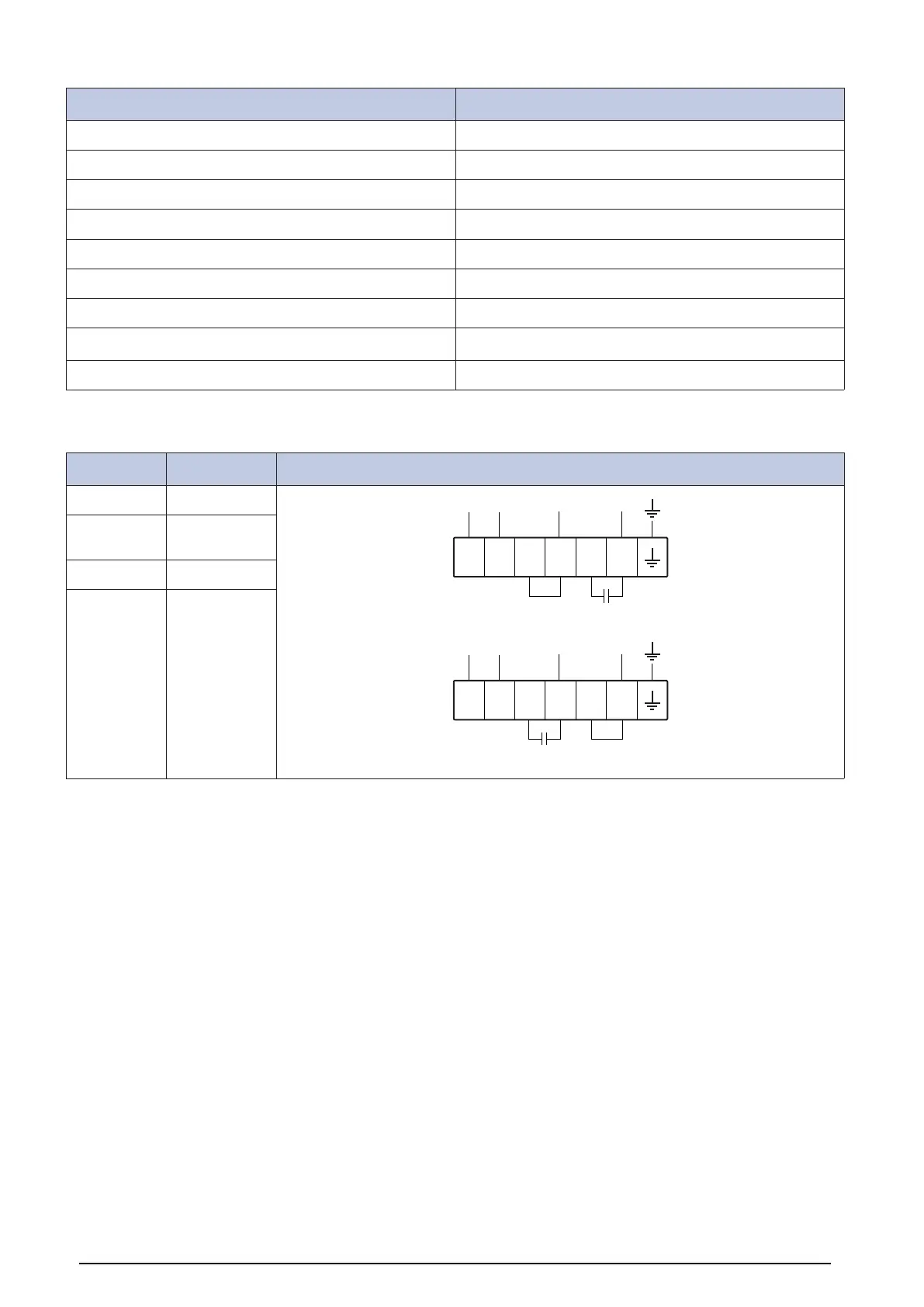

12.3.1 Wiring diagrams for DVN fans and DVNI fans AC
DVN fans DVNI fans 1–phase 230 V
DVN 355 E4 DVNI 355 E4
TK
TK L1 N
TK TK Z1 Z2U1 U2
Motor turns clockwise
TK
TK L1N
TK TK Z1 Z2U2 U1
Motor turns counterclockwise
DVN 355 EV
SA
DVNI 355 EV
SA
DVN 400 E4 DVNI 400 E4
DVN 450 E4 DVNI 450 E4
25
