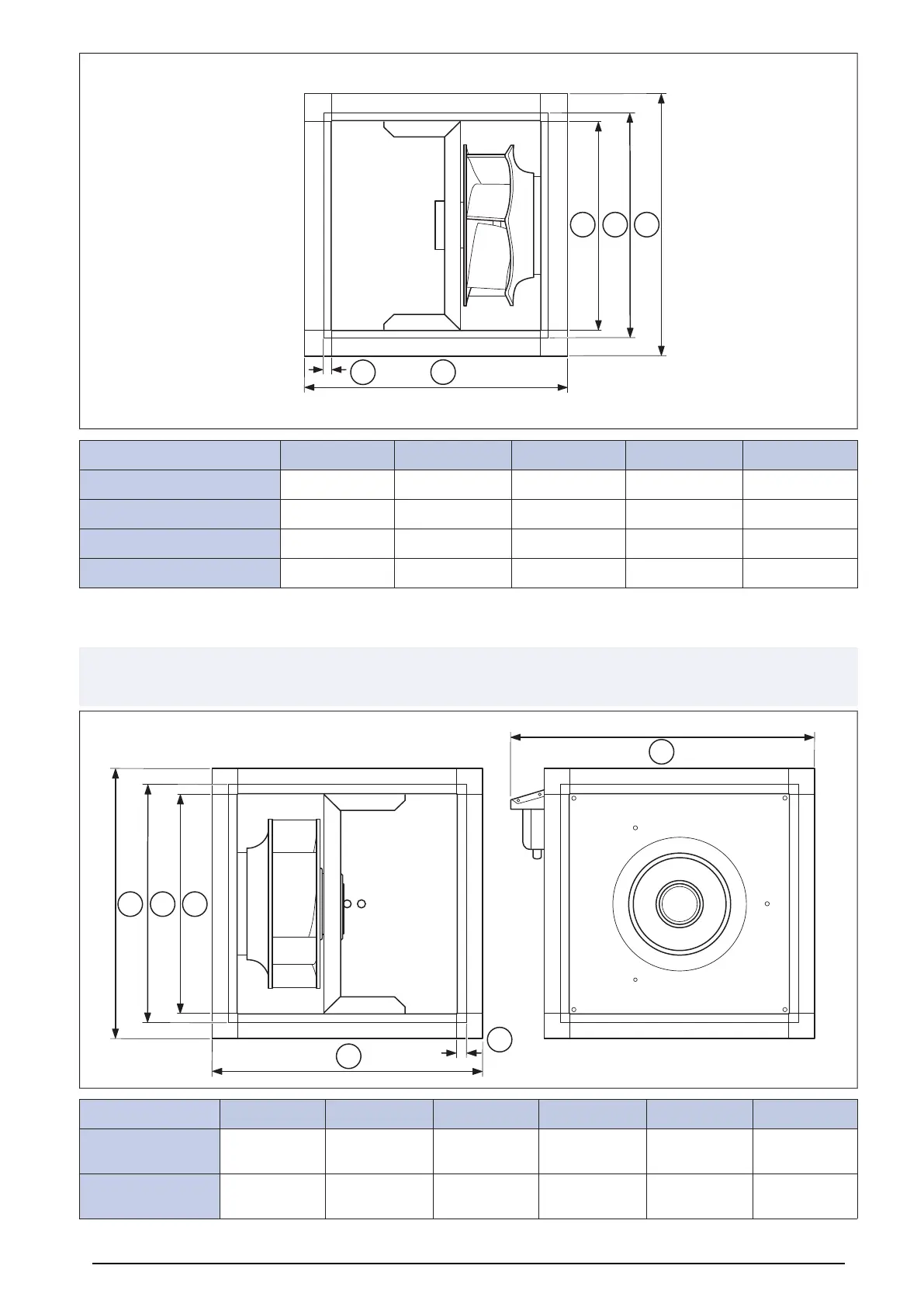

SystemAir MUB Multibox - Product Dimensions MUB-CAV;VAV Fans

C ED
B
A
A B C D E
MUB 025 315/355 21 520 378 420 520
MUB 042 400/450/500 21 690 548 590 690
MUB 062 560/630 21 820 678 720 820
MUB 100 630/710 21 1020 878 920 1020
12.2.2 Product dimensions MUB-CAV/VAV fans
Note:
If the unit of measure is not specified, the dimensions are given in millimetres.
CBA
F
D
E
A B C D E F
MUB-CAV/VAV 025
315/355
520 420 378 520 21 606
MUB-CAV/VAV 042
400/450/500
690 590 548 690 21 776
18
