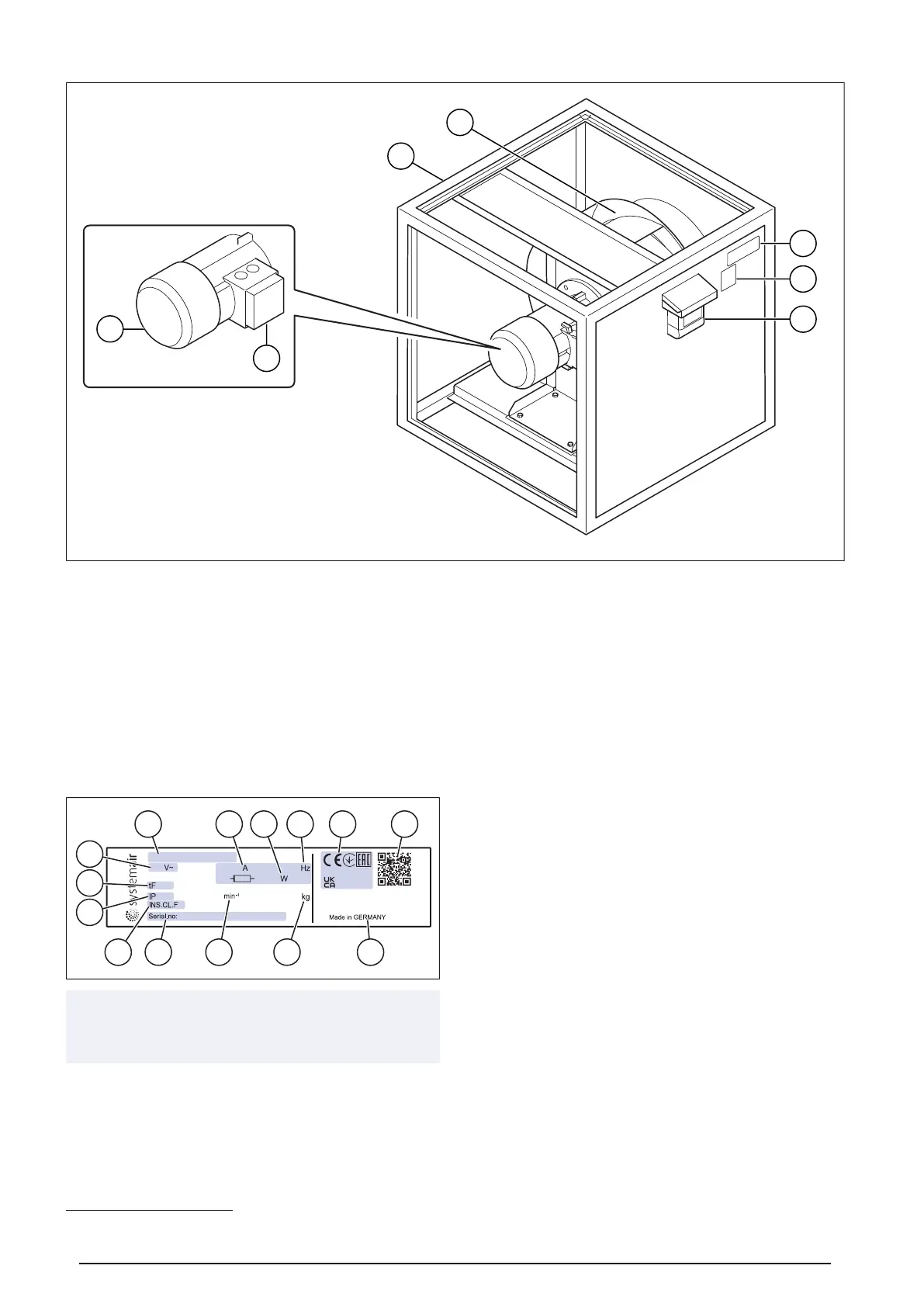

1.4.2 Product overview MUB fans, MUB-CAV/VAV fans, and MUB/F fans
2
5
4
3
6
7
1
1. Casing
2. Fan impeller
3. Name plate
4. Airflow direction arrow
5. Pressure controller (only on MUB-CAV/VAV)
6. Motor
7. Motor connection box (only on MUB and MUB/F)
1.5 Name plate
1
7
8
9
10 12
13
2 3 4 5 6
14
11
Note:
The data on the name plate applies to “standard air” that is
specified in the standard ISO5801.
1. Type designation: Product name, dimension and motor
type. Refer to 1.5.1 Type designation page 4.
2. Current, A
3. Input power, W
4. Frequency, Hz
5. Certifications
6. Scannable code
1
7. Voltage, V
8. Maximum temperature of transported air, °C
9. IP class, enclosure class
10. Insulation class
11. Serial number: part number/production number/produc-
tion date
12. Nominal fan speed
13. Weight, kg
14. Country of production
3
1. Use a mobile device to scan the scannable code and go to the Systemair documentation portal for more documentation and document
translations.
