SystemAir MUB Multibox - Product Dimensions MUB;T ECO Fans

A B C D E F G
MUB/T-S 062
500 D4
820 678 720 820 1034 1” (inch) 21
MUB/T-S 062
560 D4
820 678 720 820 1070 1” (inch) 21
MUB/T-S 062
500 EC
820 678 720 820 1012 1” (inch) 21
MUB/T-S 062
560 EC
820 678 720 820 1050 1” (inch) 21
MUB/T-S 100
630 D4
1020 878 920 1020 1201 1” (inch) 21

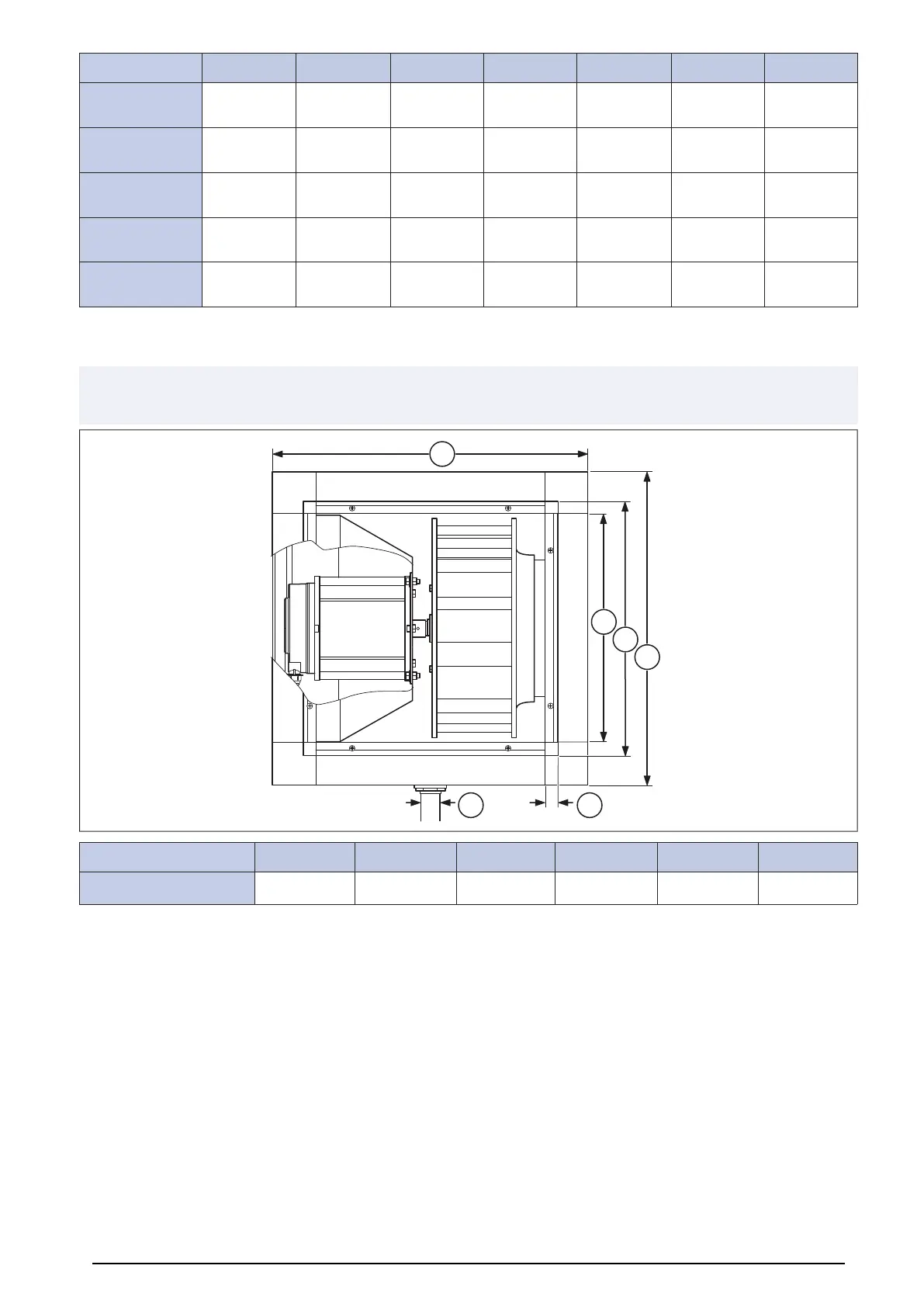

12.2.6 Product dimensions MUB/T ECO fans
Note:
If the unit of measure is not specified, the dimensions are given in millimetres.
FE
A
D
C
B
A B C D E F
MUB/T 355 D4 ECO
520 378 420 520 1” (inch) 21
