SystemAir MUB Multibox - Product Dimensions MUB;F Fans

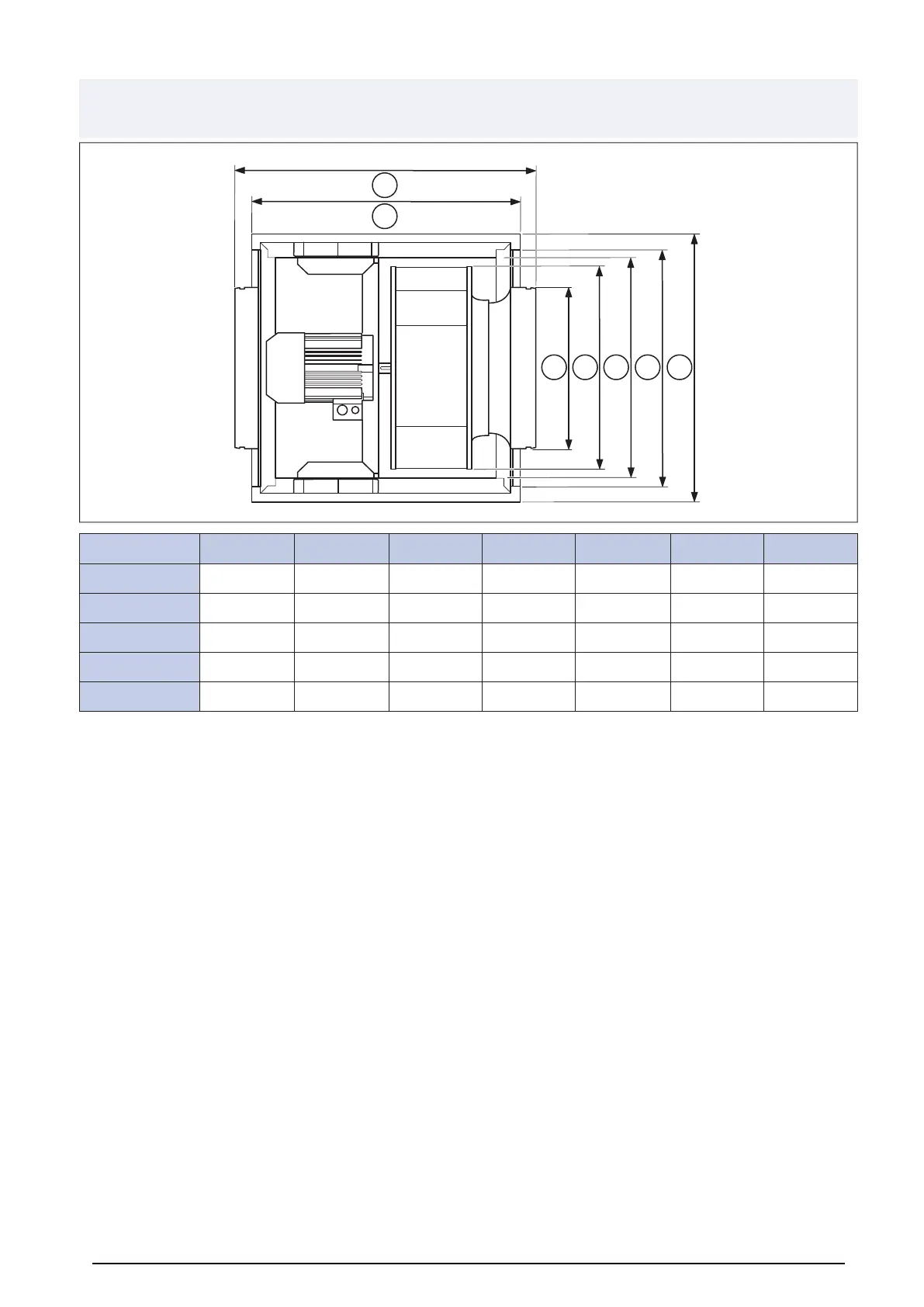

12.2.4 Product dimensions MUB/F fans
Note:
If the unit of measure is not specified, the dimensions are given in millimetres.
GEDC F
A
B
A B ØC ØD ØE F G
MUB/F 042 400 783 670 400 410 548 590 670
MUB/F 042 450 783 670 400 454 548 590 670
MUB/F 062 500 915 800 560 520 676 720 800
MUB/F 062 560 915 800 560 570 676 720 800
MUB/F 062 630 915 800 630 650 676 720 800
