SystemAir MUB Multibox - Product Dimensions MUB;T-S Fans

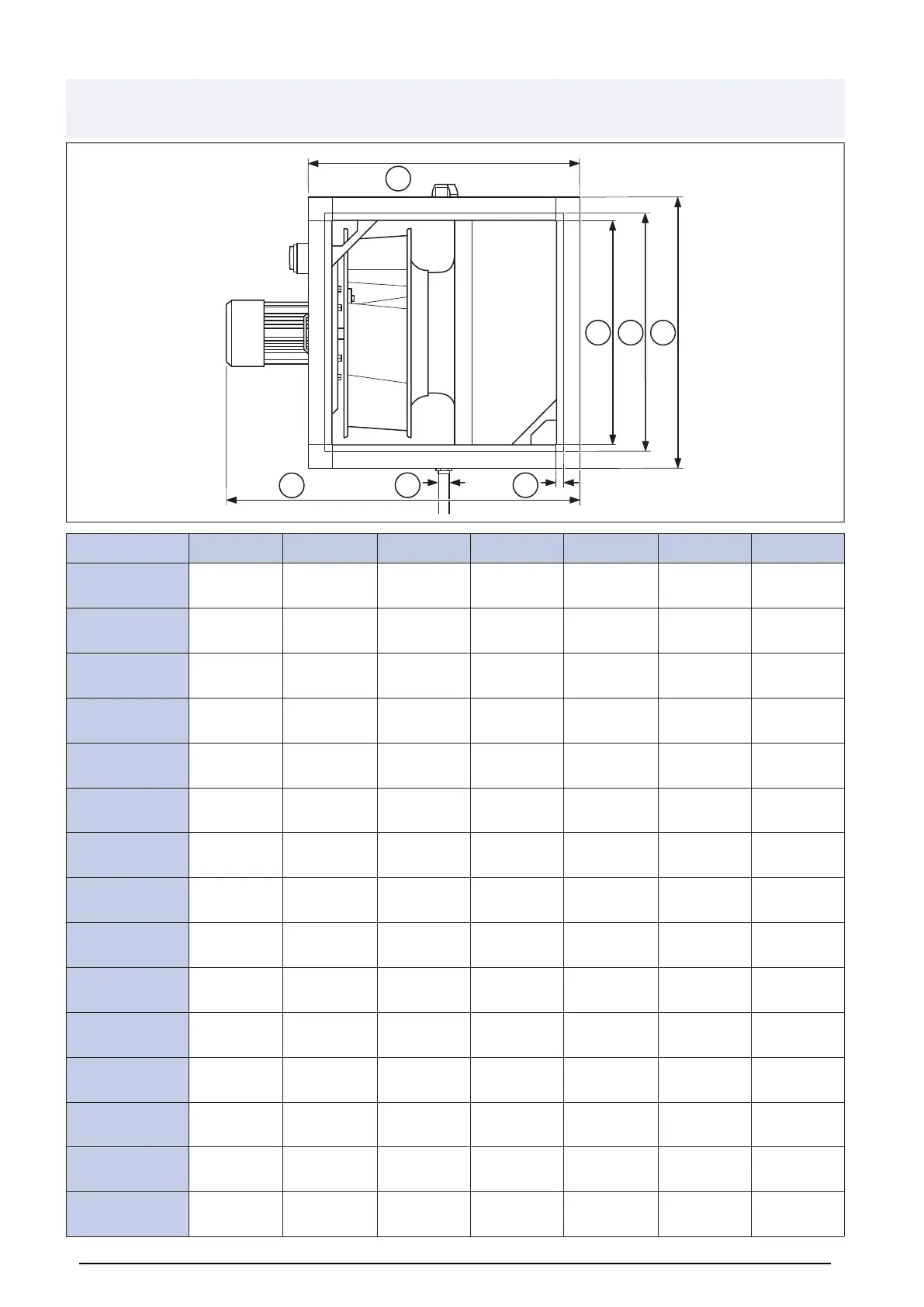

12.2.5 Product dimensions MUB/T-S fans
Note:
If the unit of measure is not specified, the dimensions are given in millimetres.
DCB
GF
A
E
A B C D E F G
MUB/T-S 025
315 D2
520 378 420 520 730 1” (inch) 21
MUB/T-S 025
315 D4
520 378 420 520 684 1” (inch) 21
MUB/T-S 025
315 EV
520 378 420 520 699 1” (inch) 21
MUB/T-S 025
315 EC
520 378 420 520 676 1” (inch) 21
MUB/T-S 025
315 EC-L
520 378 420 520 684 1” (inch) 21
MUB/T-S 042
355 D4
690 548 590 690 790 1” (inch) 21
MUB/T-S 042
355 EV
690 548 590 690 805 1” (inch) 21
MUB/T-S 042
400 D4
520 378 420 520 684 1” (inch) 21
MUB/T-S 042
400 EV
690 548 590 690 859 1” (inch) 21
MUB/T-S 042
450 D4
690 548 590 690 882 1” (inch) 21
MUB/T-S 042
450 EV
690 548 590 690 883 1” (inch) 21
MUB/T-S 042
355 EC
690 548 590 690 782 1” (inch) 21
MUB/T-S 042
400 EC
690 548 590 690 846 1” (inch) 21
MUB/T-S 042
450 EC
690 548 590 690 852 1” (inch) 21
MUB/T-S 042
450 EC-K
690 548 590 690 888 1” (inch) 21
21
