Portbase User Guide
3010F Models

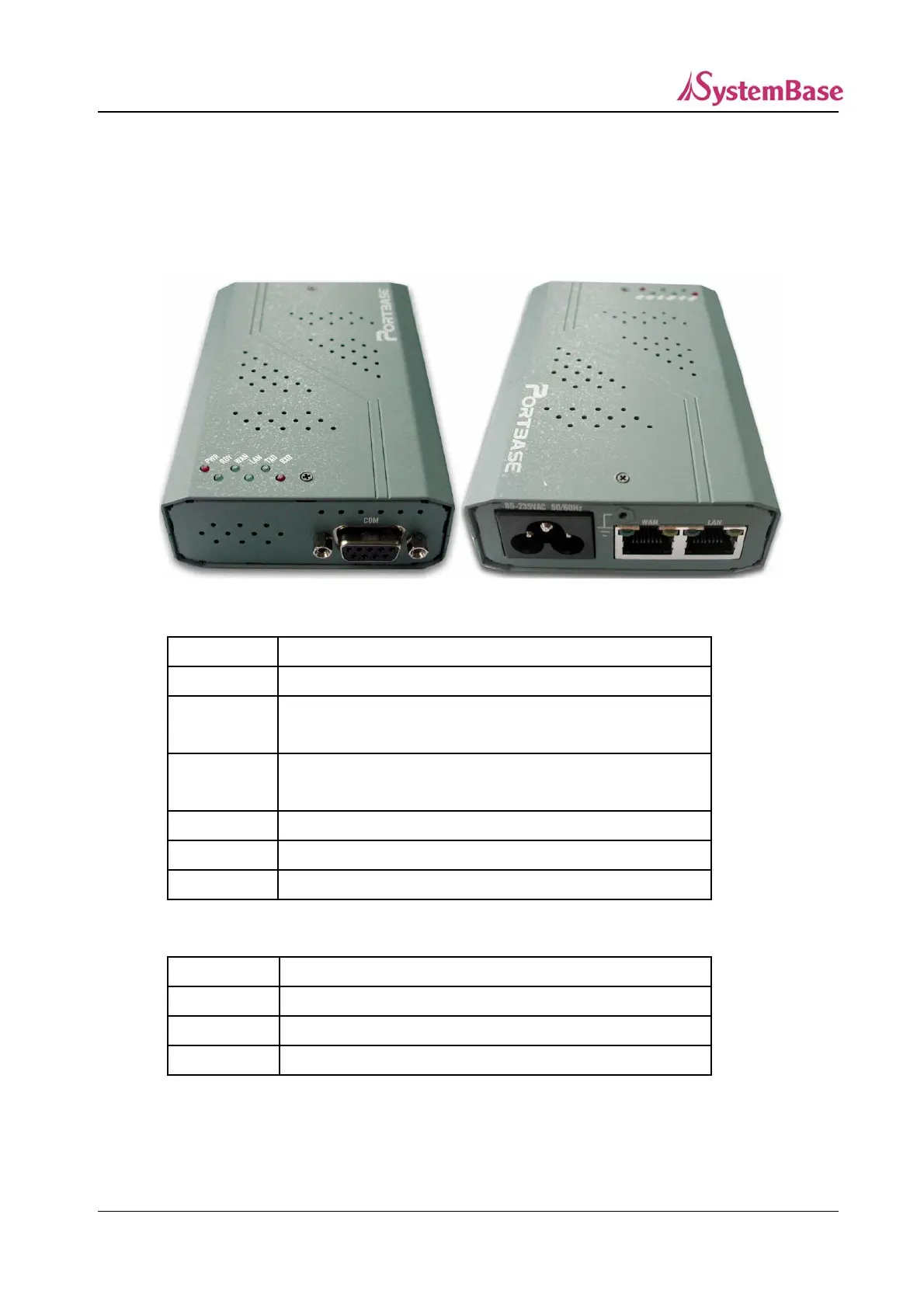

Front
PWR Red light when power is on
RDY Green light when firmware is ready (blinks with errors)
WAN
Green light when 10/100Mbps network connection is
detected.
LAN
Green light when 10/100Mbps network connection is
detected.
RxD Red light blinking when serial data is received.
TxD Green light blinking when serial data is transmitted.
COM DB-9 (Female) serial port for RS232/422/485
Rear
PWR Socket for 100-220v AC, 50-60Hz power supply
LAN 10/100 Mbps Ethernet RJ-45 (Secondary LAN Port)
WAN 10/100 Mbps Ethernet RJ-45 (Primary LAN Port)
Reset Hardware reset button (at the bottom of the device)
