Portbase User Guide

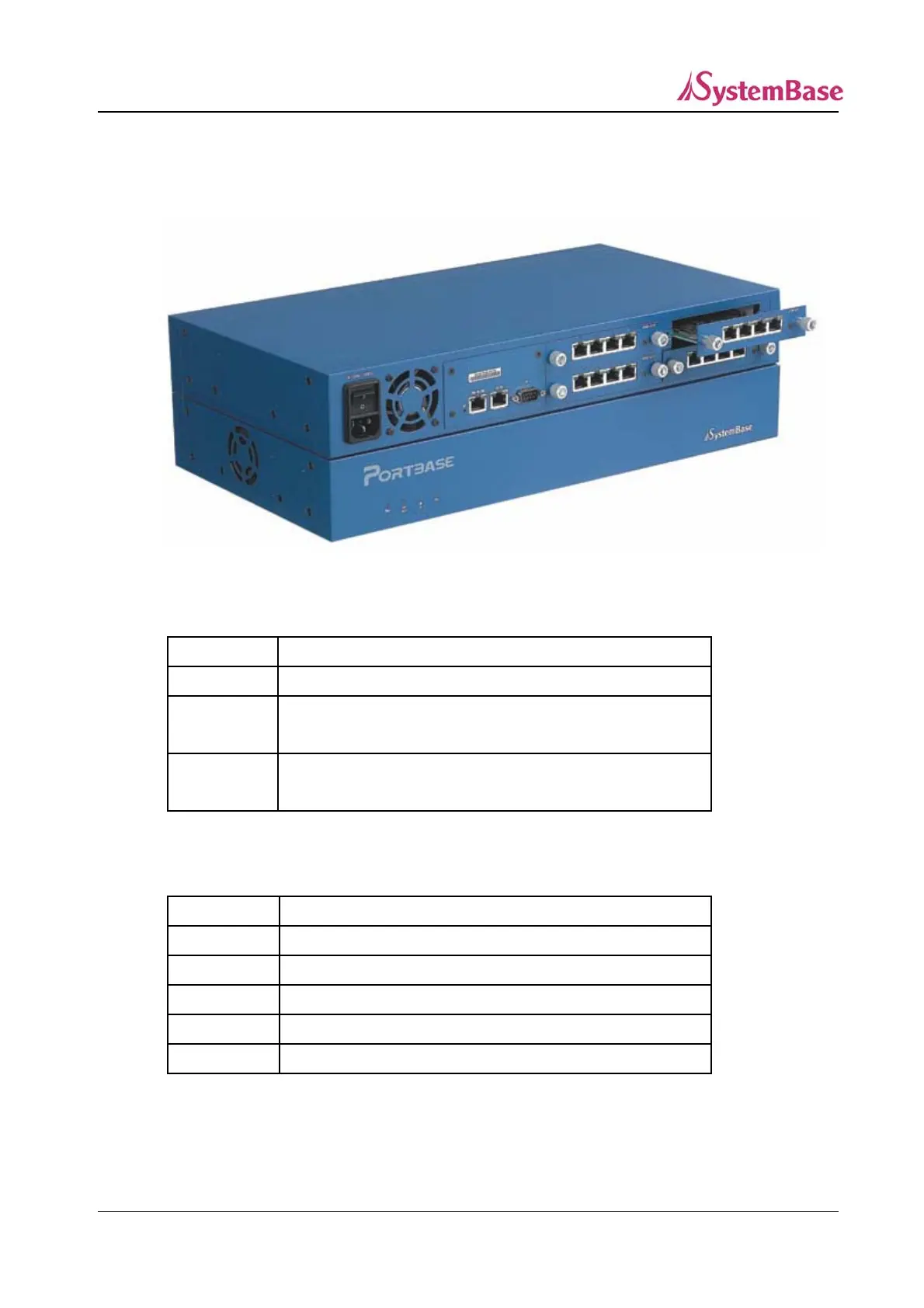

3160 Models (Expansion type)
Front
PWR Red light when power is on
RDY Green light when firmware is ready (blinks with errors)
WAN
Green light when 10/100Mbps network connection is
detected.
LAN
Green light when 10/100Mbps network connection is
detected.
Rear
PWR Socket for 100-220V AC, 50-60Hz power supply
WAN 10/100 Mbps Ethernet RJ-45 (Primary LAN Port)
LAN 10/100 Mbps Ethernet RJ-45 (Secondary LAN Port)
Reset Hardware reset button
COM Console serial port for environment setting
Serial 4-port RJ-45 socket for serial ports (RS232/422/485)
