Portbase User Guide
3010M Models

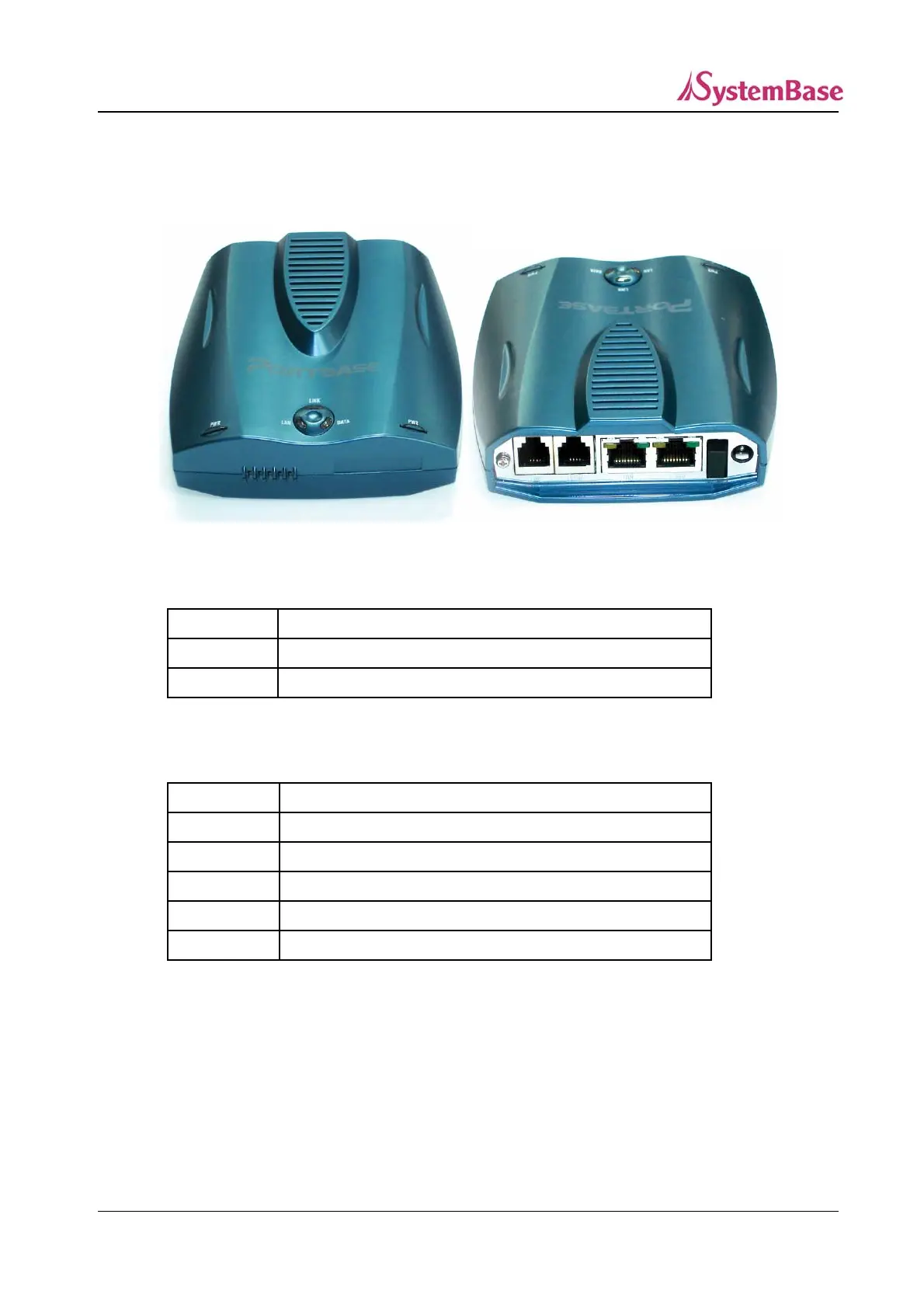

Front
PWR Red light when power is on
RDY Green light when firmware is ready (blinks with errors)
SRL Modem Hook, Modem Data Tx/Rx
Rear
PWR Socket for DC 5V power supply
PWR SW Power Switch
Phone/Line Phone port /RJ-11 PSTN port
WAN 10/100 Mbps Ethernet RJ-45 (Primary LAN Port)
Reset Hardware reset button (at the bottom of the device)
COM 1 RJ-45 serial port for RS232
8
