Discovery TGA™ Getting Started Guide Page 39

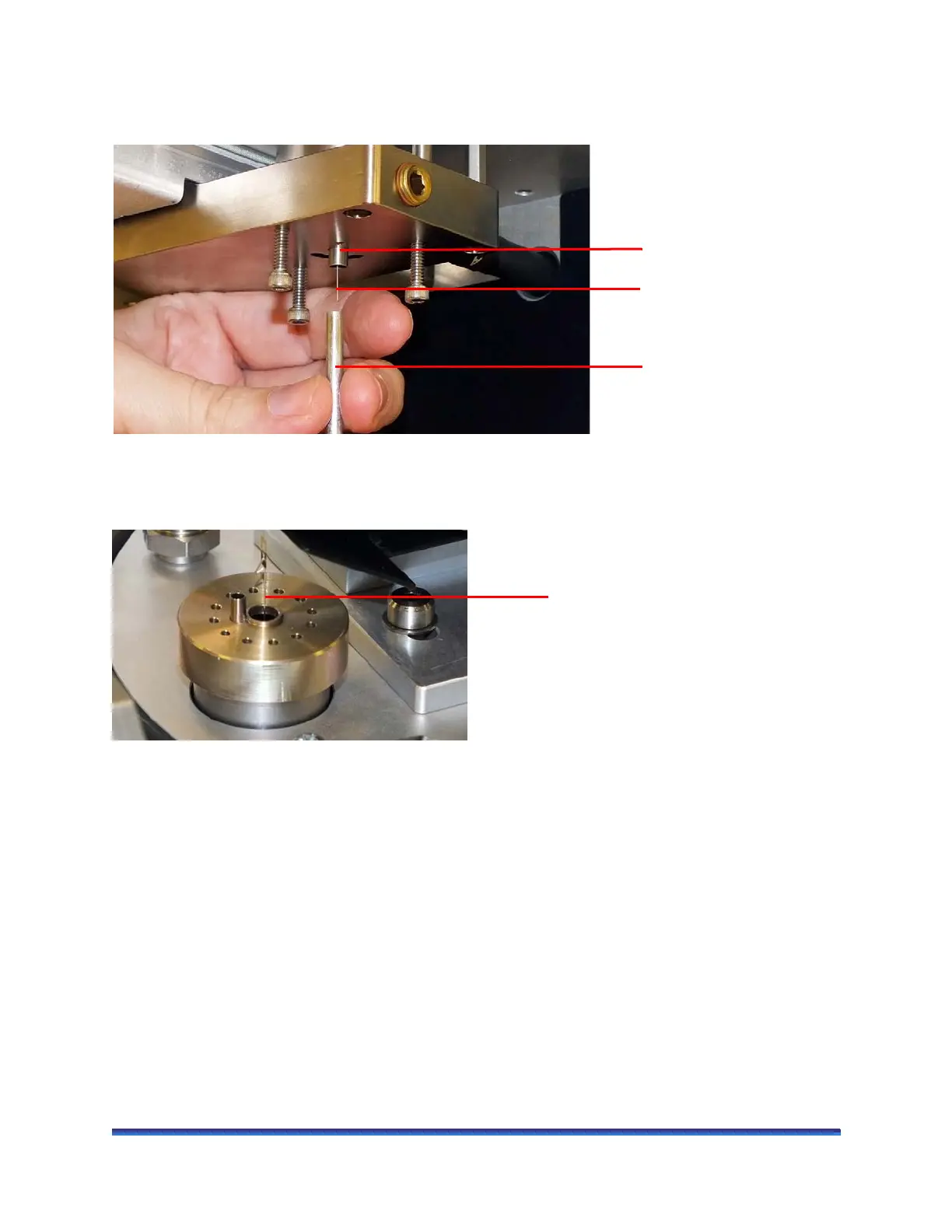

Figure 18 Inserting tare hang-down wire into installation tool.
6 Insert the wire and installation tool vertically into the tare tube, being careful not to bend the wire.
Figure 19 Inserting hang-down wire into tare tube.
7 Continue to raise it slowly until the top of the wire protrudes from the opening in the purge control cap.
Be sure to hold the installation tool in place, as it will fall out of the tare tube opening if released.
Figure 20
8 Using tweezers, gently hang the double-bend hook (pointing to the left) on the hang-down loop. Maneuver
the hook until it is fully inserted through the loop. Be very careful to avoid bending the hang-down loop.
9 Remove the tare hang-down installation tool.
Tare tube
Tare hang-down wire with
double bend hook at top
Tare installation tool
Double bend hook on tare hang-down wire
