Discovery TGA™ Getting Started Guide Page 38
Installing the Hang-Down Wires
The procedures below describe how to install the tare and sample hang-down wires. The following proce-
dures assume that the instructions found in “Preparing the Discovery TGA for Installation” on page 28
have been completed.
CAUTION: During installation, take care not to bend the hang-down wires or damage the hang-
down loops.
MISE EN GARDE: Pendant l'installation, prenez soin de ne plier les fils suspendus et de ne pas
endommager les boucles suspendues.
Installing the Tare Hang-Down Wire
Install the tare hang-down wire as follows:
1 Verify that the instructions found in “Preparing the Discovery TGA for Installation” on page 28
have
been completed. Both the balance housing cover and balance cover should already be removed at this
point in the installation.

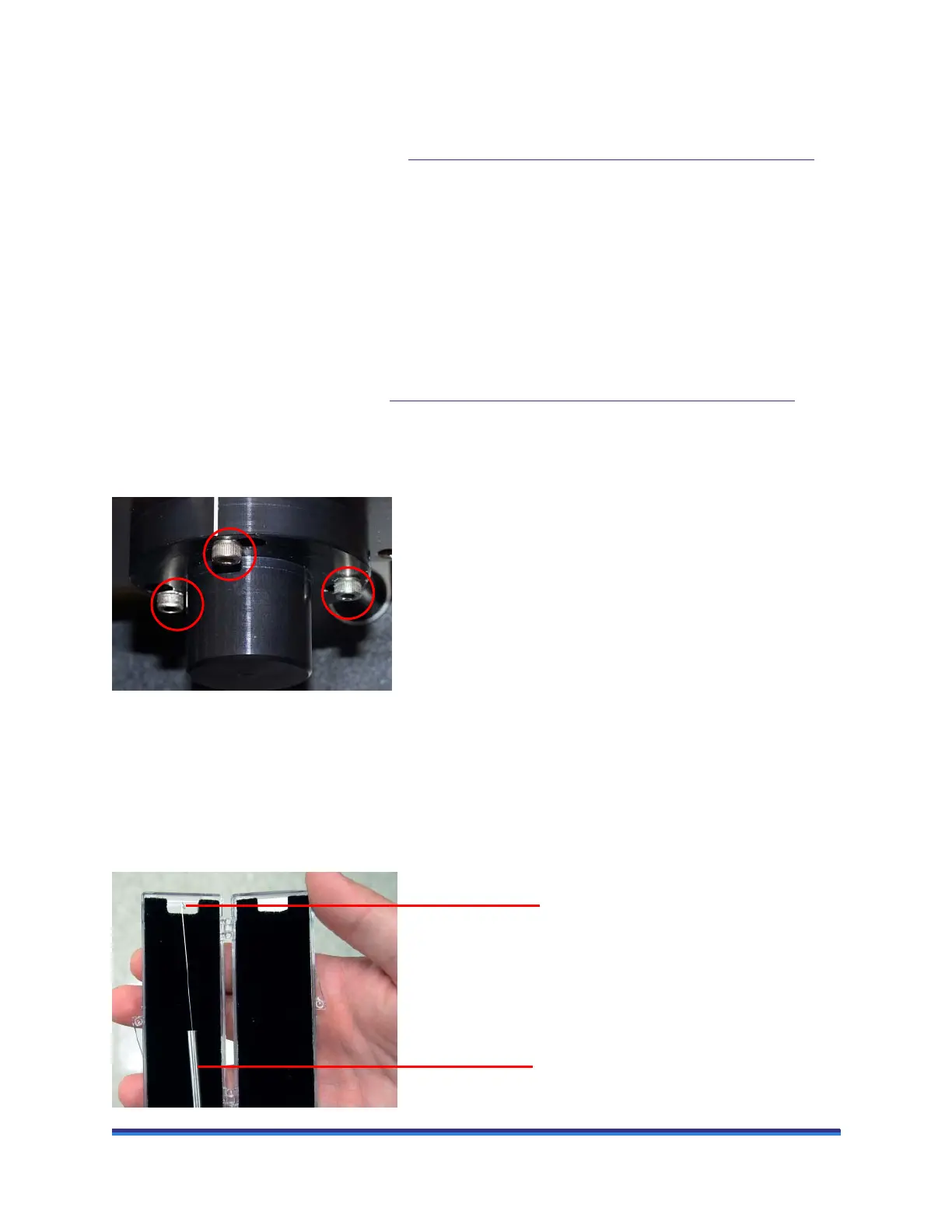

2 Loosen the three screws (circled below) on the tare cap, which is located on the underside of the balance
chamber. Remove the cap and put it aside to reinstall later.
Figure 17 Removing the tare cap.
3 Locate the tare hang-down wire and tare hang-down installation tool in your TGA Accessory Kit. The
tare hang-down wire is the shorter of the two wires. For now, leave the tare hang-down wire in its case.
4 Position the hang-down wire case so that the wire’s double bend hook is at the top.
5 With the tare hang-down wire still in its case, insert the bottom of the wire into the tare hang-down
installation tool, as shown below. Then remove the installation tool and wire from the case.
Double bend hook
Installation tool
