Discovery TGA™ Getting Started Guide Page 48
Installing the Lower Furnace Assembly on the TGA 5500
After the hang-down wires have been properly aligned, follow these steps to install the lower furnace
assembly.
1 Close the furnace completely.
2 Turn off the instrument.
3 Locate the lower furnace assembly in the accessory kit.
4 Carefully remove the lower furnace assembly from the plastic shipping tube.
5 Orient the lower furnace assembly (shown below) so that the air cool inlet points to the left as you slide
it up into the bottom of the furnace.
Figure 35 Lower furnace assembly parts identification.

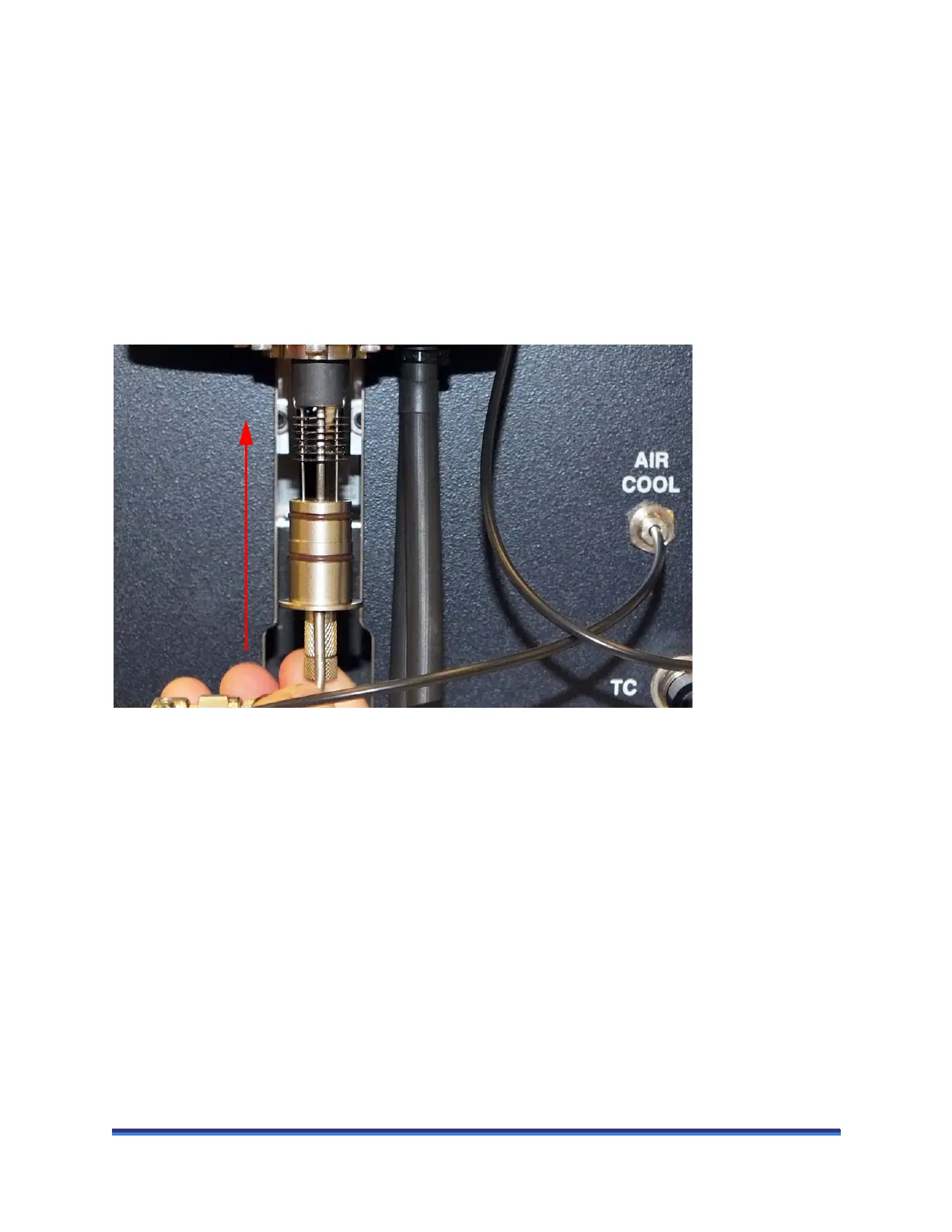

6 Raise the lower furnace assembly until it goes all the way inside and until only the thumbscrew shows
on the outside. The O-ring will hold the furnace assembly in place.
7 Turn the thumbscrew to hold the assembly in place.
