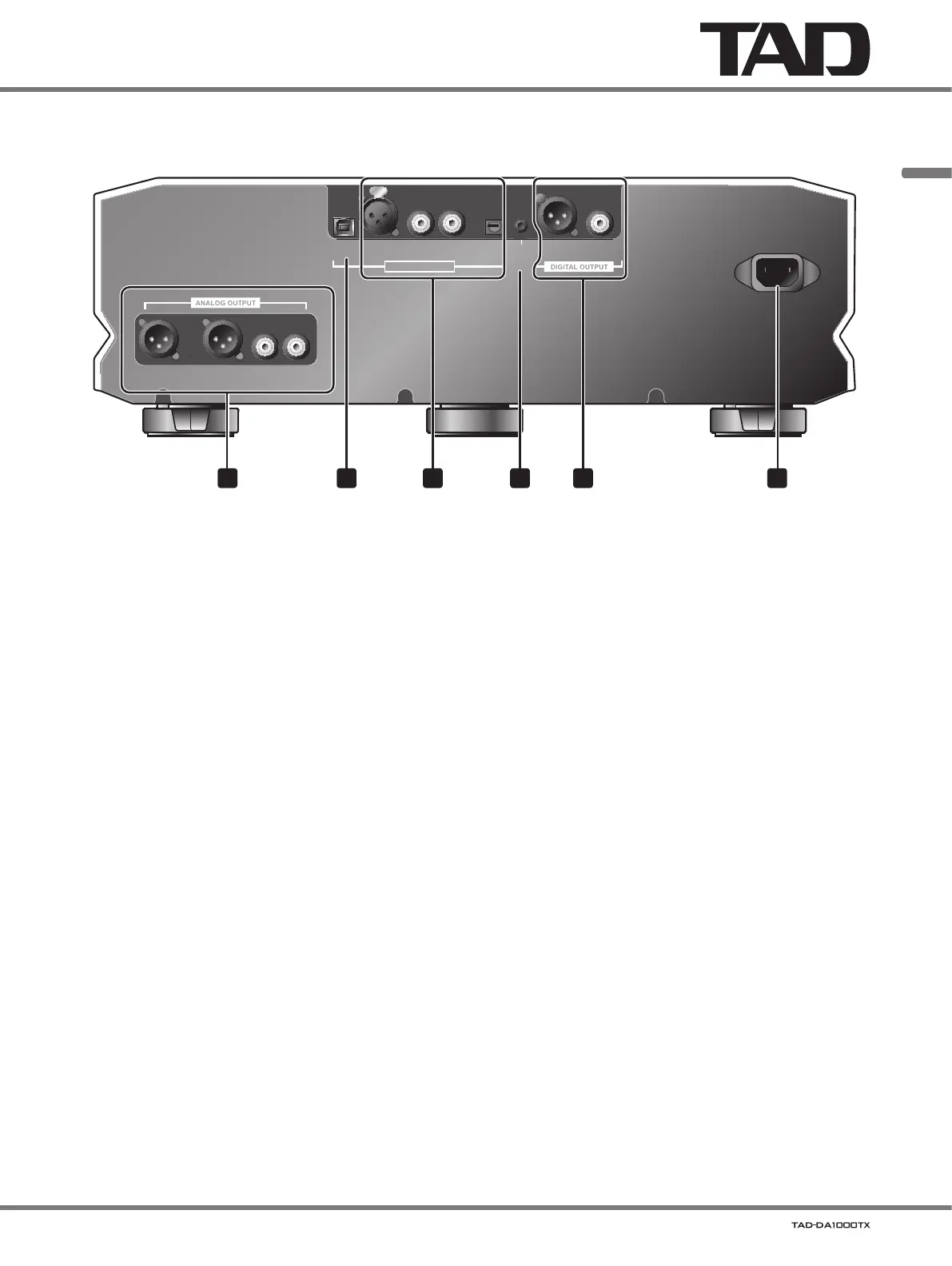

Main unit rear panel
USB XLR COAXIAL OPT
DIGITAL INPUT
XLR COAXIAL
12 V
TRIGGER
OUT
D4D1 D2 D3
BALANCED UNBALANCED
L LR R
AC IN
1 52 43 6
1 ANALOG OUTPUT connectors
Connect to Pre-Amplifier.
•XLR BALANCED type
•RCA UNBALANCED type
2 USB port
Use to connect a USB cable to computer.
3 DIGITAL INPUT connectors
Connect to a component equipped with a digital output
connector.
•XLR (balanced) type (D1)
•COAXIAL type (D2, D3)
•OPT (optical) type (D4)
4 12 V TRIGGER OUT connector
If this device is connected with an external device with
a 12V trigger input terminal, the external device can
be switched over between “Power ON” and “Standby”
by switching over this device between “Power ON” and
“Standby.”
Connector:
Ø 3.5 mm monaural mini-jack
Operating conditions:
When this device is turned ON, “H” is output. When this
device is in the standby mode, “L” is output.
5 DIGITAL OUTPUT connectors
Connect to a component equipped with a digital input
connector.
•XLR (balanced) type
•COAXIAL type
6 AC IN connector
Connect the supplied power cord here.
