Instruction and Operating Manual
TA-U1...U280
Misprints and technical changes reserved
20

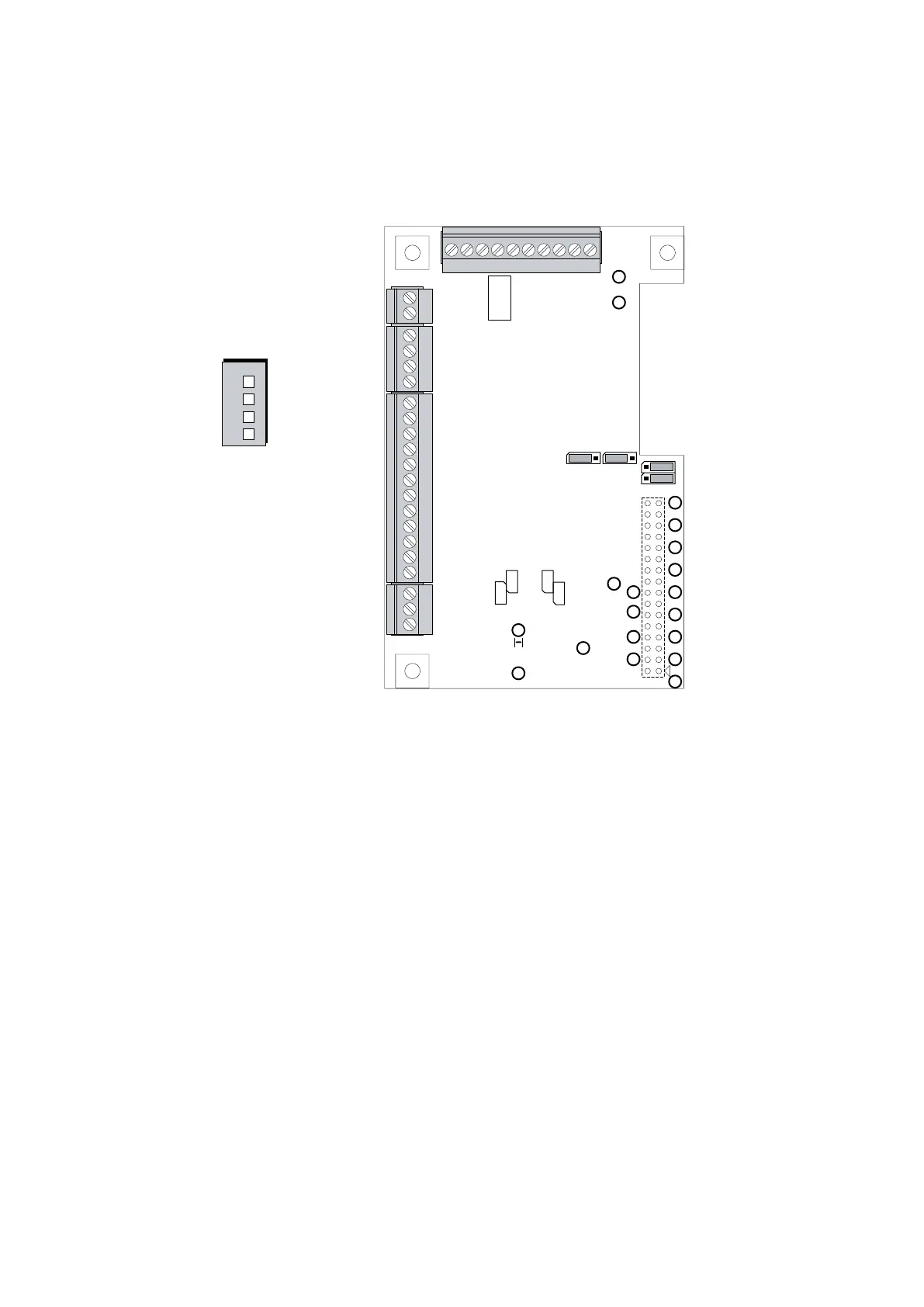

3.3.8 Encoderboard "RS422"
X5 Connection to controlboard
S1 GND Connections of the input terminals
43,45 and 48 (Z,/Z,AB)
BR1 Motor temperature sensor terminal 21
open: thermo switch and PT100
closed: KTY and PTC
BR2 Motor temperature sensor terminal 22
open: thermo switch and PT100
closed: KTY and PTC
BR3 Frequency output terminal 49, track A
Pin 1-2 closed: actual speed value,
factory adjustment
Pin 2-3 closed: special funktion
BR4 Frequency output terminal 50, track B
Pin 1-2 closed: actual speed value,
factory adjustment
Pin 2-3 closed: special funktion
BR5 Zero point signal Z2
Pin 1-2 closed: Zero point signal from
encoder
Pin 2-3 closed: machine proximiti switch,
factory adjustment
BR6 Zero point signal Z1
Pin 1-2 closed: Zero point signal from
encoder
Pin 2-3 closed: machine proximiti switch,
factory adjustment
BR7 Motor temperature sensor terminal 21
open: thermo switch and PT100
closed: KTY and PTC
BR8 Motor temperature sensor terminal 22
open: thermo switch and PT100
closed: KTY and PTC
LD1 Green - +5V
33
34
35
32
30
29
28
27
26
25
24
41
40
39
38
37
36
23
22
21
31
51
50
48
47
46
45
44
43
42
49
4
3
2
1
S1
X5
LD1
Encoder RS422 0402
TP16
TP15
TP13
TP10
TP8
TP7
TP18
TP12
TP1
TP2
BR3 BR4
DIP-Schalter S1
(factory adjustment)
refer to chapter 5.3.2
OFFON
1
2
3
4
0 000
BR8
BR2
BR5
BR6
BR1
BR7
Ilustration of Jumper BR on board, is factory adjustment
1
2
3
1
2
3
1
2
3
