7. Installation
7.1

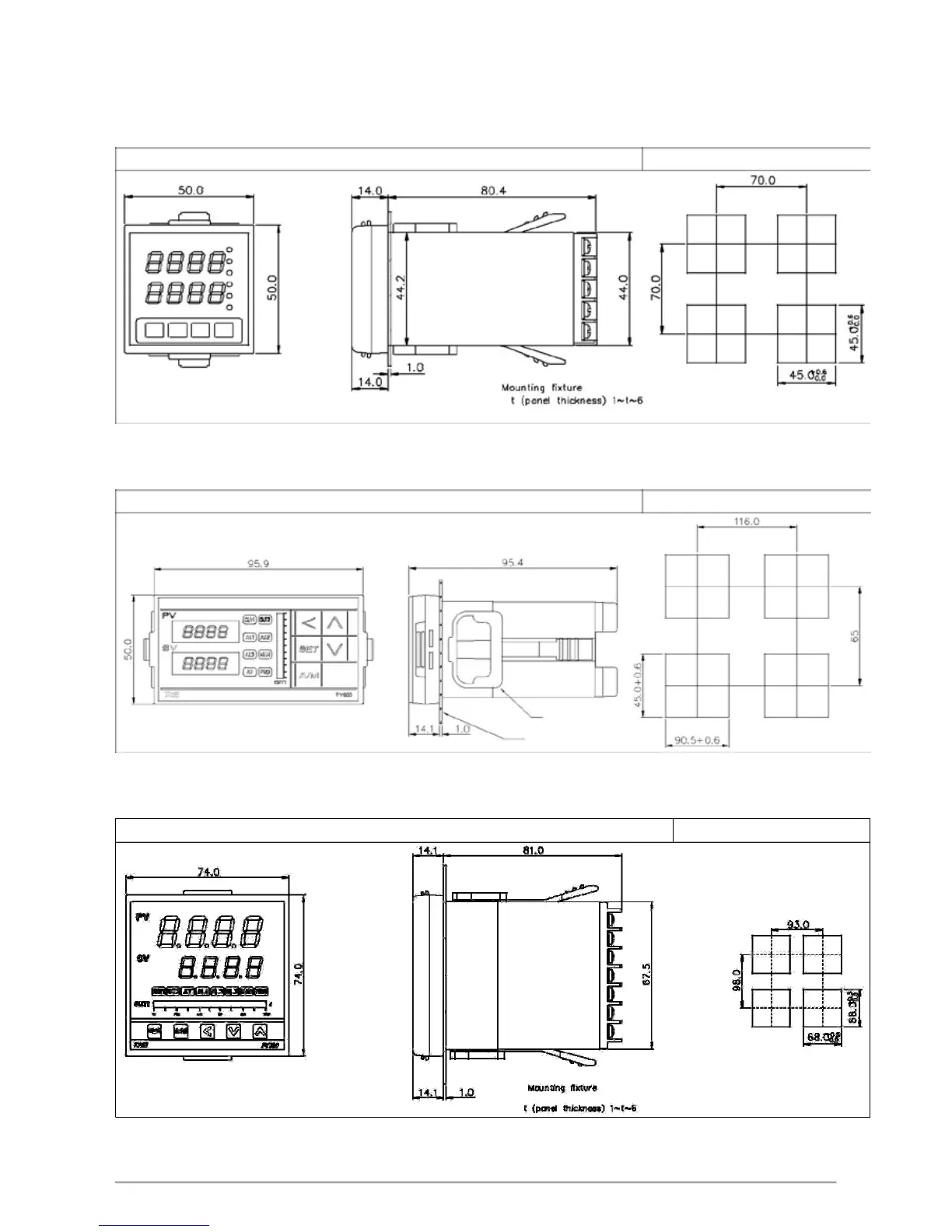

FY400/FU400/FU48 Dimensions
(Unit: mm)
gnitnuom laudividnI snoisnemiD
7.2
FY600 Dimensions
(Unit: mm)
gnitnuom laudividnI snoisnemiD
Mounting fixture
t (panel thickness) 1~t~6
7.3
FY700/FU72 Dimensions
(Unit: mm)
Dimensions Individual mounting
FY/FU operation manual 10
