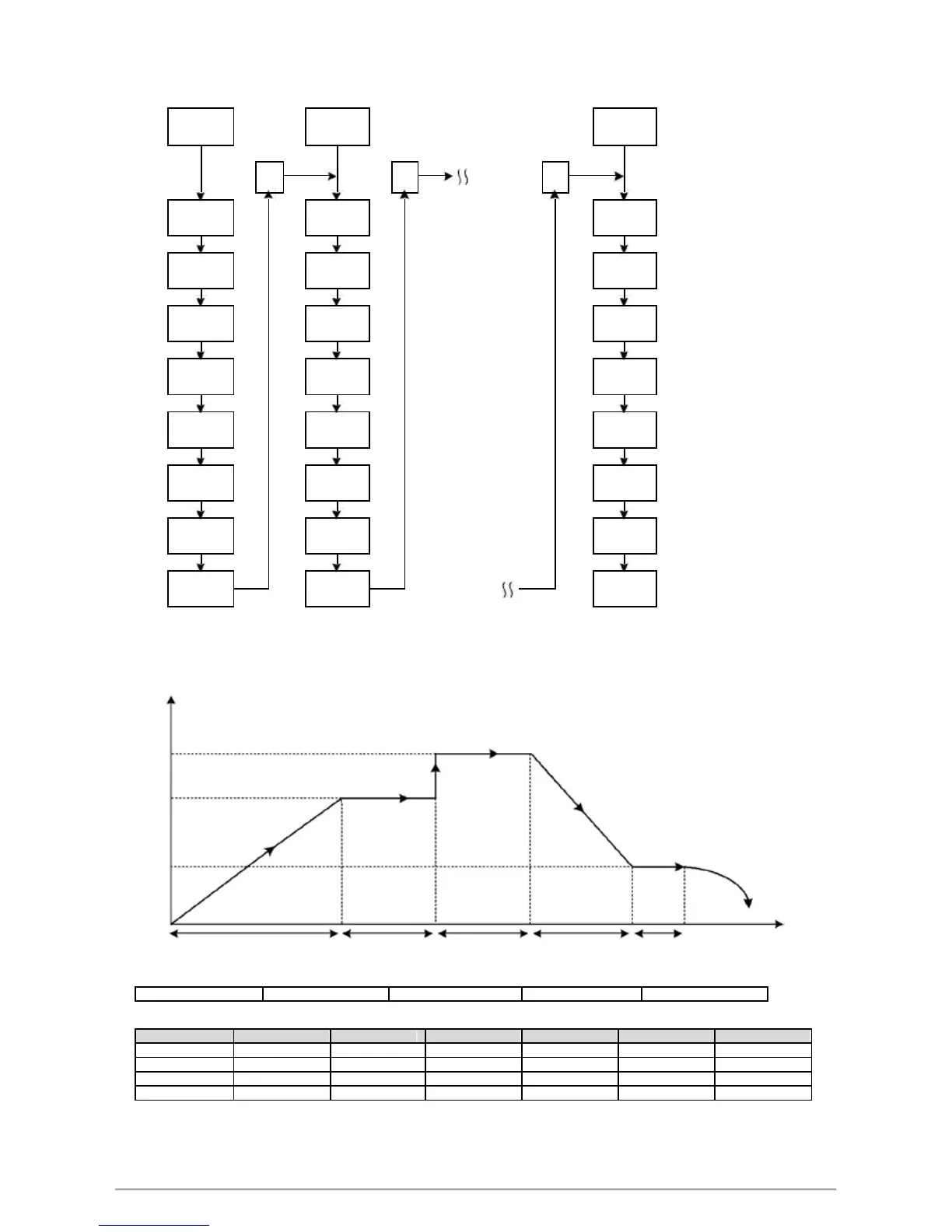

13.5 Program Execution Flow
The program can be up to 18 patterns. If you connect all the patterns, up to 144 segments.
PTN _1
link the next
PTN _2
link the next
link the
next
PTN _18
patterns patterns
patterns
SEG_1 SEG_1 SEG_1
SEG_2 SEG_2 SEG_2
SEG_3 SEG_3 SEG_3
SEG_4 SEG_4 SEG_4
SEG_5 SEG_5 SEG_5
SEG_6 SEG_6 SEG_6
SEG_7 SEG_7 SEG_7
SEG_8 SEG_8 SEG_8
13.6 Program Setting Example
In pattern_1 edit program ramp, soak, step and continue
Measured value(PV)
SEG_3
SEG_4
250ºC
SEG_2
200ºC
SEG_5
SEG_1
SEG_6 SEG_7
80ºC
ramp soak soak ramp soak
end
time time time time time
time
60 minutes 30 minutes 30 minutes 40 minutes 20 minutes
Initial setting
SET9.2 = 1 SET8.3 = 0 SET8.1 = 0 SET8.2 = 1 WAIT = 0.5
Program edit
Segment_1 Segment_2 Segment_3 Segment_4 Segment_5 Segment_6 Segment_7
PTN = 1 PTN = 1 PTN = 1 PTN = 1 PTN = 1 PTN = 1 PTN = 1
SV_1 = 200 SV_2 = 200 SV_3 = 250 SV_4 = 250 SV_5 = 80 SV_6 = 80 SV_7 = 0
TM_1 = 60.00 TM_2 = 30.00 TM_3 = 0.00 TM_4 = 30.00 TM_5 = 40.00 TM_6 = 45.00 TM_7 = END
OUT1 = 100.0 OUT2 = 100.0 OUT3 = 100.0 OUT4 = 100.0 OUT5 = 100.0 OUT6 = 100.0 OUT7 = 0.0
