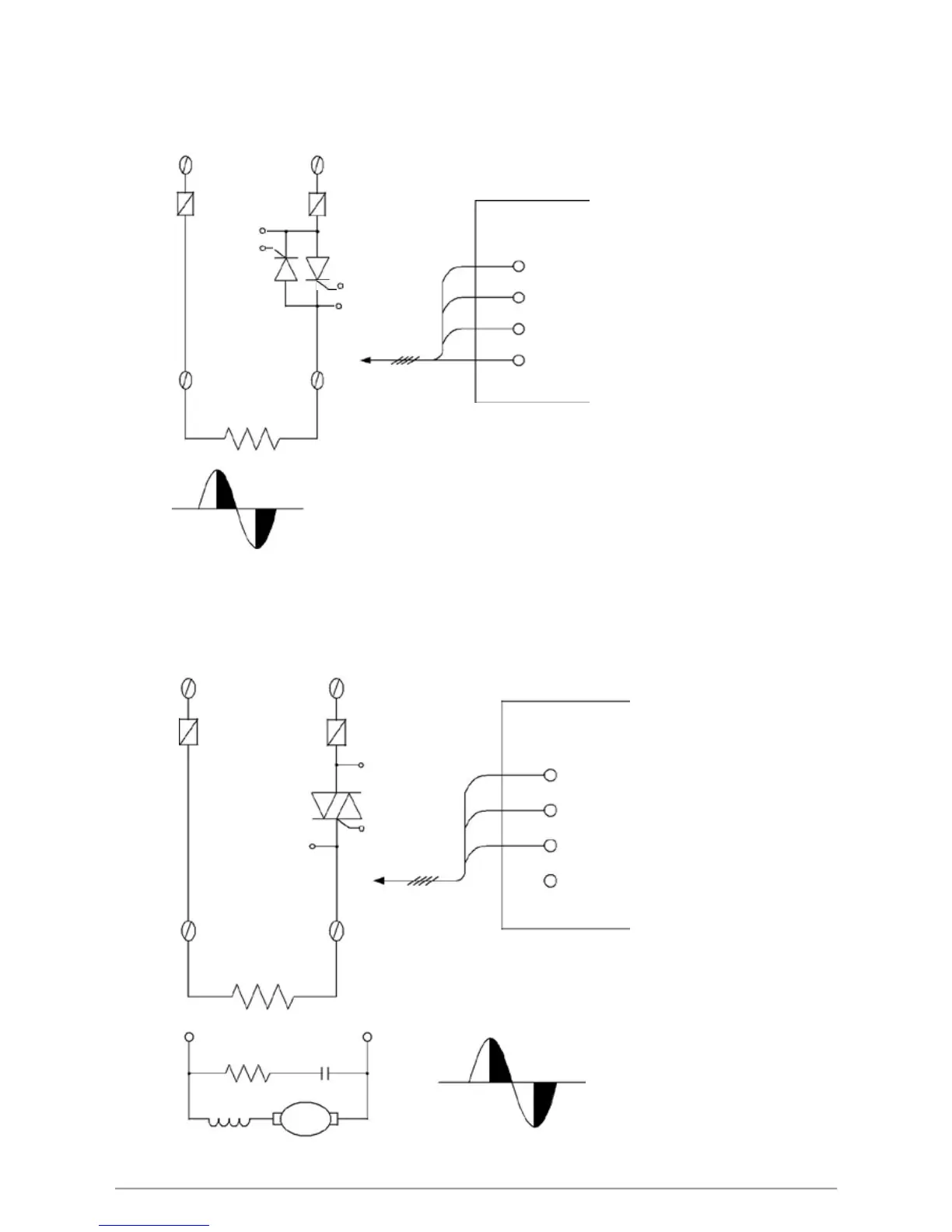

16.5 1ϕ Phase Angle Control (SCR module)
OUT1 : 1Φ SCR phase angle control
Parameter setting : OUTY= 4, CYT1= 0 CLO1
= 80, CHO1 = 4300
Wiring Setup :
S R
Fast Fuse
K2
G2 SCR
Module
G1
K1
U V
負載
Controller
G1
K1
G2
K2
＊＊ Controller source phase must be same as load source phase
16.6 1ϕ Phase Angle Control (TRIAC module)
OUT1 : 1Φ SCR phase angle control
Parameter setting : OUTY= 4, CYT1= 0
CLO1 = 80, CHO1 = 4300
Wiring Setup :
S R
Fast Fuse
Controller
T2 (G2)
TRIAC
G1
Module
K1
G (G1)
G2
T1 (K1)
K2
U V
Load
＊＊ Controller source phase must be same as load source phase
½ W 100Ω 0.1μf / 630V
M
