13. Programmable
Description
Programmable function is SV function that is variable to time, as user can set SV value to their needs according to time-
based variation curve, which is called program setting
1. There are at most 18 sets of pattern setting
2. Every set of pattern can at most have 8 segments
3. Every segment include 4 settings such as ramp, soak, step and continue
4. Pattern can be randomly linked up, as each pattern of program contains 144 segment, at most.

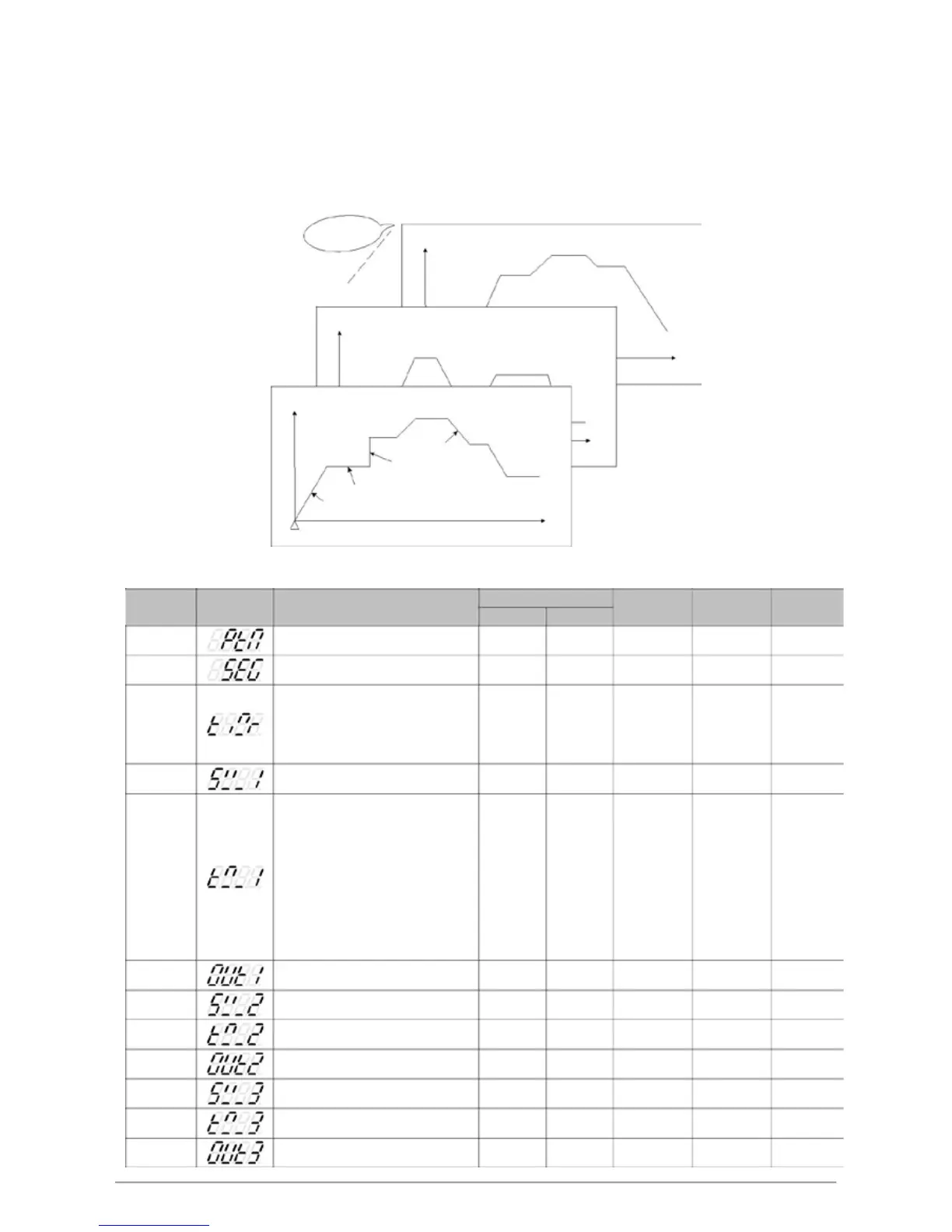

Program No.18
Up to 18 programs
SV
Program No.2
SV
time
第一段 0(起
Program No.1
點)
SV
Every set of pattern can at
most have 8 segments set
time
第一段 0(起
Ramp(down)
點
)
Step
Soak
Ramp(up)
time
Segment 1 (starting point)
Operation started in Program SV mode
13.1
Parameter Setting
Parameter
Symbol Content
Range
Default Level
Hide/
MAX MIN
Display
PTN
Program pattern selection 1~18 18
1 1
Level 1
PROG=ON
SEG
Current program segment display
8 1 1
Level 1
PROG=ON
Current segment remain time display
Upper area：display current
TIMR
segment remain time
99.59
0.00 0.00 Level 1
PROG=ON
Down area：display current
segment executed time
LPSL LPSU VS 1 tnemgeS 1_VS
0.0
Level 1
PROG=ON
Segment 1 execute time setting,
this parameter determines the link
between a segment and a segment
or pattern and pattern
END(-1) : program end in this
TM_1
segment
99.59
-1
0.00 Level 1
PROG=ON
0.00 : program step change in this
segment
0.01~99.58 : program in this
segment execute time
99.59 : program continue execute
this segment no end
OUT1 Segment 1 output limit 100.0
0.0
100.0
Level 1
PROG=ON
LPSL LPSU VS 2 tnemgeS 2_VS
0.0
Level 1
PROG=ON
TM_2 Segment 2 execute time setting 99.59
-1
0.00 Level 1
PROG=ON
OUT2 Segment 2 output limit 100.0
0.0
100.0
Level 1
PROG=ON
LPSL LPSU VS 3 tnemgeS 3_VS
0.0
Level 1
PROG=ON
TM_3 Segment 3 execute time setting 99.59
-1
0.00 Level 1
PROG=ON
OUT3 Segment 3 output limit 100.0
0.0
100.0
Level 1
PROG=ON
47 FY/FU operation manual
