Taie FU86 - Alarm Action Configuration

Example(4) use only SOAK_B (ALD1=19)
Boot completed, the alarm1 is OFF, and the PV is directly controlled at 100 °C. when the PV reaches 100 °C, the temperature is kept
for 10 minutes. after 10 minutes alarm is turned ON and the control function keep ON
Parameter setting
Level Parameter Set value Description
1 SV 100.0 Target temperature
3 ALD1 mrala kaos sa 1LA 01
1 SOAK(AL1) 00.10 10 minute temperature maintain

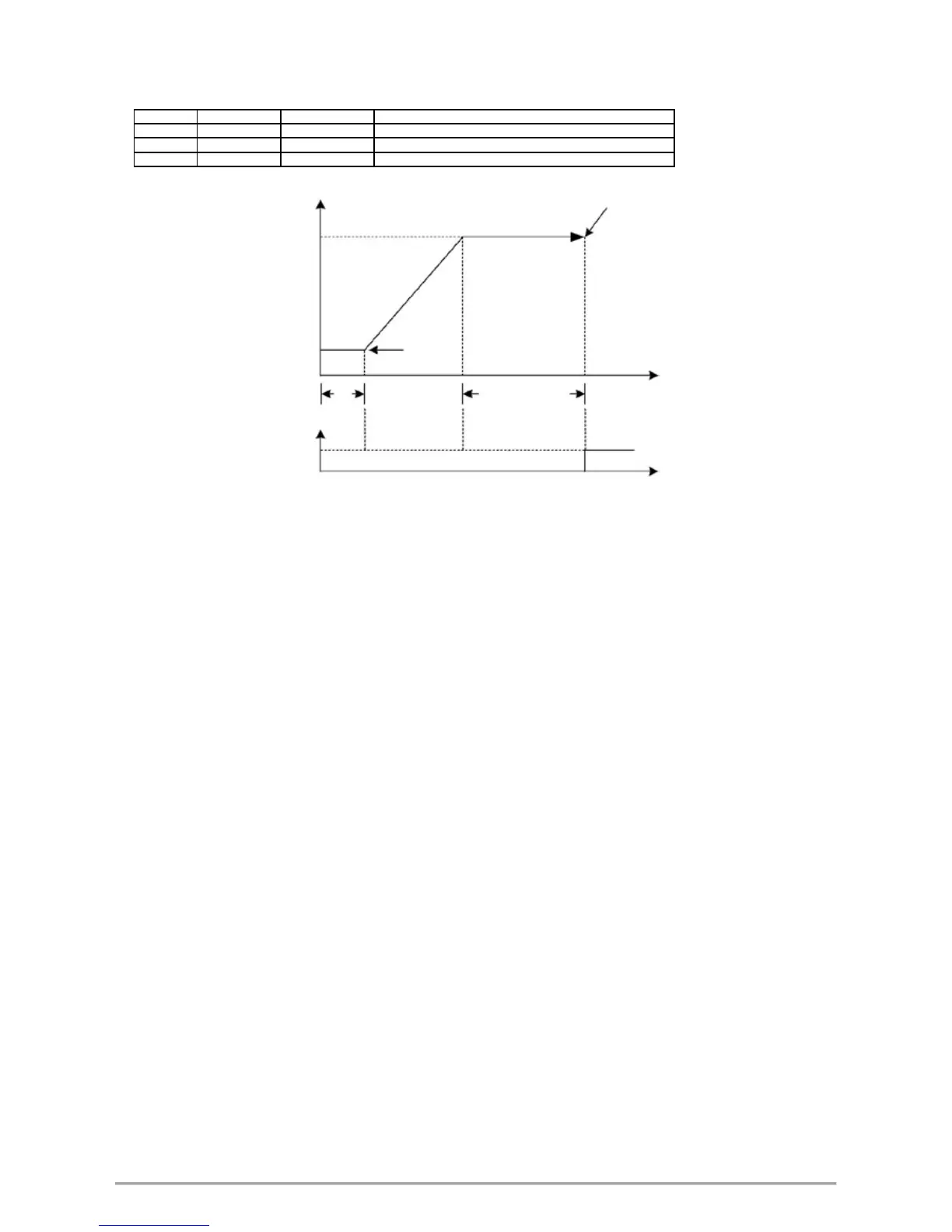

Temperature
Time up
Alarm=ON
100.0
PV
Temperature rise
25.0
Alarm=OFF
PV time chart time
5
SOAK
10 minutes
seconds
Action
ON
A
L1 time char
t
OFF time
FY/FU operation manual 42
