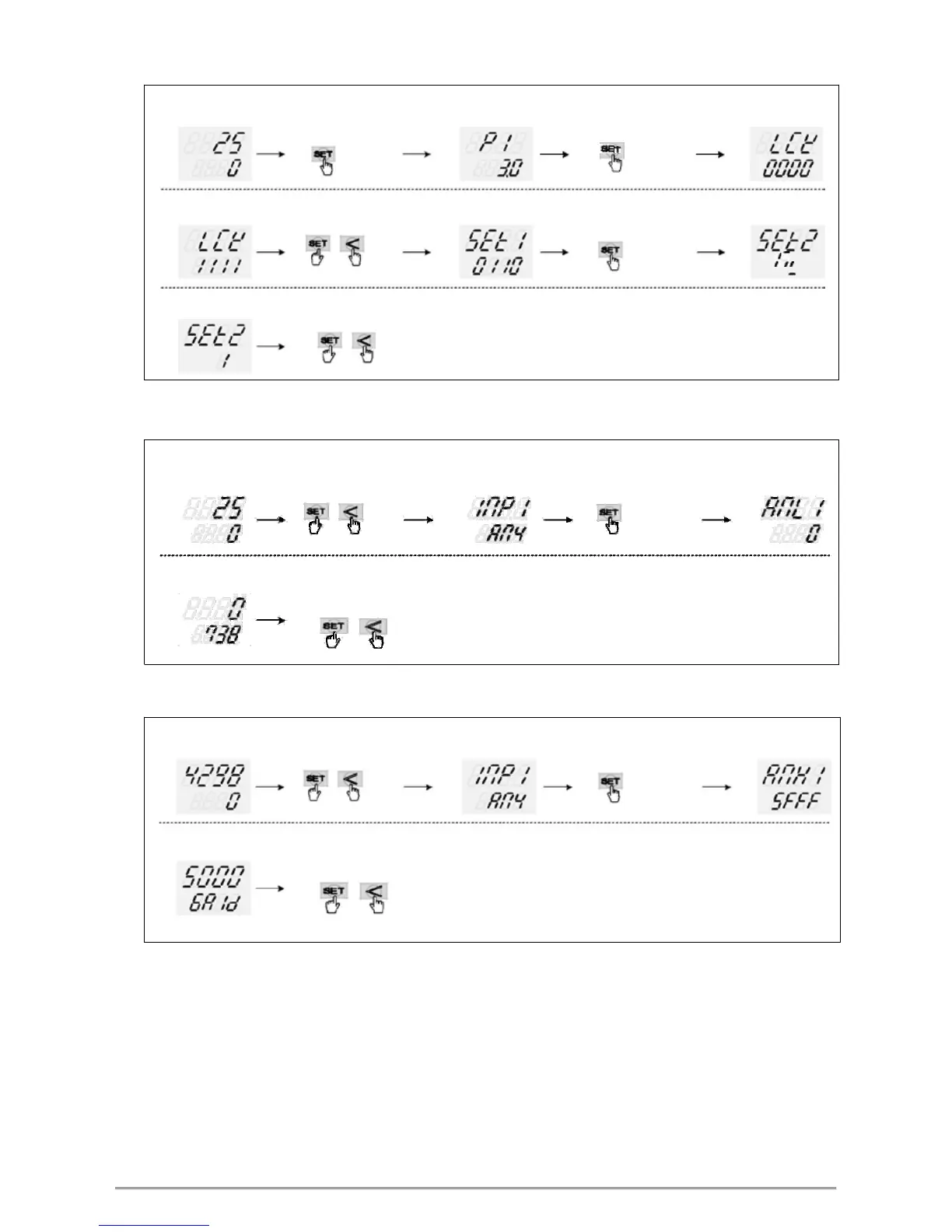

15.4 Steps For Linear Input Calibration
1. Display ANL1、ANH1、DP：
Enter to Level 2
1P wohs rotinom VS/VP
VP VP
press key 3 seconds
VS VS
LCK setting to 1111
Enter to Level 4
show SET1
press key switching to
display＂LCK ＂
PV
SV
SET2 X is
current value
VPsdnoces 3 yek + sserp VP
press key switching to
SV SV
display＂SET2 ＂
SET2_2= 1
open ANL1、ANH1、DP
if SET2_2 setting finish
PV
press + key 3 seconds , return to PV/SV monitor
SV
X X X
PV
SV X X X
※ X is the default value which doest not require modification
2. input 4mA and djust ANL1 calibration values：
PV/SV monitor
Enter to Level 3
show INP1
+ sserp VP
key 3 seconds
PV
press key switching to PV
SV SV
display＂ANL1 ＂
SV
Adjust ANL1 until
PV show 0
hsinif gnittes 1LNA fi VP
SV
press + key 3 seconds , return to PV/SV monitor
※ ANL1 calibration value of each controller is different from the other
3. input 20mA and djust ANH1 calibration values：
PV/SV monitor
Enter to Level 3
show INP1
+ sserp VP
key 3 seconds
PV
press key switching to PV
SV SV
display＂ANH1 ＂
SV
Adjust ANH1 until
PV show 5000
PV
if ANH1 setting fin
ish
SV
press + 3 seconds , return to PV/SV monitor
※ ANH1 calibration value of each controller is different from the other
