Tait TB7100 Fitting Instruction

Multitone Paging Interface Fitting Instruction 19
© Tait Electronics Limited July 2008
1.15 Final Reassembly
1. Ensure all internal cables are connected correctly as shown below.
2. Place the tray cover onto the chassis.
3. Use a Torx T10 torque-driver to fasten the tray cover with the 15
countersunk screws to 4.5lb·in (0.5N·m).
4. Fit the fuse
b at the rear of the Multitone paging transmitter.

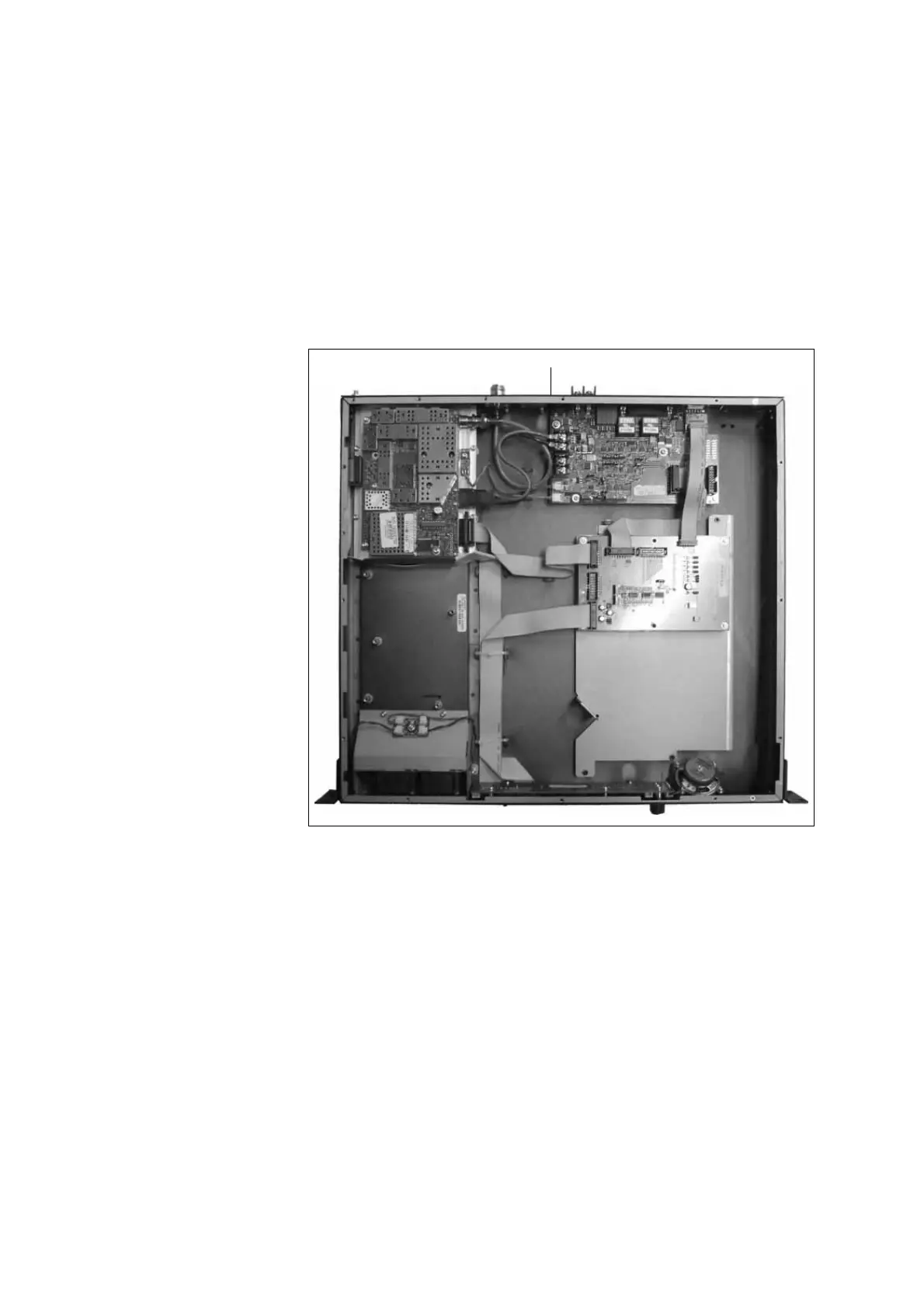

Figure 1.15 Final reassembly
Fuse
