TB9100/P25 CG/P25 TAG Installation and Operation Manual Installation 63
© Tait Limited March 2014
DC Power Cabling
DC power cables should be well supported so that the terminals on the
PMU and on the ends of the cables do not have to support the full weight
of the cables.
Figure 3.7 shows two recommended methods of securing these cables to
prevent straining either set of terminals.
We recommend that you fit the supplied covers to the DC terminals to
protect against accidental shorts.

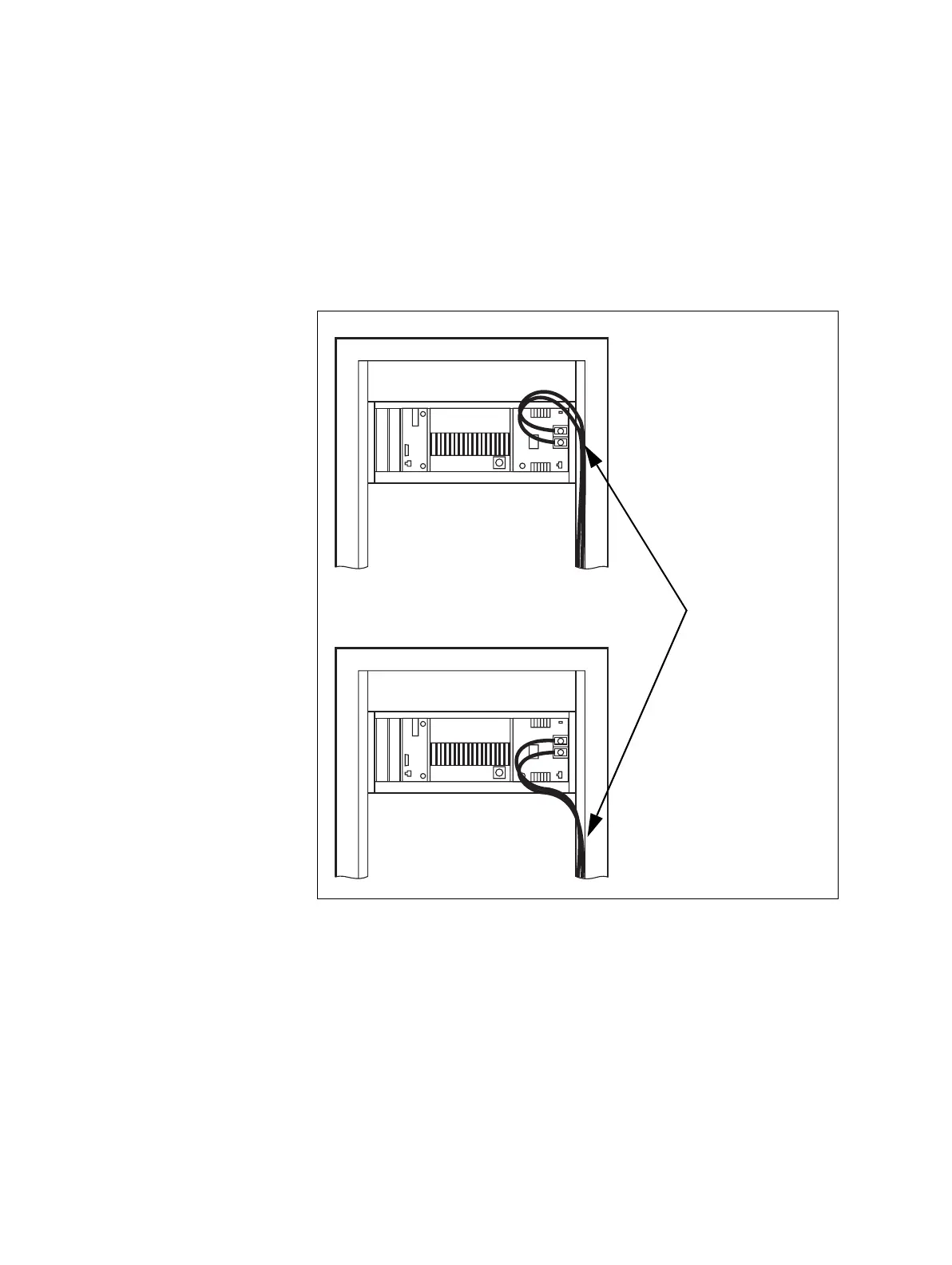

Figure 3.7 DC power cabling
secure the cables to the
cabinet to support their
weight
