TM9400 Specifications Manual General Specifications 25

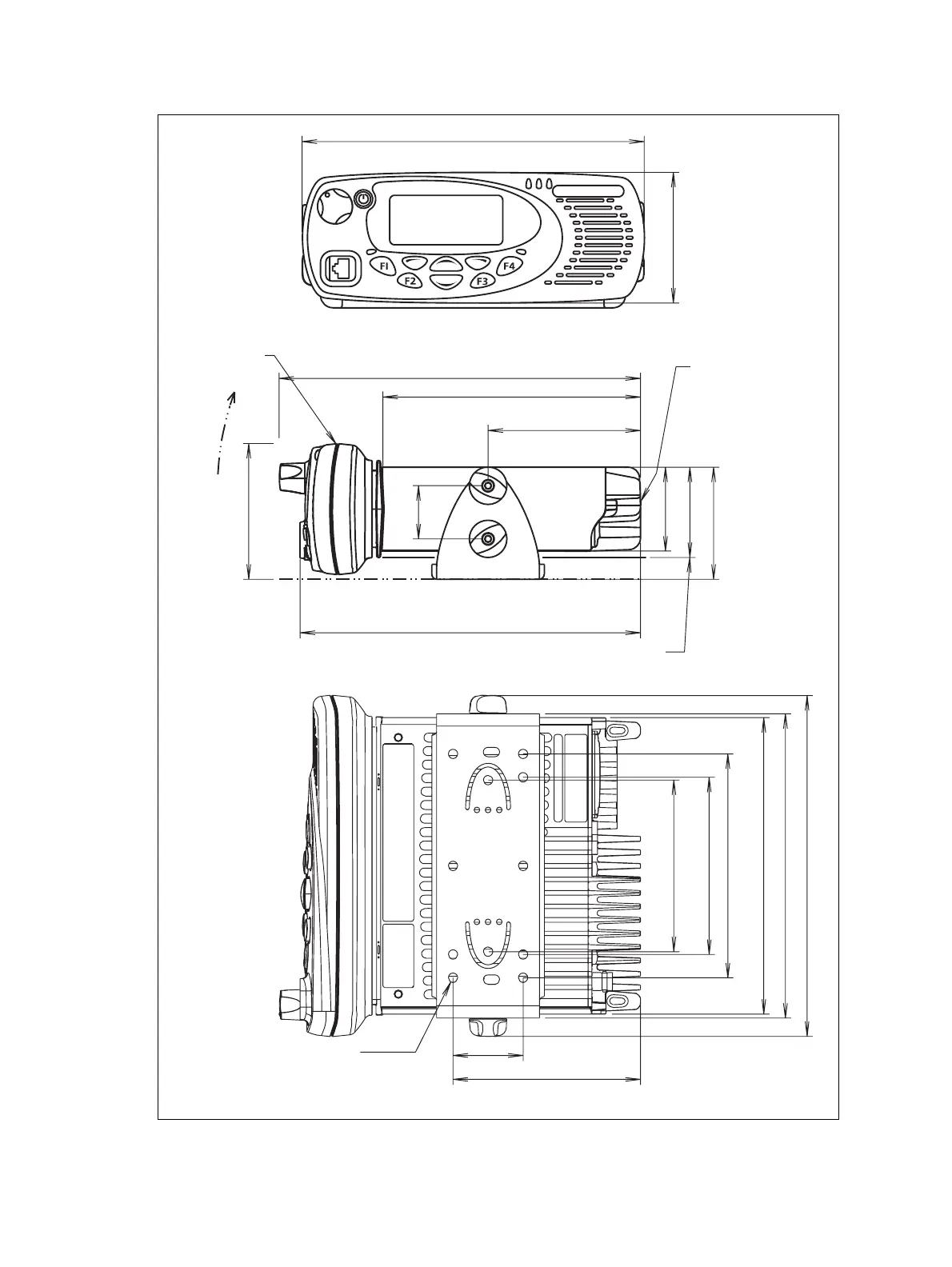

Figure 4.5 Dimensions of U-bracket installation of radio with graphical control head

(25W radio shown)

7.20 in. (184 mm)

2.8 in. (71 mm)

7.64 in. (194 mm) / 8.43 in (214 mm)*

5.42 in. (137.7 mm) / 6.2 in (157.7 mm)*

3.21 in. (81.5 mm)

3.99 in. (101.5 mm)*

1.77 in. (45 mm)

1.12 in. (28.5 mm)

1.90 in. (48.42 mm)

2.36 in. (60 mm)

7.17 in. (182 mm) / 7.95 in (202 mm)*

2.87 in. (73 mm)

Allow space at rear for

cable routing and air

movement around fins

llow clearance around

radio if tilting of radio on

bracket is desired

1.48 in. (37.5 mm)

3.65 in. (100.3 mm) / 4.73 in (120.3 mm)*

(dimension varies when radio is tilted)

0.2 in. (5 mm)

Mobile radios >25 W are

1.90 in. (48.42 mm) thick

*Mobile radios >25 W are

0.79 in. (20 mm) longer

due to a larger heatsink

3.74 in. (95 mm)

3.62 in. (92 mm)

(tabs unbent)

4.72 in. (120 mm)

6.3 in. (160 mm)

6.42 in. (163 mm) (U-bracket width)

7.20 in. (183 mm)

(allow access to thumb screws)
