Takagi T-K3 User Manual

- 16 -
For rooftop terminations
A
A
2ft.
Exhaust
termination
A
ir intake
A
A
A
A
ir intake
Exhaust
termination

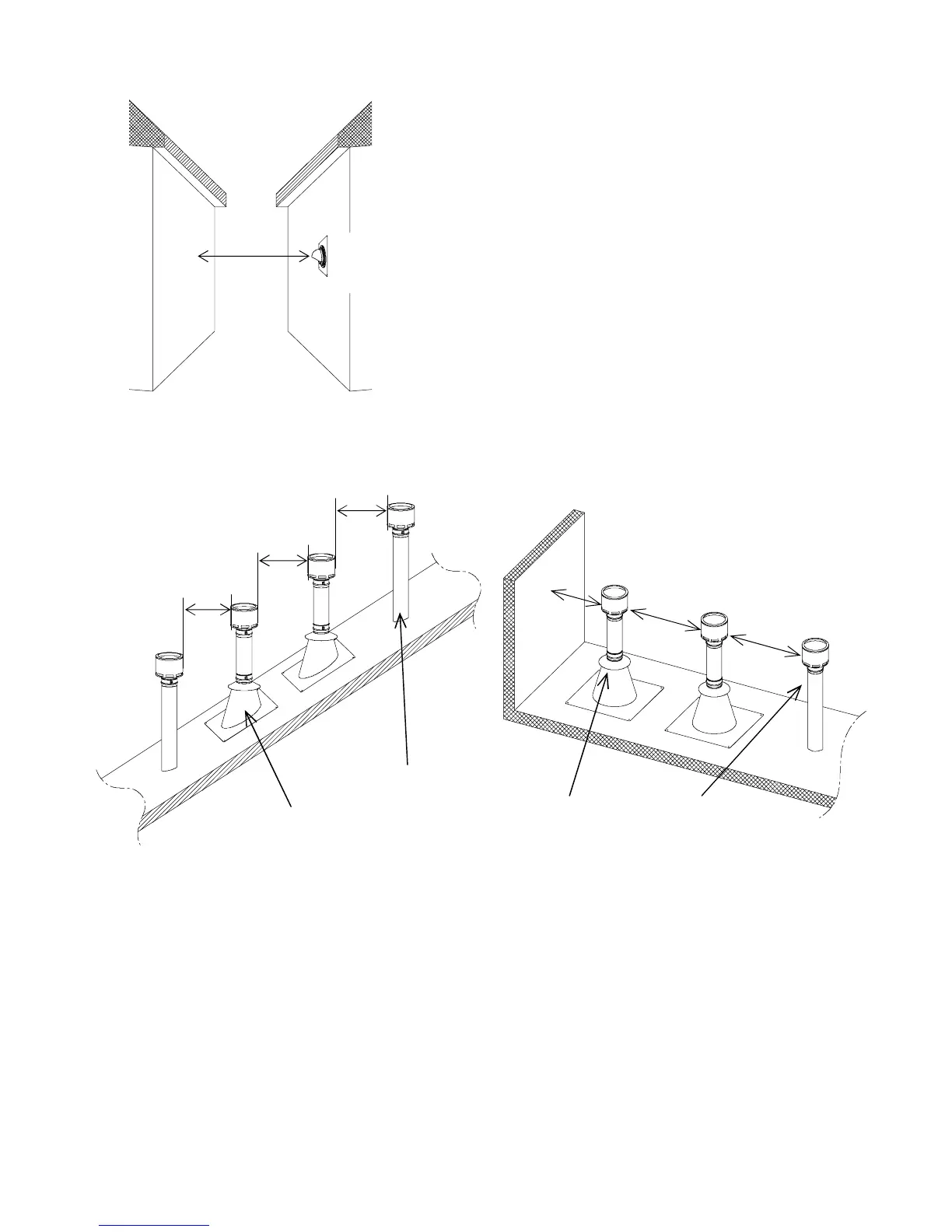

For multiple-unit rooftop terminations (whether for standard indoor or direct-vent
installations) space all exhaust and intake terminations in accordance with local codes.
An exhaust termination must be spaced from a wall or surface in accordance with local
codes as well. In the absence of such a code, an exhaust termination must be a
horizontal distance of at least 2 ft. away from a wall or surface.
2ft.
Exhaust
termination
Exhaust and/or direct-vent
sidewall terminations should be at
least 2 ft. away from an opposite
surface/wall. Do not place the
termination directly in front of an
opening into a building.
A: in accordance with local codes

Takagi T-K3 Specifications

General

Type	Tankless
Installation Type	Indoor
Maximum BTU Input	199, 000 BTU/h
Gas Connection Size	3/4"
Vent Size	3"
Hot Water Flow Rate (at 35°C rise)	6.6 GPM
Maximum Input	199, 000 BTU/h
