Takagi T-K3 User Manual

- 30 -
The dark squares indicate the direction
the dipswitches should be set to.
Temperature settings <Right bank of dipswitches>
The dark squares indicate the direction
the dipswitches should be set to.
TEMPERATURE SETTINGS
• There are 8 preset temperatures that you can select from by changing the dipswitch settings
on the computer board.
• The temperature has been preset at the factory to 122ºF (50ºC).
• If you desire to change the set temperature with dipswitches, please refer to the diagram on
below. These temperatures are available: 104ºF, 113ºF, 122ºF, 131ºF, 140ºF, 158ºF, 176ºF,
and 185ºF.
• 140ºF, 158ºF, 176ºF and 185ºF are for heating applications only.
• If you desire a hot water temperature other than the 8 preset settings, please purchase the
optional temperature remote controller (part No. TM-RE30).
• With this optional TM-RE30 you can set the temperature from 99ºF to 176ºF with various
increments.
• Please read the instructions carefully prior to installing the TM-RE30, as failure to do so
could damage the temperature controller and/or the water heater, which will void the
warranty.
• Turn off the power supply to the heater before changing the dipswitch
settings.
• Only change the switches with the dark squares. The dark squares indicate
which direction the dipswitch should be set to.
• DO NOT set to 185 ºF if you use your T-K3/T-K3-Pro in a recirculation system.
This will cause damage to the heater and void the warranty.
To change dipswitch settings for
temperatures, locate the right
bank of dipswitches the above of
7-seg LED.
DO NOT adjust the left bank of
dipswitches.

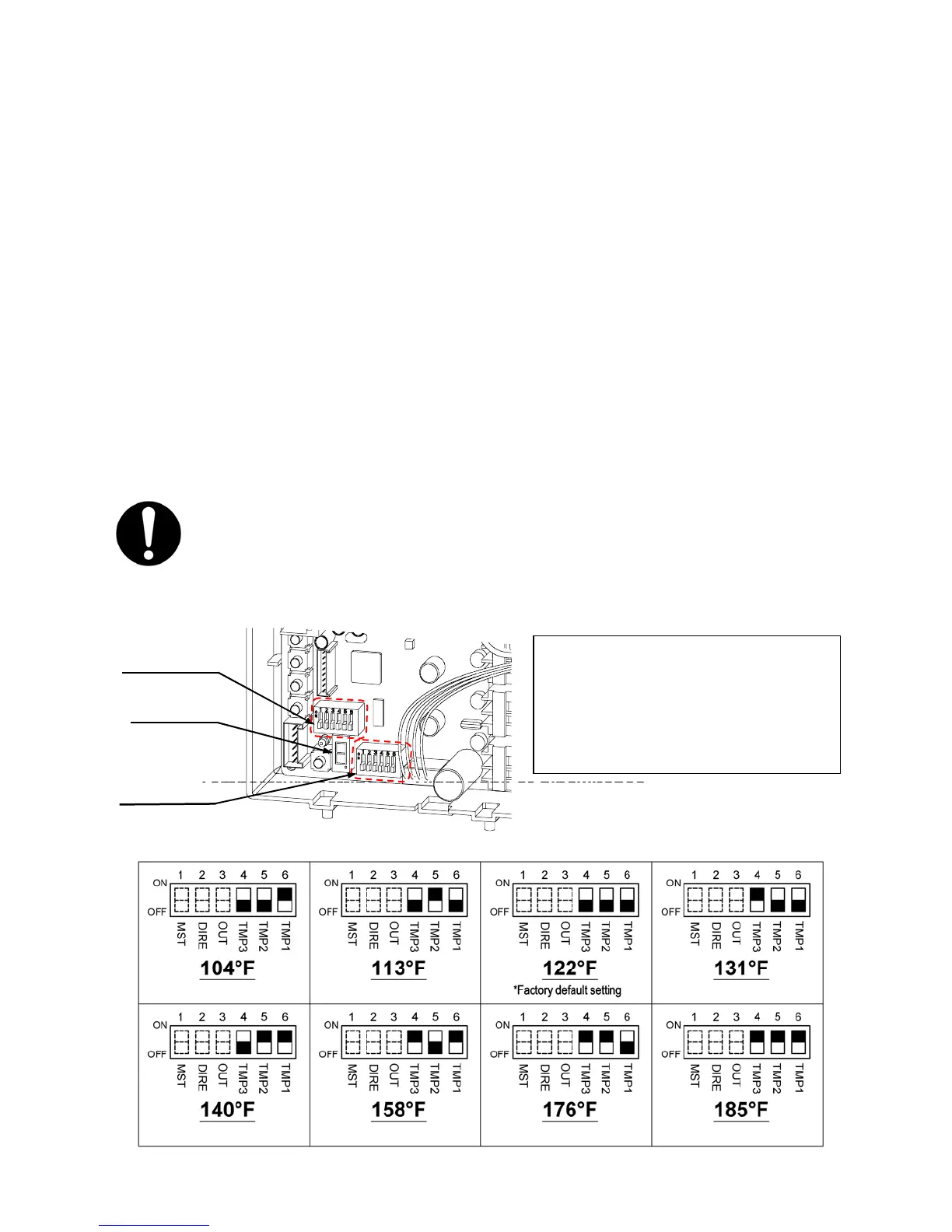

Temperature Settings <Right bank of dipswitches>
7-Seg LED
Right bank of
dipswitches
Left bank of
dipswitches

Takagi T-K3 Specifications

General

Type	Tankless
Installation Type	Indoor
Maximum BTU Input	199, 000 BTU/h
Gas Connection Size	3/4"
Vent Size	3"
Hot Water Flow Rate (at 35°C rise)	6.6 GPM
Maximum Input	199, 000 BTU/h
