Takagi T-K3 User Manual

- 22 -
REMOTE CONTROLLER CONNECTION
1) Disconnect power supply from the T-K3/T-K3-Pro.
2) Take off the T-K3/T-K3-Pro’s front cover.
3) Please find the remote control terminal using the picture below (located around the lower
right-hand side of the computer board).
4) Open the plastic cover of the TM-RE30, and then attach the fork terminal to the connector
base of the backside the TM-RE30 with two screws. Make sure the terminals are firmly fixed.
5) Put the remote wires through the hole on the bottom of the unit casing.
6) Connect the remote wires to the remote controller terminal properly.
(No polarity)
*Do NOT jump or short-circuit wires. Computer will be damaged.
7) Replace Front Cover securely.
8) Wires used for the remote controller connection must be:
• Minimum 18AWG wire (No polarity)
• Maximum 400 feet long

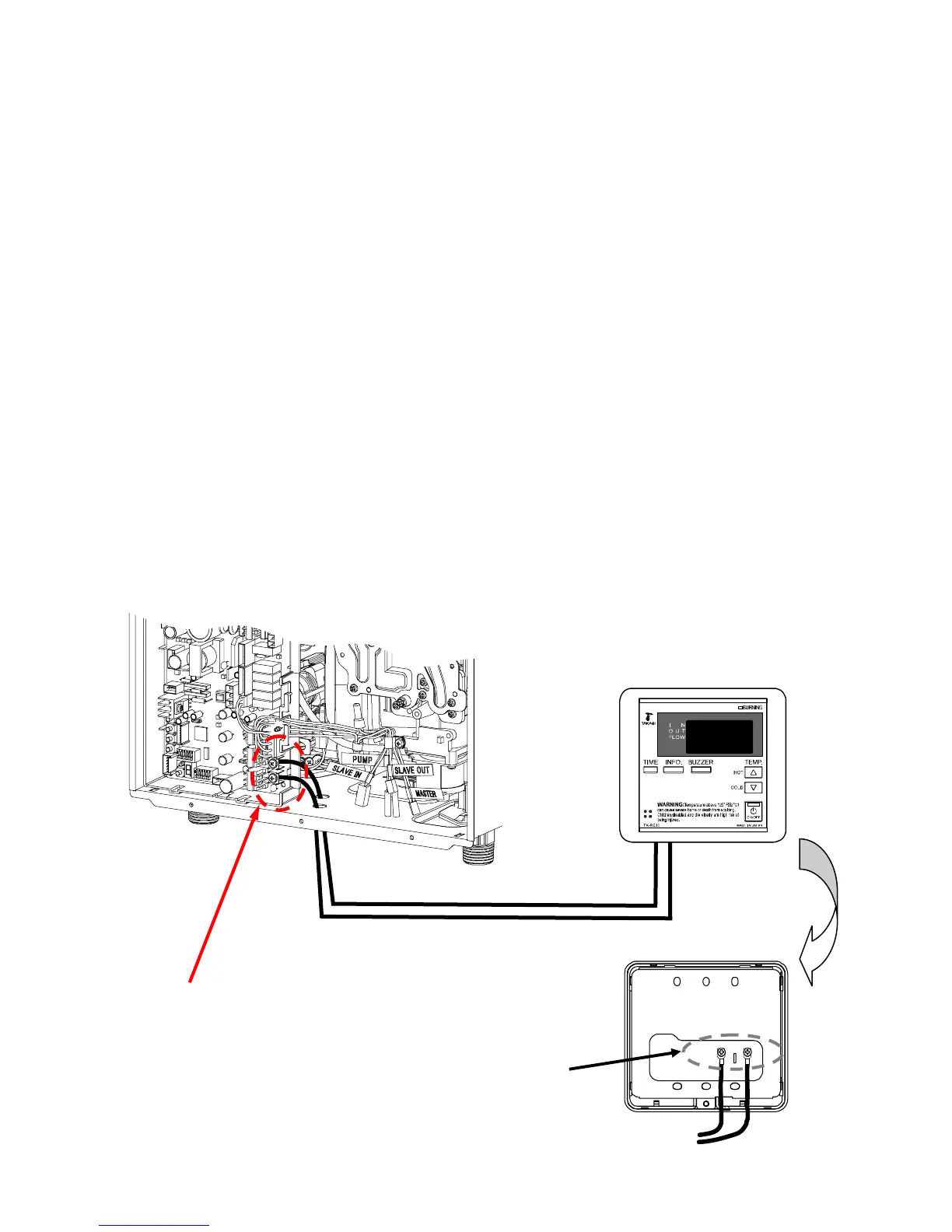

Back of remote
Front of remote
Connect other end to these terminals
Connect to these terminals
Remote controller terminal inside T-K3/T-K3-Pro
*For details on the connection to the TM-RE30, refer to the TM-RE30’s Installation Manual.

Takagi T-K3 Specifications

General

Type	Tankless
Installation Type	Indoor
Maximum BTU Input	199, 000 BTU/h
Gas Connection Size	3/4"
Vent Size	3"
Hot Water Flow Rate (at 35°C rise)	6.6 GPM
Maximum Input	199, 000 BTU/h
